Elo E975195 Touchscreen

The Elo E975195 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 1715L - Elo 1715L 17" LCD Touchscreen Monitor - 5:4 - 25 ms - 17" Class - Resistive - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 800:1 - 280 Nit - Speakers - USB - VGA - Dark Gray - China RoHS, MPR II - 3 Year
  • The SXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 280 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

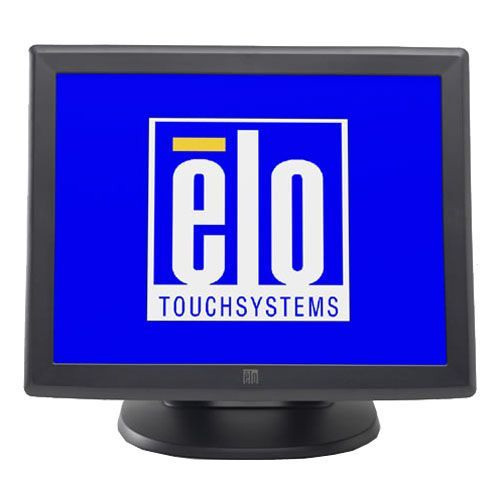

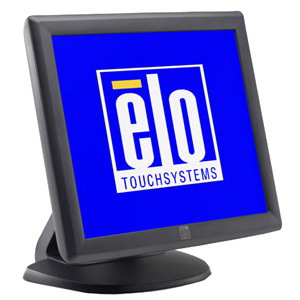

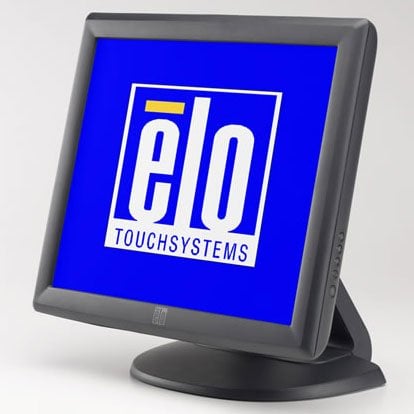

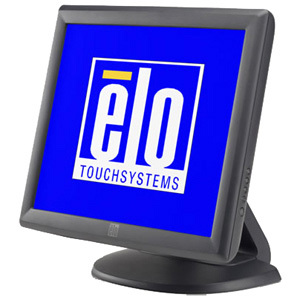

Elo 1715L Touchscreen Model Overview
The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options. The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. The 17-inch touchscreen monitor features AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment. The Elo 1715L 17-inch standard format touchscreen monitor is designed, developed and built to provide a space-saving and cost-effective touch solution. The 17-inch touchscreen monitor can function as a desktop or wall mounted unit and includes a VESA mounting option. The touchscreen is factory-sealed against dirt, dust, and liquids With controls on the side rather than the front, the touchscreen can be locked-out for public use.
Elo E975195 Touchscreen Overview

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
25 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
280 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Dark Gray
Height with Stand:
14.41"
Width with Stand:
15.39"
Depth with Stand:
7.99"
Weight (Approximate):
15.20 lb
Miscellaneous
Package Contents:
  • 1715L 17-inch Desktop Touchmonitor
  • AC Power Cable
  • Touch/Video Cables
Certifications & Standards:
  • UL
  • cUL
  • S
  • FCC
  • CE
  • VCCI
  • IC
  • C-Tick Asia
  • MIC
  • CCC
  • BSMI
Environmentally Friendly:
Yes
Environmental Certification:
  • China RoHS
  • MPR II
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E975195 Touchscreen is also known as E975195
