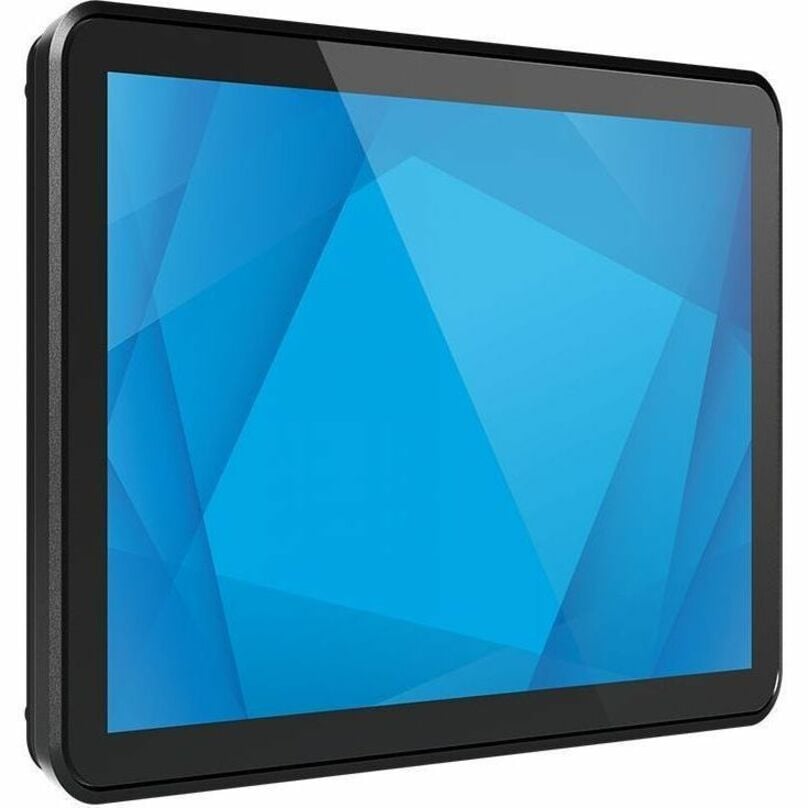

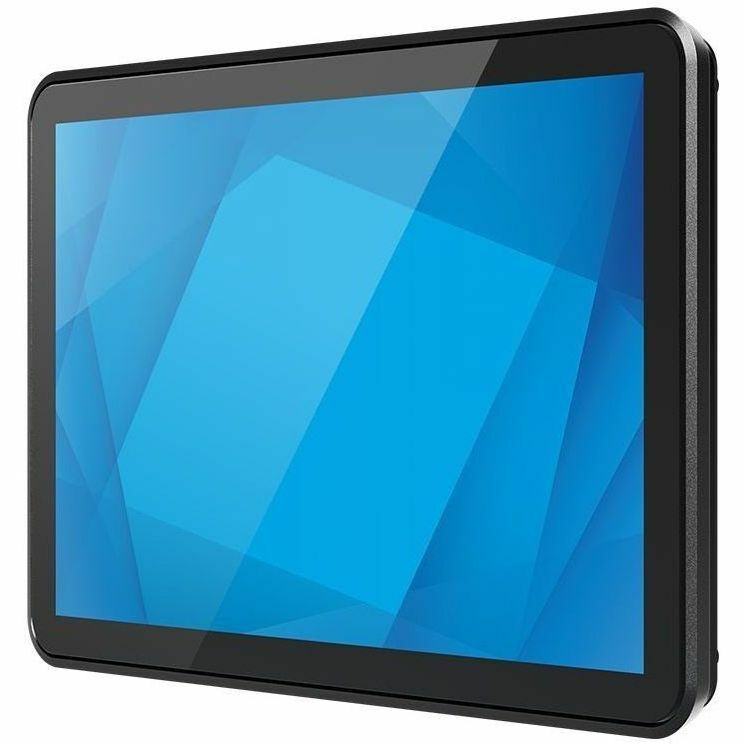

Elo E971060 Touchscreen

Part Number: E971060
Model:
Add to My Shopping List Add to Compare
$435.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
10"
Viewable Screen Size
10.1"
Screen Mode
WXGA
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  Touchscreen Monitors, Elo, 10.1-inch HD Optically bonded LCD (LED Backlight), Open Frame, Projected Capacitive 10 Touch, Zero-Bezel, USB-C, HDMI & Display Port video interface, USB-C touch, Clear, No power brick
Explore all Elo Parts Accessories
Add to Quote
Elo E971060 Touchscreen
Elo E971060 Touchscreen
Elo E971060 Touchscreen
Elo E971060 Touchscreen
Elo E971060 Touchscreen
Elo E971060 Touchscreen Elo E971060 Touchscreen Elo E971060 Touchscreen Elo E971060 Touchscreen Elo E971060 Touchscreen

Elo Parts Accessory Model Overview

Products and parts from ELO.
Elo E971060 Touchscreen Overview

1064L 10-inchIndustrial-Grade Open Frame Touch Display

Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.

Brilliant, optically-bonded TouchPro® PCAP display.

The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.

Navigate the OSD directly on the touchscreen.

We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.

Touch thru glass enabled with PCAP.

For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Designed for easy integration.

Elo's 10-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.

Computing power that scales with a single cable.

With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.

Technical Information
Screen Size Class:
10"
Viewable Screen Size:
10.1"
Screen Mode:
WXGA
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
29 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Flush Mount
  • Bracket-mountable
Backlight Technology:
LED
Features:
  • On-screen Display (OSD)
  • Low Blue Light
  • Landscape/Portrait Viewable
Vertical Frequency:
50 Hz to 75 Hz
Operation Hours:
24 Hours/7 Days
Ingress Protection (IP) Rating:
IPX1
Impact Protection (IK) Rating:
IK08
Active Display Area (H x V):
8.50" x 5.30"
Video
Maximum Resolution:
1280 x 800
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
800:1
Brightness:
450 Nit
Maximum Refresh Rate:
60 Hz
Brightness (Peak):
500 Nit
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
DisplayPort:
Yes
USB Type-C:
Yes
Environmental Conditions
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Operating Humidity Range:
20% to 80% (Non-condensing)
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
  • 75 x 75
  • 100 x 100
Color Family:
Black
Product Color:
Black
Height:
6.3"
Width:
9.5"
Depth:
1.3"
Weight (Approximate):
2.75 lb
Miscellaneous
Energy Star:
Yes
Application/Usage:
  • Industrial
  • Commercial
Item Numbers
GTIN: 0843173155692
UPC: 843173155692
EAN: 0843173155692
UNSPSC: 43211903

Frequently Asked Questions

The Elo E971060 features a 10.1-inch HD optically bonded LCD display with LED backlighting. This compact size makes it ideal for space-constrained retail, hospitality, and warehouse environments where a reliable touchscreen interface is needed.

The Elo E971060 is equipped with Projected Capacitive 10 Touch technology, which provides responsive multi-touch capability and excellent durability for high-traffic applications. This technology is designed to handle frequent user interaction in demanding commercial environments.

The Elo E971060 offers multiple connectivity options including HDMI, Display Port, and USB-C for video input. Touch data is transmitted via USB-C, providing a single modern connection standard for both video and touch functionality. This flexibility allows easy integration into various system configurations available from us.

Yes, the Elo E971060 is designed as an open frame touchscreen, making it ideal for integration into custom kiosks, self-service terminals, and embedded applications. The zero-bezel design provides a seamless, professional appearance for customer-facing installations.

The Elo E971060 is supplied without a power brick, allowing flexibility in power supply integration based on your specific installation requirements. Contact us today to discuss power supply options that work best for your deployment.

The Elo E971060 is well-suited for retail point-of-sale systems, warehouse management interfaces, logistics terminals, and self-service kiosks where a compact, durable touchscreen is required. Its optically bonded LCD construction and projected capacitive touch technology ensure reliable performance in busy commercial and industrial settings. Visit barcodesinc.com to explore how this touchscreen can enhance your operation.

The Elo E971060 Touchscreen is also known as ELO-E971060 or E971060.
