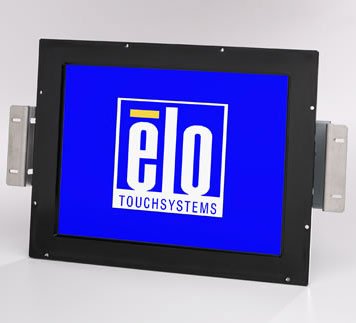

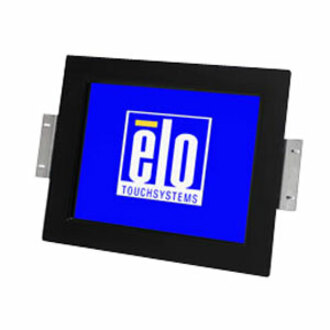

Elo E958504 Touchscreen

Part Number: E958504
Model: Entuitive 1547L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

  Elo 3000 Series 1567L/IP65 Touchscreen LCD Monitor - 15" - Surface Acoustic Wave - 1024 x 768 - 4:3 - Black
Explore all Elo Entuitive 1547L Touchscreens
Add to Quote
Elo E958504 Touchscreen
Elo E958504 Touchscreen
Elo E958504 Touchscreen
Elo E958504 Touchscreen Elo E958504 Touchscreen Elo E958504 Touchscreen
Full specifications (PDF)

Elo Entuitive 1547L Touchscreen Model Overview

The Elo Entuitive 1547L ThruTouch model is optimized to operate through customer supplied non-metallic materials, such as a store window or vandal-resistant materials up to 18 mm thick. This allows the Entuitive 1547L to have unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications. Oversized glass may also be used to create a true flat front surface, eliminating the recessed touch surface and bezel typically found in other systems, which can create a trap for dirt and liquids. This makes the Elo Entuitive 1547L ideal for ticketing machines and other outdoor systems as well as tabletop and bartop applications. Furthermore, the sensing technology is unaffected by moisture, heat, rain, snow and ice, operates even with gloves, and is completely unaffected by spills and dirt or harsh cleaning fluids.
Elo E958504 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The monitor features an IP65 watertight seal, plus a multitude of mounting options.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Aspect Ratio:
4:3
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
450:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Physical Characteristics
Product Color:
Black
Height:
11.7"
Width:
15"
Weight (Approximate):
10.85 lb
Miscellaneous
Platform Supported:
  • PC
  • Sun
  • Mac
Item Numbers
UNSPSC: 43211903
