Elo E945445 Touchscreen

Elo E326541 Touchscreen A newer version of this item is available.
It is replaced by the Elo E326541 Touchscreen.
Elo 1939L - Elo 1939L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 14 ms - 19" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - Black - RoHS, WEEE, China RoHS - 3 Year
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Elo 1939L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E945445 Touchscreen
Elo E945445 Touchscreen Elo E945445 Touchscreen
Elo E945445 Touchscreen
Elo E945445 Touchscreen
Full specifications (PDF)

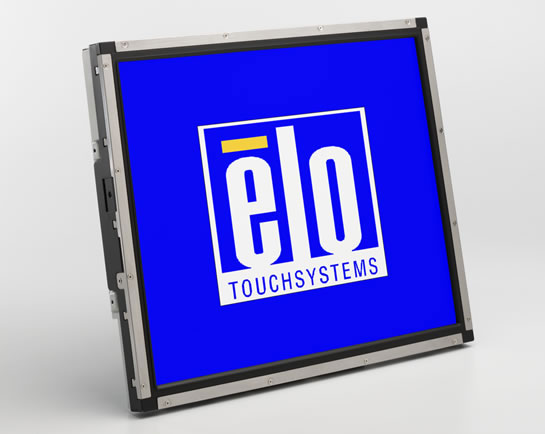

Elo 1939L Touchscreen Model Overview
The only thing more impressive than the screen is the price! Featuring a vibrant 19" monitor, the ELO 1939L delivers outstanding performance to any application. The 1939L has a streamlined profile and durable construction, making it the best bet for your touchscreen needs.
Elo E945445 Touchscreen Overview

Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1939L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal.

Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
14 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Bracket-mountable
Backlight Technology:
LED
Horizontal Frequency:
80 kHz
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
12 V DC
Operating Power Consumption:
38 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
13.5"
Width:
16.3"
Depth:
2"
Weight (Approximate):
11.50 lb
Miscellaneous
Package Contents:
  • 1939L Open Frame Touchscreen LCD Monitor
  • Detachable Touch Cable
  • Video Cable
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149316903, 0818211975877, 5711045301698, 7411493169038
UPC: 741149316903, 818211975877
EAN: 0741149316903, 0818211975877, 5711045301698, 7411493169038
UNSPSC: 43211903
