Full specifications (PDF)
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0
Elo E945259 POS System
Part Number:
E945259
Model:
EloPOS Pack
Elo EloPOS Pack POS System Model Overview
Delivering a powerful enterprise-ready compute platform in a sleek, compact form factor the EloPOS Pack is backed by the security and infrastructure of a Windows-based system with Intel's Q370 Chipset and the speed of Intel's 8th gen processors; the EloPOS Pack provides the power you need to run your business. Designed with versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. Provide the flexibility to make upgrades as your business requirements change.

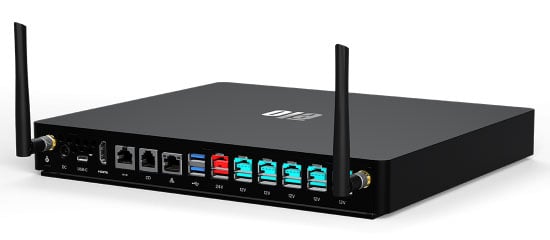

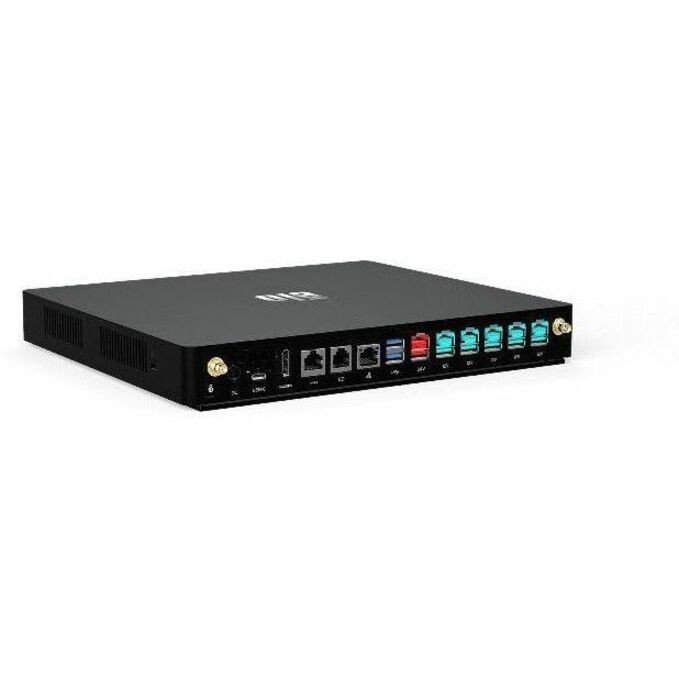

Elo E945259 POS System Overview
EloPOS Pack
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel's Q370 Chipset and the speed of the Intel's 9th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.
Designed for Versatility
From point-of-sale terminals and self-service kiosks to automation controls, the EloPOS Pack offers the connectivity and durability to thrive under the demands of continuous use.
Small Footprint
Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.
Securely Mount
Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.
Connect It All
With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices - there is a port to connect it all.
Leverage the Best of Intel
Create a network with the security, performance and manageability you need for your business.
The EloPOS Pack includes*:
Windows or Linux. You Choose.
Whether you want Windows 10 or a no-OS model to run Linux, the enterprise-ready EloPOS Pack provides the freedom to adapt to your infrastructure. To get you up and running quicker, the no-OS models have been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Get Peace of Mind With EloCareSM
EloCare provides service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Unite Your Digital Touchpoints
From your POS Terminals and self-service kiosks to your back-of-house systems,
Elo has a solution for every touchpoint.
Technical Information
Processor & Chipset
Processor Type:
Core i5
Processor Speed:
3.60 GHz
Memory
Standard Memory:
8 GB
Memory Technology:
DDR4 SDRAM
Storage
Solid State Drive Capacity:
512 GB
Solid State Drive Interface:
M.2/SATA
Display & Graphics
Graphics Controller Model:
UHD Graphics 630
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
RJ-50:
Yes
Number of USB 3.0 Ports:
2
Number of USB 3.0 Ports (Rear):
2
Power Description
Power Source:
- AC Power
- DC Power
Physical Characteristics
Color Family:
Black
Product Color:
Black
Weight (Approximate):
5.76 lb
Miscellaneous
Package Contents:
- EloPOS Pack POS Terminal
- North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
- EU Power Cord (1800+/-50mm)
- Power Adapter - 180W
- Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch)
- USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
- HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
- USB cable (1800+/-50mm), (6 ft +/- 1 inch)
- 2x SMA Antenna
- Quick Installation Guide (QIG)
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0843173141589
UPC:
843173141589
EAN:
0843173141589
UNSPSC:
43211505
Frequently Asked Questions
What operating system options are available for the Elo E945259 POS System?
The Elo E945259 is available in both Windows 10 and no-OS models to match your infrastructure needs. The no-OS models have been pretested with Linux distributions including SuSE, Ubuntu, and Red Hat, giving you the flexibility to deploy the operating system that works best for your business.
What are the key processor and memory specifications of the EloPOS Pack?
The Elo E945259 features an Intel Core i5-9500TE processor backed by an Intel Q370 Express Chipset, paired with 8GB of RAM and a 512GB SSD for reliable performance in retail and enterprise environments. This combination delivers the compute power needed to run demanding POS applications efficiently.
What connectivity options does the Elo E945259 POS System support?
The EloPOS Pack offers versatile connectivity including Wi-Fi/5GHz, Bluetooth, and multiple wired ports via USB-C, HDMI, USB, and RJ-50 to DB-9 cables. This flexibility allows you to connect modern peripherals like Elo monitors through a single USB-C cable or legacy devices requiring 12V powered-USB connections.
Can I connect legacy POS peripherals to the Elo E945259?
Yes, the Elo E945259 is designed for backward compatibility with legacy equipment. The system includes 12V powered-USB connectivity and RJ-50 to DB-9 cables in the box, enabling you to integrate older printers and peripherals without requiring expensive upgrades.
What is included in the box with the Elo E945259?
The EloPOS Pack ships with power cords, USB Type-C/HDMI/USB/RJ-50 to DB-9 cables, and 2x SMA antennas to support wireless connectivity. This comprehensive accessory set gets your system ready to deploy quickly without additional cable purchases.
What warranty coverage does the Elo E945259 POS System include?
The Elo E945259 comes with a 3-year warranty, providing extended protection and peace of mind for your enterprise POS investment. Contact us today to learn more about warranty options and support services available from Barcodes Inc.
The Elo E945259 POS System is also known as
ELO-E945259
or E945259.
