Elo E872193 Touchscreen

The Elo E872193 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Elo 1919LM - Elo 1919LM 19" LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Surface Acoustic Wave - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 300 Nit - Speakers - DVI - USB - VGA - White - RoHS, WEEE - 3 Year

The WXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
Furnishes captivating visuals with about 300 Nit brightness levels
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 1919LM Touchscreens

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

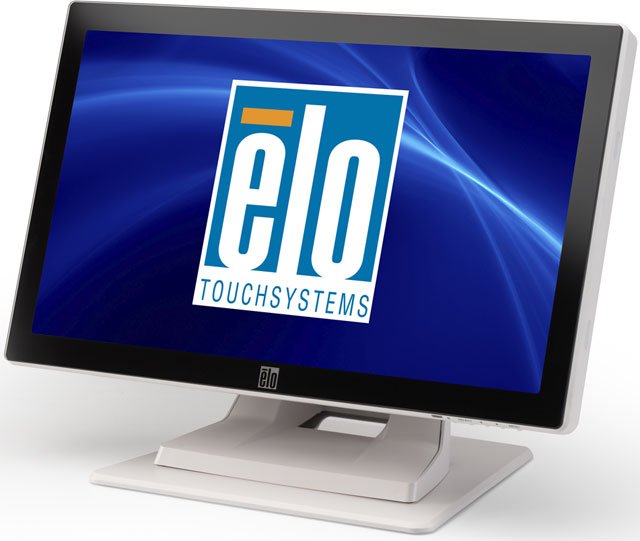

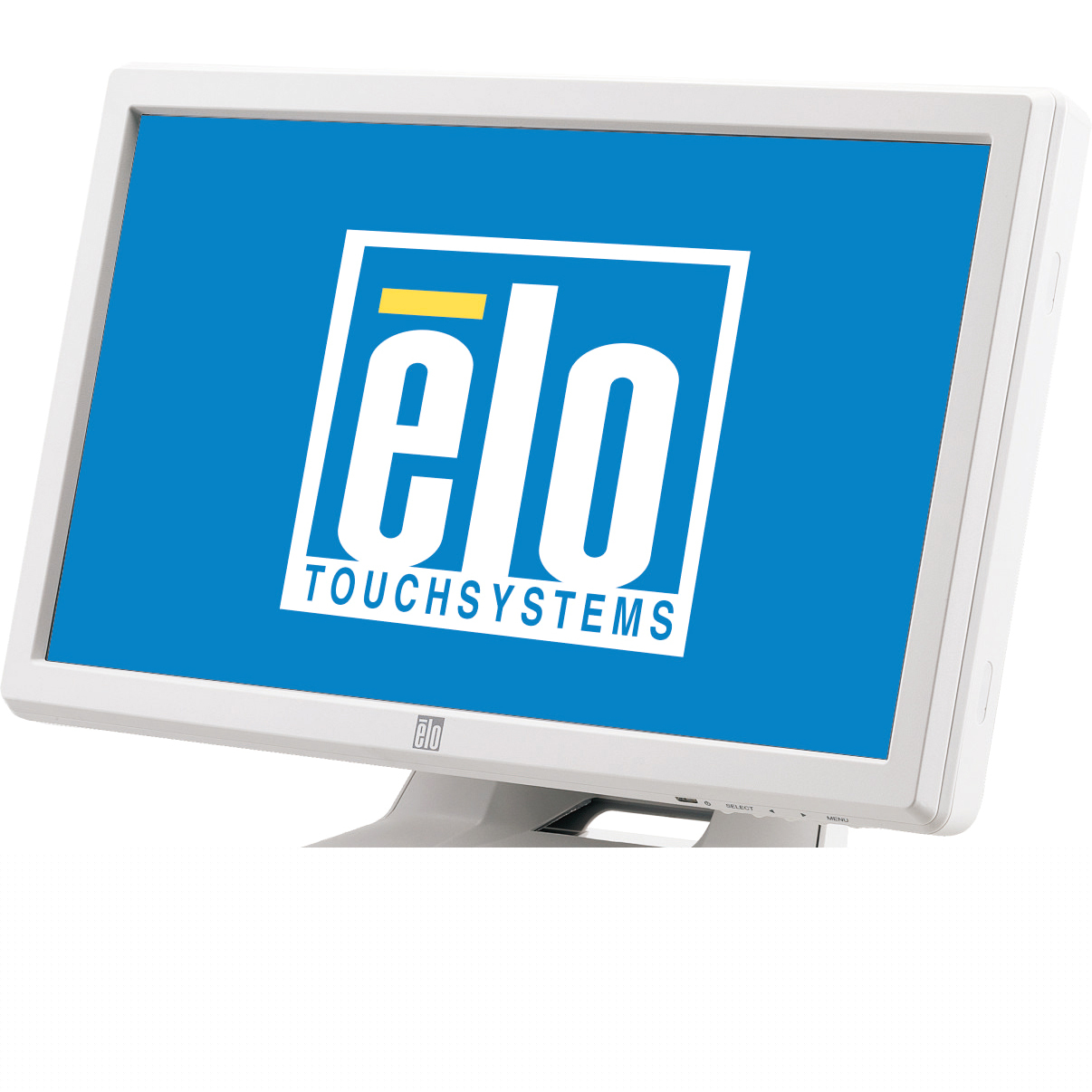

Elo 1919LM Touchscreen Model Overview

The ELO 1919LM 19" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

Elo E872193 Touchscreen Overview

The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

WXGA

Response Time:

5 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

160°

Adjustable Display Angle:

Yes

Video

Maximum Resolution:

1366 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

300 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Headphone:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V DC

Operating Power Consumption:

21.80 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

White

Height:

12.2"

Width:

13.8"

Depth:

6.9"

Weight (Approximate):

15.21 lb

Miscellaneous

Package Contents:

1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings
CD and Quick Install Guide
Touch and Video Cables
DC Power Adapter
USB Cable
Power Cable
Audio Cable
VGA Cable
DVI Cable

Certifications & Standards:

FCC 18 Subpart B
CUL
CSA
UL
C-tick
NOM
ICES-003
IEC/EN
S-mark
CE
IC
VCCI
CSA
CISPR 11

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493317606

EAN: 7411493317606

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E872193 Touchscreen is also known as ELO-E872193 or E872193.
