Full specifications (PDF)
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0
Elo E863808 POS System
Part Number:
E863808
Model:
Pay 7"

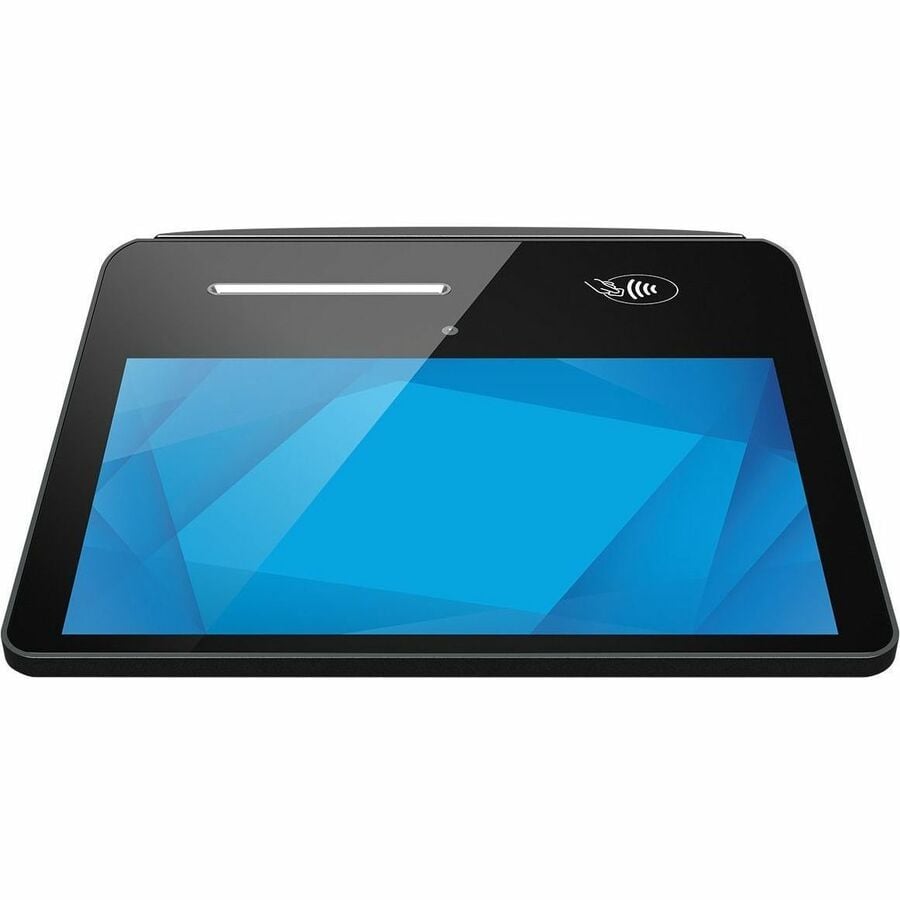

Elo Pay 7" POS System Model Overview
The Elo Pay 7-inch Integrated Payment POS System is designed for merchants seeking a compact, enterprise-grade terminal without compromising on performance or versatility. Boasting a vibrant 7-inch HD touch display and powered by a Qualcomm Snapdragon 660 processor, it efficiently supports all payment methods, including EMV, NFC, and pin-on-glass. Its modular design allows for flexible mounting options, making it suitable for various retail environments. With seamless management through EloView, merchants can effortlessly deploy content and maintain settings, ensuring a streamlined transaction experience for both customers and staff.
Key Features
- Compact 7-inch HD Touch Display for clear visibility
- Integrated Payment Options support all payment types
- Modular Design with flexible mounting configurations
- Powered by Android 12 for enhanced functionality
- Enterprise-Grade Support with security updates and management tools
Specifications
- Diagonal Size: 7"
- Resolution: 1920 x 1080
- Brightness: 400 nits
- Operating System: Android 12
- Processor: Qualcomm Snapdragon 660, 2.2GHz Octa-Core
- Memory: 4GB
- Storage: 64GB (expandable via MicroSD)
- Wireless: 802.11a/b/g/n/ac, Bluetooth 5.0
- Dimensions: 6.9" x 6.6" x 1.7"
- Weight: 1.4 lbs
- Operating Temperature: 32°F to 104°F
- Warranty: 2 years standard
Elo E863808 POS System Overview
The integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and Qualcomm SD660 processor.
Dock it to the printer stand.
Place it on the counter.

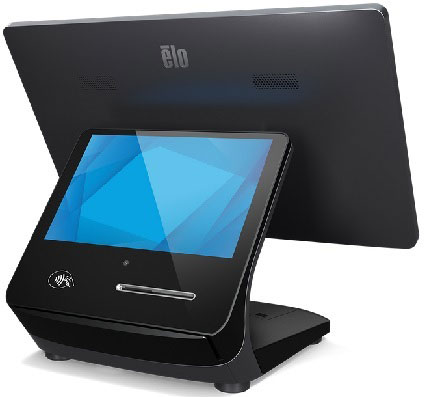

Integrate it to the Z70 stand.
Enjoy the convenience
of integrated payment.
Dip. Tap. Swipe.
Whether your customers have a physical card or
contactless via their mobile phone, the Elo Pay 7"
POS terminal accepts all forms of payment.
EMV -Insert cards with chips.
NFC -Tap with contactless payments.
MSR -Swipe cards with mag stripes.
Pin on Glass -Enter your pin directly on the screen
Unified Hardware.Unified Payment.
Elo Pay terminals leverage one payment kernel to
simplify the payment process, increase security,
and improve the user experience.
Elo Pay delivers fast, secureand scalable payment services.
Elo Pay offers comprehensive payment services that enables
merchants to process transactions with confidence. With access to
multiple payment applications, end-to-end encryption, secure
tokenization, robust terminal management services (TMS) and
easy to use APIs for quick integration, merchants can get started
quickly and securely.
Manage your deviceseasily with EloView.®
EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.
Get enterprise supportwith Elo EssentialEdge.™
With easy-to-use development kits, robust management
tools, world class life cycle management and security, Elo
can help you deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.
OS 360 -Take advantage of monthly security updates to
keep your devices secure.
Seamless Provisioning -Leverage EloView or Google
Zero Touch to easily set up your device.
Elo OEMConfig -Get Elo's proprietary APIs on your
preferredAndroid MDMplatform, saving months of
effort as new releases become available.
Technical Information
Processor & Chipset
Processor Type:
Snapdragon
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.20 GHz
Processor Model:
SD660
Memory
Standard Memory:
4 GB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Storage
Flash Memory Capacity:
64 GB
Flash Memory Type:
Embedded MultiMediaCard (e.MMC)
Display & Graphics
Screen Size:
7"
Display Screen Type:
LCD
Screen Mode:
HD
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touch Points:
10
Contrast Ratio:
1,000:1
Network & Communication
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Number of USB Type C Ports:
1
Built-in Devices
Number of Speakers:
1
Speaker Power:
1 W
Magnetic Stripe Reader:
Yes
Software
Operating System:
Android 12
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
6.6"
Width:
6.9"
Depth:
1.7"
Weight (Approximate):
1.40 lb
Miscellaneous
Ingress Protection (IP) Rating:
IP54
Item Numbers
GTIN:
0843173155272
UPC:
843173155272
EAN:
0843173155272
Recommended Accessories
Category
- Pos Workstation Accessories (3)
Recommended Accessories for Model: Elo E863808 POS System
Top Pos Workstation Accessories Purchased With Elo E863808
-
Elo E815044 POS SuppliesPOS Supplies, Elo Pay 7", Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-CIn Stock$334.76 -
Elo E815235 POS SuppliesPOS Supplies, Elo Pay 7", Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V)Item on backorder — chat for lead time$526.31 -
Elo E220684 POS SuppliesPOS Supplies, Elo Pay 7", VESA Mount KitItem on backorder — chat for lead time$39.10
Frequently Asked Questions
What payment methods does the Elo E863808 POS System support?
The Elo Pay 7-inch POS system supports all major payment forms including EMV, NFC, MSR, and pin-on-glass technology. This comprehensive payment support ensures your business can accept payments from virtually any customer, making it a versatile solution for modern retail and hospitality environments. We offer this system to help streamline your payment processing capabilities.
Can the Elo E863808 be integrated with existing POS infrastructure?
Yes, the Elo Pay 7-inch system is built on a common kernel that allows a single integration to provide access to Elo's entire payment terminal lineup. This modular design means you can deploy it alongside your existing systems with simplified integration, and manage it seamlessly through EloView or your preferred management tools. Contact us today to discuss integration options for your specific setup.
What are the mounting and placement options for this POS terminal?
The Elo E863808 offers flexible mounting configurations to suit different retail environments. You can place it on the counter, mount it on a printer stand, or integrate it on the back of the Z70 POS Stand, giving you the flexibility to optimize your point-of-sale layout. This modularity makes it suitable for various merchant types and store layouts.
What operating system and processor does the Elo Pay 7-inch use?
The Elo E863808 runs Android 12 with GMS and is powered by a Qualcomm SD660 Octa-Core processor paired with 4GB RAM and 64GB Flash storage. This combination provides the performance and flexibility needed for modern POS applications and payment processing in enterprise retail environments.
How is the Elo E863808 managed and maintained?
The system includes enterprise-grade support features such as security updates, seamless provisioning, Elo Home, and OEMConfig capabilities. Device management is simplified through EloView, which allows you to deploy content, manage settings, and maintain the operating system across your terminal fleet. Visit barcodesinc.com to learn more about our support and management solutions.
What display specifications does the Elo Pay 7-inch POS System offer?
The Elo E863808 features a 7-inch HD touch display with 1920 x 1080 resolution, providing clear visibility and responsive touch interaction for both customers and employees. The HD display ensures sharp text and graphics for menu items, payment prompts, and promotional content in retail and hospitality settings.
