Elo E857644 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E109990 Touchscreen.

Elo 2400LM - Elo 2400LM 24" LCD Touchscreen Monitor - 16:10 - 5 ms - 24" Class - Surface Acoustic Wave - 1920 x 1200 - WUXGA - 16.7 Million Colors - 1,000:1 - 300 Nit - Speakers - DVI - USB - VGA - White - WEEE, RoHS - 3 Year

The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
Enjoy crisp content and energetic hues with the 300 Nit brightness
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 2400LM Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

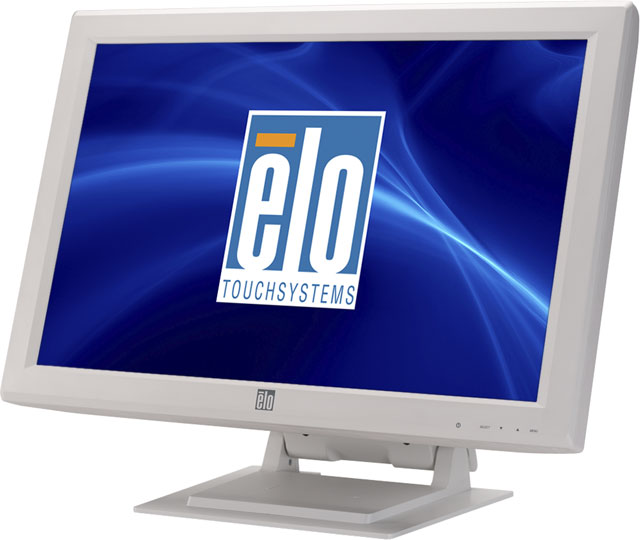

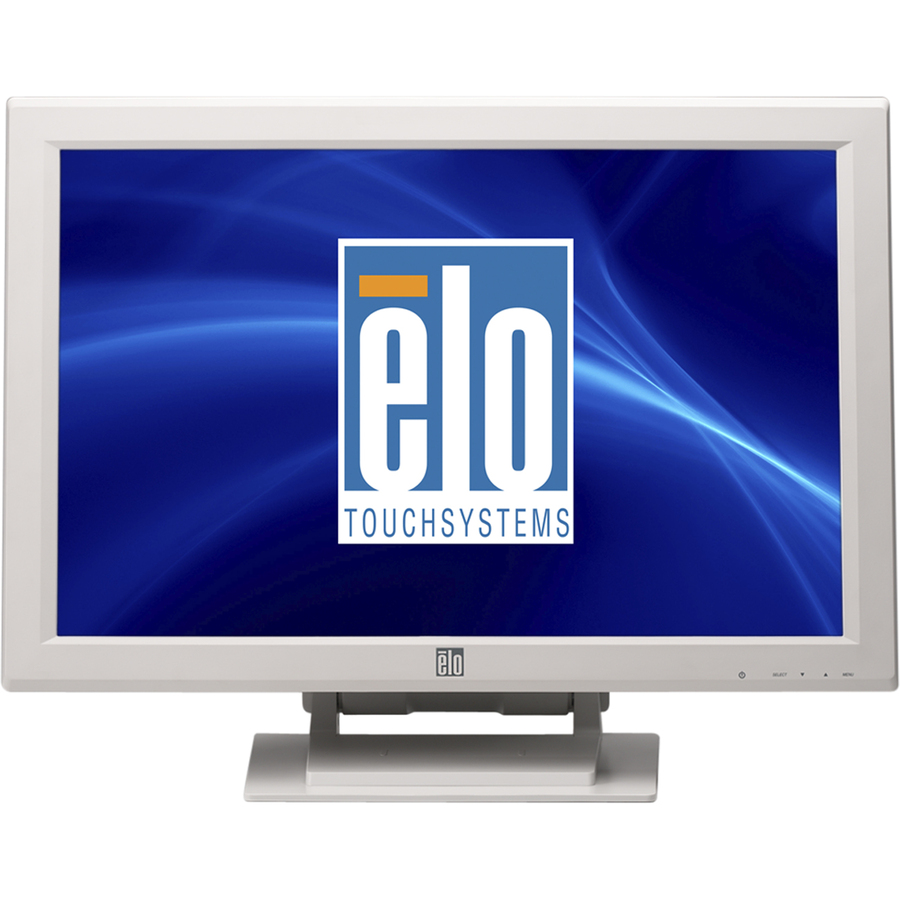

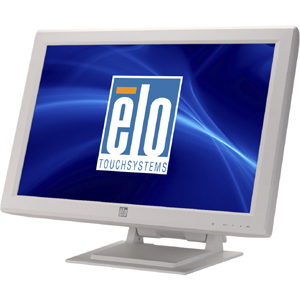

Elo 2400LM Touchscreen Model Overview

The ELO 2400LM 24" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

Elo E857644 Touchscreen Overview

The fully featured 2400LM touch monitor offers best-in-class optical performance mated to leading touch technologies - IntelliTouch surface acoustic wave and AccuTouch five-wire resistive-in addition to a combination touch controller, DVI, VGA and built-in speakers.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

24"

Viewable Screen Size:

24"

Screen Mode:

WUXGA

Screen Surface:

Anti-glare

Response Time:

5 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

160°

Mount Type:

Wall Mountable

Features:

Security Lock

Horizontal Frequency:

75 kHz

Video

Maximum Resolution:

1920 x 1200

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

300 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

50 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

White

Height:

15.7"

Width:

23.3"

Depth:

2.8"

Height with Stand:

17.71"

Width with Stand:

23.32"

Depth with Stand:

9.17"

Weight (Approximate):

21.50 lb

Weight with Stand (Approximate):

27.80 lb

Miscellaneous

Package Contents:

2400LM Touchscreen LCD Monitor
Power Cable
Stand
Touch/Video Cables

Certifications & Standards:

CB
CCC
UL/cUL
FCC
CE
VCCI
C-Tick (Class B)
IPX1
IEC60601-1-2
IMERC
CE
EN 60950-1
EN 60601-1
EN 55011
EN 55024
EN 6100-3-3
EN 60601-1-2

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493224546

EAN: 7411493224546

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E857644 Touchscreen is also known as ELO-E857644 or E857644.
