Elo E841203 Touchscreen

Elo E561836 Digital Signage Display A newer version of this item is available.
It is replaced by the Elo E561836 Digital Signage Display.
Elo 4200L - Elo 4200L 42" LCD Touchscreen Monitor - 16:9 - 6.50 ms - 42" Class - Surface Acoustic Wave - 1920 x 1080 - Full HD - 16.7 Million Colors - 3,500:1 - 700 Nit - Speakers - HDMI - USB - VGA - 3 Year
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • View your content easily in well-lit areas with 700 Nit brightness
  • HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
Read More
Discontinued See Replacement
Add to Quote

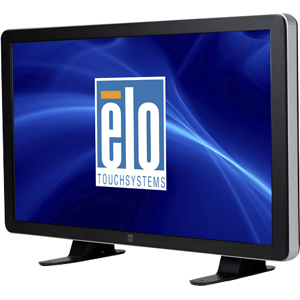

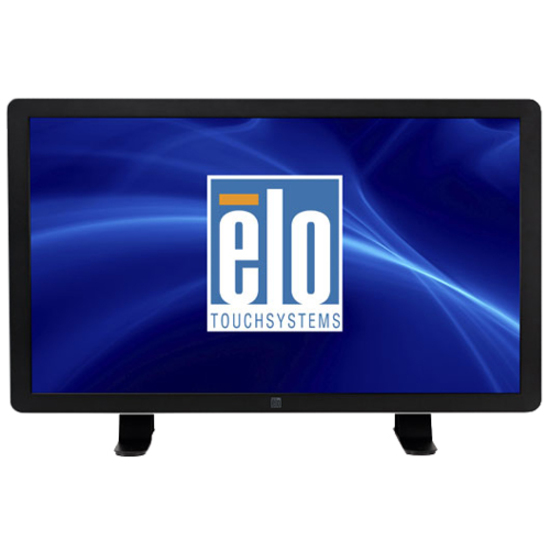

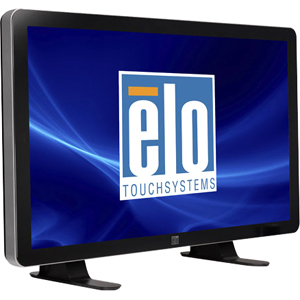

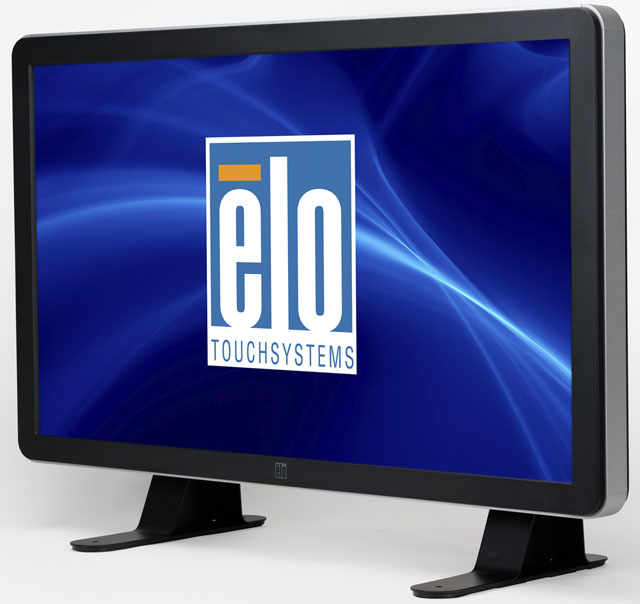

Elo 4200L Touchscreen Model Overview
The ELO 4200L 42 inch Interactive Digital Signage (IDS) touch display is more than a television and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The 4200L's large-format, professional display is not only attractive, but rugged enough to withstand the constant use inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer televisions or displays, the ELO 4200L offers a long life and a rich digital signage experience.
Elo E841203 Touchscreen Overview

The 4200L offers a unique interactive display designed to enhance the touch experience. The 42-inch interactive, large-format display features a choice of industry-leading touch technologies that optimizes the touch experience for a particular usage. For a seamless, zero bezel design, the innovative Acoustic Pulse Recognition (APR) touch technology delivers an elegant appearance and a responsive touch experience. Zero-bezel APR technology from Tyco Electronics recognizes touch on virtually the entire display surface, offering a full-screen interface for navigation regardless of how the display is touched-finger, prosthetic, stylus, card or pen. For a sensitive, accurate touch response, IntelliTouch surface wave product technology utilizes pure-glass construction to deliver excellent imagery with high light transmissions, not affected by changes in ambient light, and supports finger, gloved hand and soft stylus activation.

Technical Information
Screen Size Class:
42"
Viewable Screen Size:
42"
Screen Mode:
Full HD
Response Time:
6.50 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
HDCP Supported:
Yes
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
3,500:1
Brightness:
700 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Headphone:
Yes
Power Description
Input Voltage:
  • 220 V AC
  • 110 V AC
Operating Power Consumption:
230 W
Standby Power Consumption:
12.50 W
Off-Mode Power Consumption:
11.50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 400
Height with Stand:
24.13"
Width with Stand:
40.16"
Depth with Stand:
5.20"
Weight (Approximate):
74.74 lb
Miscellaneous
Certifications & Standards:
  • FCC
  • CE
  • VCCI
  • UL
  • cUL
  • IC
  • C-TICK
  • S-Mark
  • CCC
  • GOST
  • NOM
Platform Supported:
PC
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149321822, 7411493218224
UPC: 741149321822
EAN: 0741149321822, 7411493218224
UNSPSC: 43211903
