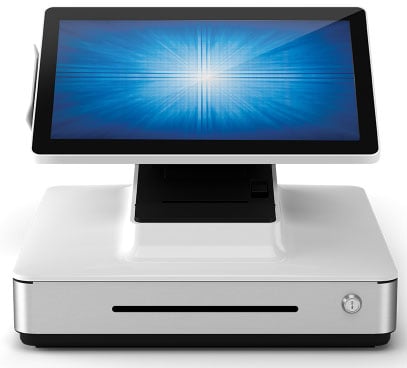

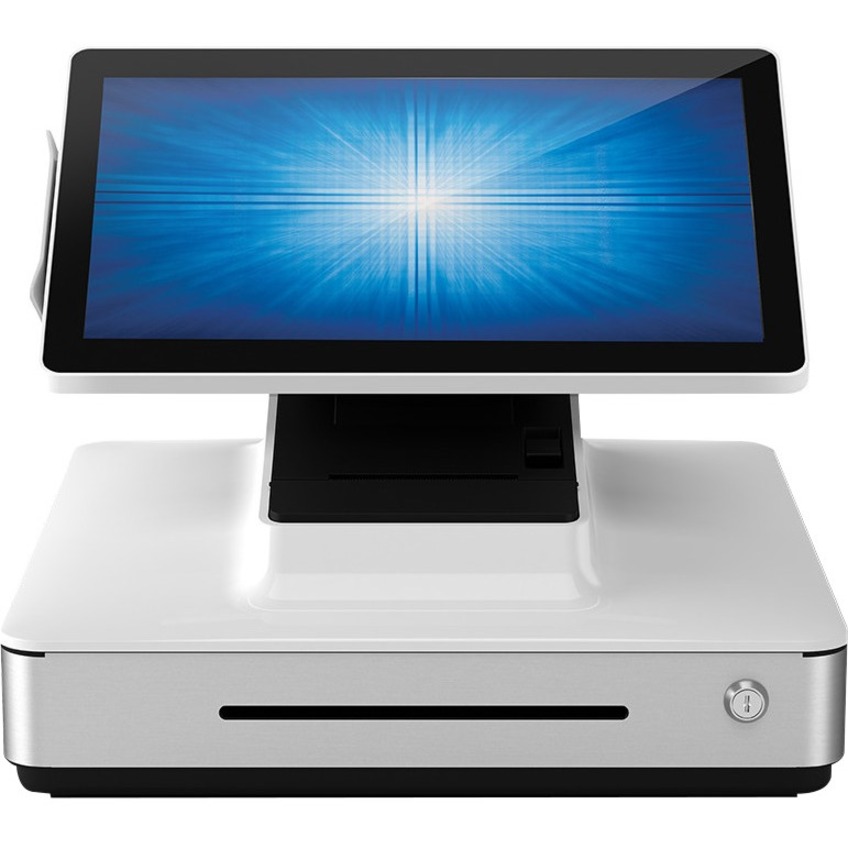

Elo E833933 POS Touch Terminal

Elo PayPoint Plus - POS Terminal, Elo PayPoint Plus, Windows 10, Intel Core i5-8500T, 15.6", 1920 x 1080, 16:9, Projected Capacitive 5-Touch, 8GB RAM/128GB SSD, 3" Printer, 2D Barcode Scanner, 5x6 Cash Drawer, White
  • Touchscreen interface enables swift access
  • The ultra modern interface that Windows 10 offers is well suited with any hardware or software that you are presently using
  • 15.6" screen size empowers smooth visuals
  • 128 GB SSD offers amazing storage room for all your critical data
  • With 8 GB DDR4 SDRAM of memory
Read More
In Stock
Add to Quote
Elo PayPoint Plus for Windows POS System Model Overview
PayPoint Plus for Windows is an all-in-one point of sale solution that brings simplicity and elegance with a powerful Intel Coffee Lake Core i5-8500T processing and Microsoft Windows 10 operating system. Offering sleek, modern style with peripherals built in, PayPoint Plus for Windows integrates a 15.6-inch TouchPro PCAP touchscreen, 3-inch Star receipt printer, industry standard 16-inch cash drawer, MagTek MSR and Honeywell 2D barcode scanner.
Elo E833933 POS Touch Terminal Overview

PayPoint® Plus for Windows®

PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel® Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

Large Display

PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

Rotating Display Head

Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.

Integrated Peripherals


The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.

Barcode Scanner

The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example-EasyDL™ enables users to read government-issued identification cards in US and Canada.

Cash Drawer

The full size industry-standard cash drawer with 3-position lock offers two layouts-five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.


The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.

3-inch Printer

PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software - making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first - this printer has been tested to MCBF of 60 million lines.

Barcode Scanner

2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell's EZConfig Cloud for Scanning - simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL™ to scan and parse data from drivers licenses in the United States and Canada.

Full Size Cash Drawer

The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.

Magnetic Stripe Reader

PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe Reader (MSR) built by MagTek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.

Processor & Chipset
Processor Manufacturer:
Processor Type:
Core i5
Standard Memory:
8 GB
Memory Technology:
Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
Display & Graphics
Screen Size:
Display Screen Type:
Network & Communication
Wireless LAN:
Ethernet Technology:
Gigabit Ethernet
Powered USB:
Network (RJ-45):
Cash Drawer Port:
Serial Port:
Built-in Devices
Magnetic Stripe Reader:
Operating System:
Windows 10
Physical Characteristics
Product Color:
Package Contents:
  • PayPoint Plus for Windows
  • Power cable
  • 1 x Receipt paper roll
  • 2 x Cash drawer keys
  • Quick Installation Guide
  • RJ45 to DB9 serial cable
Limited Warranty:
3 Year
Item Numbers
GTIN: 0815335029219
UPC: 815335029219
EAN: 0815335029219
UNSPSC: 43211505
