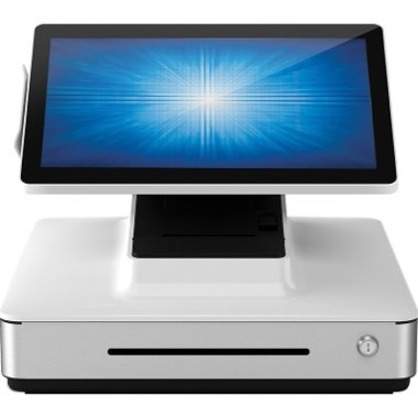

Elo E833323 POS Touch Terminal

PayPoint Plus for Windows is an all-in-one point of sale solution that brings simplicity and elegance with a powerful Intel Coffee Lake Core i5-8500T processing and Microsoft Windows 10 operating system. Offering sleek, modern style with peripherals built in, PayPoint Plus for Windows integrates a 15.6-inch TouchPro PCAP touchscreen, 3-inch Star receipt printer, industry standard 16-inch cash drawer, MagTek MSR and Honeywell 2D barcode scanner.

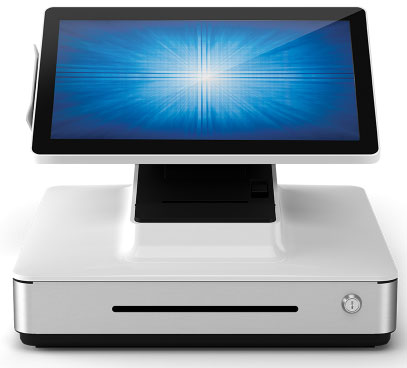

PayPoint® Plus for Windows®

PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel® Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

Large Display

PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

Rotating Display Head

Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.

Integrated Peripherals

Printer

The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.

Barcode Scanner

The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example-EasyDL™ enables users to read government-issued identification cards in US and Canada.

Cash Drawer

The full size industry-standard cash drawer with 3-position lock offers two layouts-five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.

MSR

The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.

3-inch Printer

PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software - making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first - this printer has been tested to MCBF of 60 million lines.

Barcode Scanner

2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell's EZConfig Cloud for Scanning - simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL™ to scan and parse data from drivers licenses in the United States and Canada.

Full Size Cash Drawer

The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.
