Elo E814661 POS System
Full specifications (PDF)

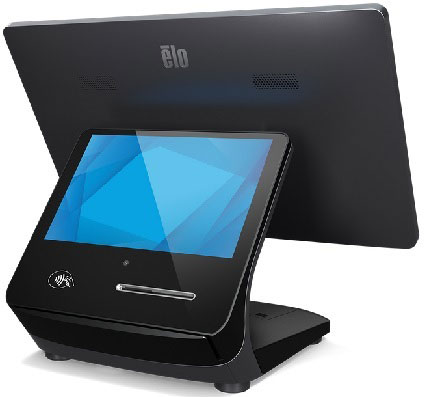

Elo Pay 7" POS System Model Overview
The Elo Pay 7-inch Integrated Payment POS System is designed for merchants seeking a compact, enterprise-grade terminal without compromising on performance or versatility. Boasting a vibrant 7-inch HD touch display and powered by a Qualcomm Snapdragon 660 processor, it efficiently supports all payment methods, including EMV, NFC, and pin-on-glass. Its modular design allows for flexible mounting options, making it suitable for various retail environments. With seamless management through EloView, merchants can effortlessly deploy content and maintain settings, ensuring a streamlined transaction experience for both customers and staff.
Key Features
- Compact 7-inch HD Touch Display for clear visibility
- Integrated Payment Options support all payment types
- Modular Design with flexible mounting configurations
- Powered by Android 12 for enhanced functionality
- Enterprise-Grade Support with security updates and management tools
Specifications
- Diagonal Size: 7"
- Resolution: 1920 x 1080
- Brightness: 400 nits
- Operating System: Android 12
- Processor: Qualcomm Snapdragon 660, 2.2GHz Octa-Core
- Memory: 4GB
- Storage: 64GB (expandable via MicroSD)
- Wireless: 802.11a/b/g/n/ac, Bluetooth 5.0
- Dimensions: 6.9" x 6.6" x 1.7"
- Weight: 1.4 lbs
- Operating Temperature: 32°F to 104°F
- Warranty: 2 years standard
Recommended Accessories
Category
- Pos Workstation Accessories (3)
Recommended Accessories for Model: Elo E814661 POS System
Top Pos Workstation Accessories Purchased With Elo E814661
-
Elo E815044 POS SuppliesPOS Supplies, Elo Pay 7", Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-CIn Stock$334.76 -
Elo E815235 POS SuppliesPOS Supplies, Elo Pay 7", Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V)Item on backorder — chat for lead time$526.31 -
Elo E220684 POS SuppliesPOS Supplies, Elo Pay 7", VESA Mount KitItem on backorder — chat for lead time$39.10
Frequently Asked Questions
What payment methods does the Elo E814661 POS System support?
The Elo Pay 7-inch POS system supports all major payment forms including EMV, NFC, MSR (magnetic stripe reader), and pin-on-glass technology. This comprehensive payment support ensures your business can accept payments from virtually any customer payment method, making it ideal for modern retail and hospitality environments.
Can the Elo E814661 be mounted in different configurations?
Yes, the Elo Pay 7-inch features a modular design with flexible mounting options. You can place it on the counter, mount it on the printer stand, or integrate it on the back of the Z70 POS Stand, allowing you to configure the system to match your specific merchant setup and workspace requirements.
What operating system and processor does the Elo E814661 run?
The Elo Pay 7-inch POS system runs Android 12 with Google Mobile Services (GMS) and is powered by a Qualcomm Snapdragon 660 Octa-Core processor with 4GB RAM and 64GB Flash storage. This combination delivers reliable performance for point-of-sale operations and application deployment.
How is the Elo E814661 managed and provisioned in an enterprise environment?
The Elo Pay 7-inch can be deployed, configured, and maintained using EloView or your preferred management tools, offering seamless provisioning and simplified device management. Enterprise-grade support includes security updates, OEMConfig compatibility, and Elo Home integration to streamline fleet management across multiple terminals.
What display specifications does the Elo E814661 POS System have?
The Elo Pay 7-inch features a 7-inch HD touch display with 1920 x 1080 resolution, providing clear visibility and responsive touch interaction for both customers and employees. The compact size makes it suitable for counter placement or integrated mounting in various retail and hospitality settings.
Is the Elo E814661 compatible with other Elo Pay terminals?
Yes, all Elo Pay terminals are built on a common kernel, which means a single integration provides access to Elo's entire payment terminal lineup. This unified architecture simplifies deployment and reduces integration complexity when managing multiple Elo payment systems across your organization. Contact us today to learn how we can help you deploy the right Elo solution for your business.
