Elo E814473 POS System
Full specifications (PDF)

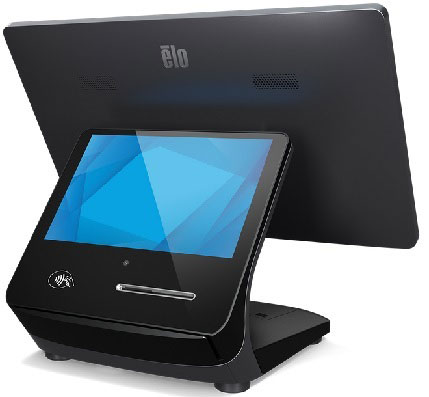

Elo Pay 7" POS System Model Overview
The Elo Pay 7-inch Integrated Payment POS System is designed for merchants seeking a compact, enterprise-grade terminal without compromising on performance or versatility. Boasting a vibrant 7-inch HD touch display and powered by a Qualcomm Snapdragon 660 processor, it efficiently supports all payment methods, including EMV, NFC, and pin-on-glass. Its modular design allows for flexible mounting options, making it suitable for various retail environments. With seamless management through EloView, merchants can effortlessly deploy content and maintain settings, ensuring a streamlined transaction experience for both customers and staff.
Key Features
- Compact 7-inch HD Touch Display for clear visibility
- Integrated Payment Options support all payment types
- Modular Design with flexible mounting configurations
- Powered by Android 12 for enhanced functionality
- Enterprise-Grade Support with security updates and management tools
Specifications
- Diagonal Size: 7"
- Resolution: 1920 x 1080
- Brightness: 400 nits
- Operating System: Android 12
- Processor: Qualcomm Snapdragon 660, 2.2GHz Octa-Core
- Memory: 4GB
- Storage: 64GB (expandable via MicroSD)
- Wireless: 802.11a/b/g/n/ac, Bluetooth 5.0
- Dimensions: 6.9" x 6.6" x 1.7"
- Weight: 1.4 lbs
- Operating Temperature: 32°F to 104°F
- Warranty: 2 years standard
Recommended Accessories
Category
- Pos Workstation Accessories (3)
Recommended Accessories for Model: Elo E814473 POS System
Top Pos Workstation Accessories Purchased With Elo E814473
-
Elo E815044 POS SuppliesPOS Supplies, Elo Pay 7", Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-CIn Stock$334.76 -
Elo E815235 POS SuppliesPOS Supplies, Elo Pay 7", Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V)Item on backorder — chat for lead time$526.31 -
Elo E220684 POS SuppliesPOS Supplies, Elo Pay 7", VESA Mount KitItem on backorder — chat for lead time$39.10
Frequently Asked Questions
What payment methods does the Elo E814473 POS System support?
The Elo Pay 7-inch terminal supports all major payment forms including EMV, NFC, MSR, and pin-on-glass capabilities. This comprehensive payment support ensures your business can accept transactions from virtually any customer payment method, making it a versatile solution for modern retail and hospitality environments.
Can the Elo E814473 be integrated with existing POS infrastructure?
Yes. The Elo Pay 7-inch system is built on a common kernel with Elo's entire payment terminal lineup, meaning a single integration provides access to all Elo payment terminals. This modular design simplifies deployment and reduces integration complexity across your payment ecosystem.
What mounting options are available for the Elo E814473?
The Elo Pay 7-inch offers flexible deployment options—it can be placed on the counter, mounted on a printer stand, or integrated on the back of the Z70 POS Stand. This modularity allows you to configure the terminal to match your specific merchant layout and workflow requirements.
How is the Elo E814473 managed and provisioned?
The system is managed through EloView, which enables you to deploy content, manage settings, and maintain the operating system across your devices. Additionally, the terminal includes enterprise-grade support features like OEMConfig and seamless provisioning to simplify device lifecycle management.
What operating system and processor does the Elo E814473 run?
The Elo Pay 7-inch runs Android 12 with Google Mobile Services (GMS) and is powered by a Qualcomm SD660 Octa-Core processor paired with 4GB RAM and 64GB Flash storage. This combination delivers reliable performance for retail POS applications while maintaining compatibility with Android-based business software.
Is the Elo E814473 suitable for enterprise deployments?
Yes. The Elo Pay 7-inch is an enterprise-grade terminal that includes security updates, seamless provisioning, EloView management compatibility, and OEMConfig support. These features make it ideal for organizations managing multiple locations and requiring centralized device management and security compliance.
