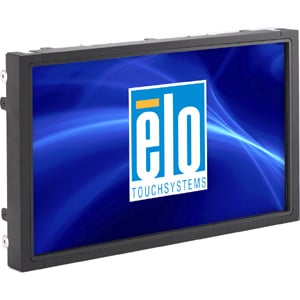

Elo E805638 Touchscreen

Elo E329636 Touchscreen A newer version of this item is available.
It is replaced by the Elo E329636 Touchscreen.
Elo 1541L - Elo 1541L 15" Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - 15" Class - 5-wire Resistive - 1366 x 768 - WXGA - 16.7 Million Colors - 500:1 - 250 Nit - LED Backlight - DVI - USB - VGA - RoHS, China RoHS, WEEE - 3 Year
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Elo 1541L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E805638 Touchscreen
Elo E805638 Touchscreen Elo E805638 Touchscreen Elo E805638 Touchscreen Elo E805638 Touchscreen
Elo E805638 Touchscreen
Elo E805638 Touchscreen
Elo E805638 Touchscreen
Elo E805638 Touchscreen
Full specifications (PDF)
Elo 1541L Touchscreen Model Overview
The ELO 1541L 15-inch open-frame touchmonitor provides a convenient, space-saving design that is suitable for commercial, industrial, gaming and retail applications. Its compact mechanical design is easier and more flexible for system integrators to deploy touch solutions for gaming and amusement, information kiosks and self-service applications.
Elo E805638 Touchscreen Overview

Elo TouchSystems 1541L, one of the industry's first 15-inch open-frame LCD touchmonitors with an LED backlight, that features a 16:9 aspect ratio, suitable for commercial, industrial, gaming and retail applications. The 1541L expands the Elo family of touch solutions for gaming and amusement, information kiosks and self-service with flexible, energy-saving features. The 1541L also has a convenient, space-saving design that makes building touch solutions easier and more flexible for OEMs and system integrators.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
WXGA
Screen Surface:
Anti-glare
Response Time:
16 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
130°
Backlight Technology:
LED
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
15 W
Standby Power Consumption:
2 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Height:
8.7"
Width:
14.8"
Depth:
1.8"
Weight (Approximate):
6.48 lb
Miscellaneous
Certifications & Standards:
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0616174225004, 4943793109733, 4963263179370, 7411493277016
UPC: 616174225004
EAN: 0616174225004, 4943793109733, 4963263179370, 7411493277016
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E805638 Touchscreen is also known as ELO-E805638 or E805638.
