Elo E802697 Digital Signage Display


0.0

(No reviews)

Be the first to

Write a Review

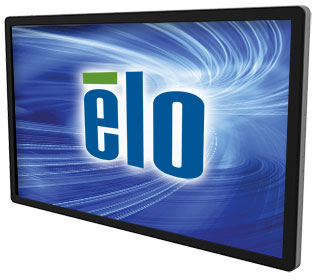

Elo 4201L - 42" wide LCD Monitor, VGA, HDMI & DisplayPort video interface, IntelliTouch USB touch controller interface, Worldwide-version, Clear, White
Thin, commercial-grade touchscreen ideal for kiosks, wayfinding and other office applications

Elo"s new 4201L 42-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, health care and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 4201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.2 inches (81 mm), the 4201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

General Information

  • Product Type: Digital Signage Display
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 4201L
  • Product Name: 4201L 42-inch Interactive Digital Signage Display (IDS)

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 400 x 400
  • Height: 23.1"
  • Width: 39.2"
  • Depth: 3.1"
  • Weight (Approximate): 48.94 lb

Interfaces/Ports

  • USB: Yes
  • HDMI: Yes
  • VGA: Yes
  • Audio Line Out: Yes
  • DisplayPort: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Certifications & Standards:
    • UL60950
    • IEC 60320 C14
    • UL
    • FCC
    • cUL
    • IC
    • CB
    • CE
    • VCCI
    • C-Tick
    • NOM CoC
    • GOST
    • BSMI
    • KC
    • e-Standby
    • CCC

Display & Graphics

  • HDCP Supported: Yes
  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Touchscreen: Yes
  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Size: 42"
  • Aspect Ratio: 16:9
  • Display Resolution: 1920 x 1080
  • Response Time: 6 ms
  • Touchscreen Technology: IntelliTouch Surface Wave
  • Multi-touch Screen: Yes

Video

  • Scan Format: 1080p
  • Native Contrast Ratio: 4,000:1
  • Brightness: 700 Nit
  • Standard Refresh Rate: 60 Hz

Audio

  • Speakers: Yes
  • Number of Speakers: 4
  • RMS Output Power: 20 W

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)
