Elo E779029 Touchscreen

The Elo E779029 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

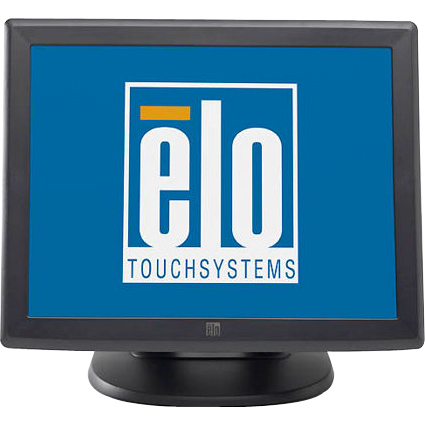

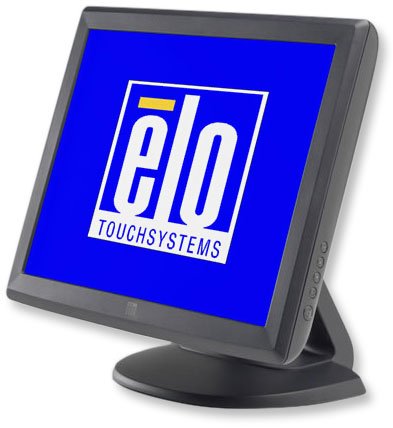

Elo 1515L - Elo 1515L 15" LCD Touchscreen Monitor - 4:3 - 14.20 ms - 15" Class - Capacitive - 1024 x 768 - XGA - 16.7 Million Colors - 500:1 - 250 Nit - USB - VGA - Gray - China RoHS, MPR II - 3 Year
  • The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • Capacitive touchscreen technology is impenetrable to contaminants and liquids, for instance, dust, oil, grease and water globules
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued Need Assistance?
Add to Quote
Elo 1515L Touchscreen Model Overview
The 1000 Series of touchmonitors are designed, developed and built to provide the most cost-effective touch solutions. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; or IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications, plus a dual serial/USB interface, sealed touchscreen, internal power supply and removable base.
Elo E779029 Touchscreen Overview

The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; or Acoustic Pulse Recognition technology.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
14.20 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
115°
Features:
Security Lock
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive

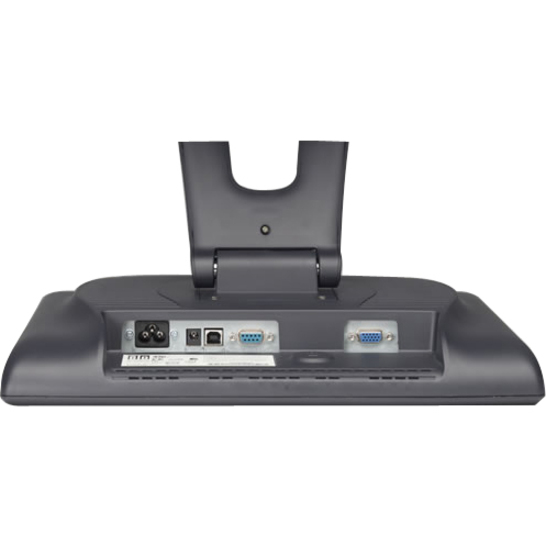

Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Gray
Height with Stand:
12.20"
Width with Stand:
13.78"
Depth with Stand:
6.89"
Weight (Approximate):
7.28 lb
Weight with Stand (Approximate):
10.58 lb
Miscellaneous
Package Contents:
  • 1515L Touchscreen LCD Monitor
  • Touch/Video Cables
  • Power Cable
Certifications & Standards:
  • UL
  • cUL
  • FCC
  • CE
  • Semko or Demko
  • VCCI
  • IC
  • C-TICK
  • S-Mark
  • BSMI
  • CCC
  • MIC
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
  • China RoHS
  • MPR II
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149327848, 7411493278488
UPC: 741149327848
EAN: 0741149327848, 7411493278488
UNSPSC: 43211903
