Elo E760102 Touchscreen

Part Number: E760102
Model: 1919L

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Viewable Screen Size
18.5"
Screen Mode
WXGA
Response Time
5 ms
Aspect Ratio
16:9

Product Description:

  Elo 1919L 18.5" LCD Touchscreen Monitor - 16:9 - 5 ms - 5-wire Resistive - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year

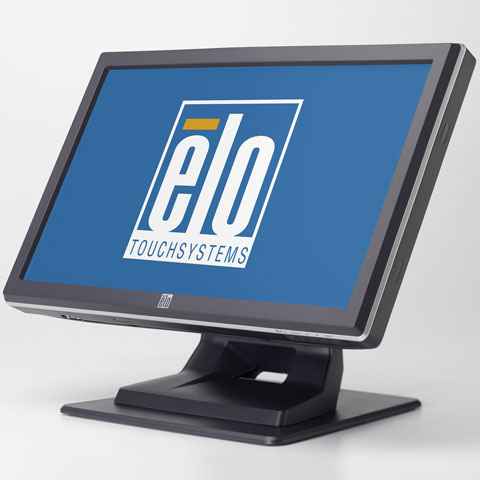

Elo 1919L Touchscreen Model Overview

The ELO 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in three industry-leading ELO touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Elo E760102 Touchscreen Overview

The 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touch monitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications.

Technical Information
Viewable Screen Size:
18.5"
Screen Mode:
WXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Headphone:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
17.60 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
9"
Width:
16"
Height with Stand:
12.60"
Width with Stand:
17.90"
Depth with Stand:
9.30"
Weight (Approximate):
10.20 lb
Weight with Stand (Approximate):
15.10 lb
Miscellaneous
Package Contents:
  • 1919L Touchscreen LCD Monitor
  • Stand
Certifications & Standards:
  • UL
  • cUL
  • NOM
  • CB
  • S-mark
  • CCC
  • VCCI
  • KC
  • KKC
  • BSMI
  • IMERC
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149322126, 4913393113522, 4943783155016, 7411493221262
UPC: 741149322126
EAN: 0741149322126, 4913393113522, 4943783155016, 7411493221262
UNSPSC: 43211903
