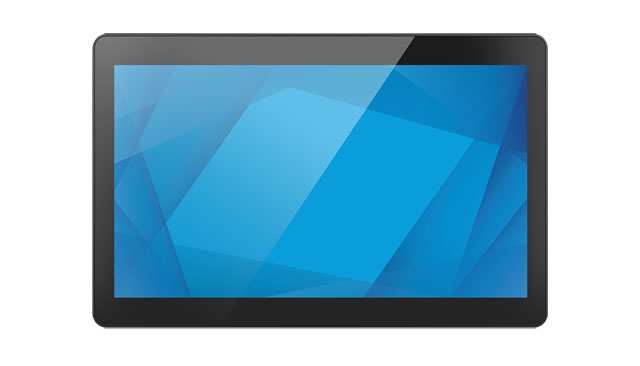

Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal Model Overview
The Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal is a modular, enterprise-grade all-in-one touchscreen platform designed to support a wide range of point-of-sale and self-service applications. Available in both standard POS touch terminal and Slate configurations, the I-Series 3 offers flexible deployment options for countertop, kiosk, or custom-mounted installations. The 15.6-inch Full HD 1920 x 1080 projected capacitive touchscreen delivers responsive, multi-touch performance in a durable design suited for continuous commercial use. With multiple processor, memory, storage, and operating system options, the I-Series 3 can be configured to match varying performance and software requirements.
Key Features
15.6" Full HD Touchscreen: 1920 x 1080 resolution with projected capacitive 10-point touch.
Flexible Form Factors: Available as a standard POS touch terminal with stand or as a Slate unit for kiosk and custom mounting.
Intel® Processor Options: Configurations available with Intel Pentium®, Celeron®, Core™ i3, or Core™ i5 processors.
Operating System Options: Available with Windows 10, Windows 11, or no operating system, depending on configuration.
Enterprise Connectivity: Integrated Wi-Fi, Ethernet, and Bluetooth® support seamless POS peripheral integration.
Commercial-Grade Design: Built for reliability in retail, hospitality, and self-service environments.
Storage: Solid-state drive (SSD) options available
Wireless: Wi-Fi and Bluetooth®
Wired Networking: Ethernet
Form Factor: POS Touch Terminal or Slate (model dependent)
Color: Black or gray (model dependent)
Elo E743853 POS Touch Terminal Overview
Completely redesigned | I-Series 3 with Intel.
Brilliant and beautiful, | interactive platform.
10-touch Touch Pro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF
Modular design.| Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
13.3" Touchscreen Monitor, Elo 1302L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Worldwide. Box Includes HDMI Cable, Touch USB Cable (Part# E710364), Quick Install Guide, EEI Label, Power Brick, NA Power Cable, EU Power Cable, 3x Tie Wraps, 2x Screws for Cable Cover(s).
Webcam, ELO Elo Edge Connect 3D Camera, 3D, 1280 x 800 @ 30fps/640 x 400 @ 60fps, 0.82 ft to 4.92 ft Focus Range, Facial Recognition/Facial Authentication/Gesture Tracking, Self-Service/Access Control/Augmented Reality/Virtual Reality, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
Webcam, ELO Elo Edge Connect Webcam, 2D, 8 MP (3264 x 2448)/Full HD (1920 x 1080)/HD (1280 x 720)/VGA (640 x 480), 3.8 ft to 13 ft Focus Range, Facial Recognition, Self-Service/Virtual Assistant/Augmented Reality, Auto Focus, Micro USB, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
What display technology does the Elo E743853 I-Series 3 use?
The Elo E743853 features a Full HD IPS touchscreen with a 1920 x 1080 resolution and projected capacitive 10-touch capability. The display includes edge-to-edge zero-bezel glass with an antiglare coating, making it easy to clean and ideal for high-traffic retail and hospitality environments.
What operating systems are compatible with the Elo I-Series 3 POS terminal?
The Elo E743853 supports multiple operating systems including Windows, Linux, and ChromeOS Flex, giving you flexibility to deploy the terminal in diverse IT environments. This multi-OS compatibility makes it suitable for various point-of-sale and interactive applications.
What connectivity options does the Elo E743853 offer?
The Elo I-Series 3 comes equipped with USB-C, Gigabit LAN, powered RJ50 Serial, Wi-Fi, and Bluetooth 5.2 connectivity. This comprehensive range of connection options ensures seamless integration with your existing POS infrastructure and peripheral devices.
Is the Elo E743853 suitable for dusty or wet environments?
Yes, the Elo I-Series 3 features a fanless IP54 rating, which provides protection against dust and water ingress. This durability rating makes it well-suited for demanding warehouse, retail, and hospitality environments where spills and debris are common.
What security features does the Elo E743853 include?
The Elo I-Series 3 is equipped with Trusted Platform Module (TPM) and Intel vPro technology, providing enterprise-grade security for sensitive point-of-sale transactions and data protection. These features are essential for compliance with payment card industry standards and protecting customer information.
What processor and memory specifications does the Elo E743853 have?
The Elo E743853 is powered by Intel's 12th-generation processor with a Core i5, 16GB RAM, and 256GB SSD storage. This configuration delivers reliable performance for running modern POS software and multitasking applications in retail and hospitality settings. Contact us today to verify current stock and configure your terminal with our team at barcodesinc.com.
The Elo E743853 POS Touch Terminal is also known as
ELO-E743853
or E743853.
Full specifications (PDF)
