Elo E739717 Digital Signage Display


0.0

(No reviews)

Be the first to

Write a Review

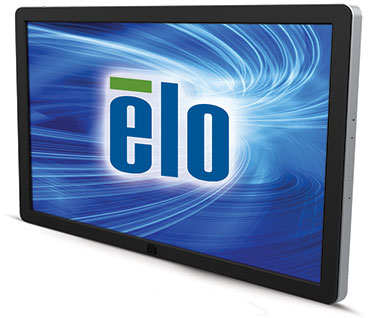

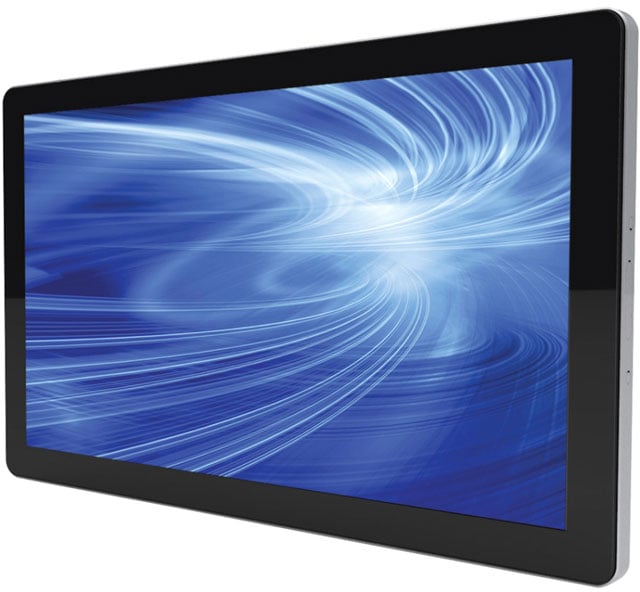

Elo 3201L - 32" IDS Monitor, Projected Capacitive, USB Controller, Color: Black
32" Interactive Digital Signage Display

The 3201L 32-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, health care and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.1 inches (78 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount. Available with IntelliTouch Plus surface acoustic wave multi-touch technology, display clarity is undistorted due to use of clear glass. Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel Core i3 processor and HD2500 graphics, and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

General Information

  • Product Type: Digital Signage Display
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 3201L
  • Product Name: 3201L 32-inch Interactive Digital Signage Display (IDS)

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 400 x 400
  • Height: 19"
  • Width: 31.1"
  • Depth: 2.8"
  • Weight (Approximate): 33 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes
  • HDMI: Yes
  • VGA: Yes
  • DisplayPort: Yes

Display & Graphics

  • HDCP Supported: Yes
  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Touchscreen: Yes
  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Size: 32"
  • Aspect Ratio: 16:9
  • Display Resolution: 1920 x 1080
  • Response Time: 8 ms
  • Touchscreen Technology: Projected Capacitive
  • Multi-touch Screen: Yes

Video

  • Scan Format: 1080p
  • Native Contrast Ratio: 3,000:1
  • Brightness: 350 Nit
  • Standard Refresh Rate: 60 Hz

Audio

  • Speakers: Yes
  • Number of Speakers: 4
  • RMS Output Power: 20 W

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Power Consumption: 65 W

Full specifications (PDF)
