Elo E734455 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

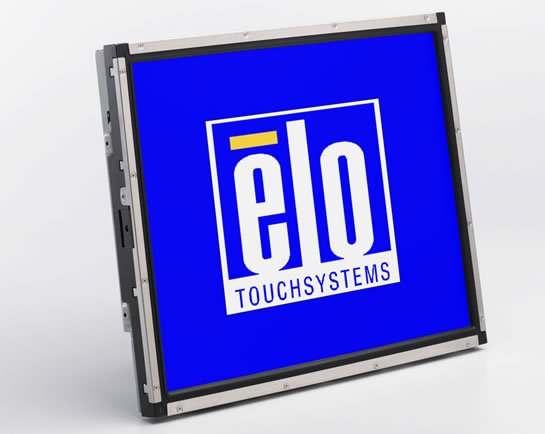

Elo 1739L - 3000 Series 1739L 17 inch LCD Rear-Mount Touchmonitor (SecureTouch Touch Technology, Dual Serial/USB Interface and Anti-glare Surface Treatment). Requires power supply (Part# E348315), not included. See accessories.
17" Flat Panel Vertical Mount Touch Monitor in Steel

The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Mount Type: Bracket-mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1739L
  • Product Name: 1739L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 12"
  • Width: 14.5"
  • Depth: 1.9"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 8.82 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 1739L Open-frame Touchscreen LCD Monitor
    • Detachable Touch Cable
    • Video Cable
    • 1739L Open-frame Touchscreen LCD Monitor
    • Detachable Touch Cable
    • Video Cable

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 36 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 1739L
Screen Size 17
Display Type LCD
Touch Technology Surface Wave
Form Factor Rear Mount
Color Black
Interface USB & Serial/RS-232


Customer Review Summary

Recommended Accessories for Model: Elo 1739L Touchscreen
Elo Accessories (E005277)
Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L.
In Stock: Ships Same Day
$30.00
+ Add to Quote
Elo Service Contracts - 2 year (E794114)
Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships in 3-5 Days
$185.00
+ Add to Quote
Elo 15D2 (E145919)
Magnetic stripe reader (3-track) for the 15D1 and 17D2 Touchcomputers
Ships in 3-5 Days
$58.00
+ Add to Quote
Elo (E177037)
Magnetic Strip Reader for 1515L touchsystems, Gray, Field Installable
In Stock: Ships Same Day
$61.00
+ Add to Quote
Elo (D82064-000)
Black, soft tip stylus pen for Intellitouch monitors
In Stock: Ships Same Day
$22.60
+ Add to Quote
Protect Your Product

The Elo E734455 is also known as Elo Touch Systems ELO-E734455 .
