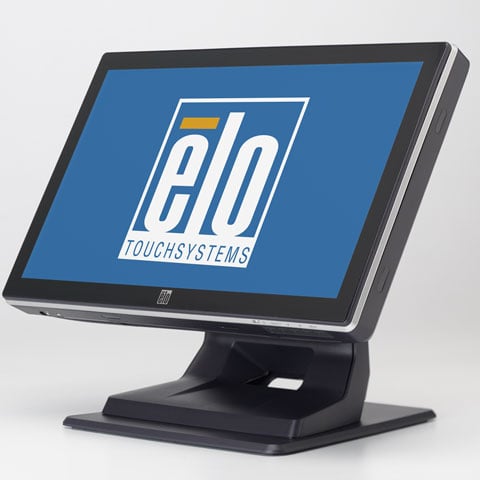

Elo E732007 Touchscreen

Elo E830343 Touchscreen A newer version of this item is available.
It is replaced by the Elo E830343 Touchscreen.
Elo 1519L - Elo 1519L 15.6" LCD Touchscreen Monitor - 16:9 - 8 ms - 5-wire Resistive - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Speakers - USB - VGA - Dark Gray - WEEE, RoHS, EU RoHS, China RoHS - 3 Year
  • The WXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued See Replacement
Add to Quote
Elo 1519L Touchscreen Model Overview
The ELO 1519L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1519L is available in three industry-leading ELO touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Elo E732007 Touchscreen Overview

The 1519L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touch monitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1519L is available in three industry-leading Elo touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Technical Information
Viewable Screen Size:
15.6"
Screen Mode:
WXGA
Screen Surface:
Anti-glare
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
90°
Vertical Viewing Angle:
65°
Adjustable Display Angle:
Yes
Adjustable Display Height:
No
Adjustable Display Pivot:
Yes
Display Orientation:
Landscape/Portrait
Mount Type:
Wall Mountable
Features:
Security Lock
Horizontal Frequency:
83 kHz
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Headphone:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
18.40 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Dark Gray
Height with Stand:
8.40"
Width with Stand:
15.10"
Depth with Stand:
10.90"
Weight (Approximate):
7.50 lb
Weight with Stand (Approximate):
11.30 lb
Miscellaneous
Certifications & Standards:
  • UL
  • cUL
  • NOM
  • CB
  • S-mark
  • CCC
  • VCCI
  • KC
  • KKC
  • BSMI
  • China RoHS
  • IMERC
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • EU RoHS
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7411493220968
EAN: 7411493220968
UNSPSC: 43211903
