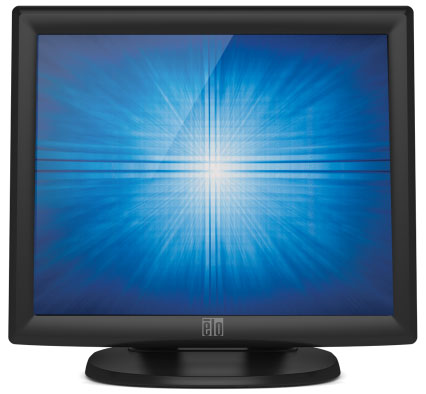

The Tyco Electronics 1715L 17" LCD Desktop Touchmonitor offers an entry-level touch solution without compromising on Elo's renowned quality and reliability. Designed specifically for touch applications from the ground up, this monitor features a sturdy tilt base, side controls for easier accessibility, and a lockout function for public use. With its compact design, the 1715L can be mounted on desktops or walls, making it ideal for various settings. Enhanced with IntelliTouch surface-wave technology, it ensures exceptional touch responsiveness while remaining sealed against dust, dirt, and liquids.
Key Features:
Designed for touch with stable tilt base and side controls
Space-saving design, suitable for desktop or wall mounting
Factory-sealed screen protects against dirt, dust, and liquids
IntelliTouch surface-wave technology for superior touch performance
VESA mount option for flexible installation
Three-year warranty for peace of mind in the U.S.
Specifications:
Case/Bezel Color: Dark gray
Display Type: Active matrix TFT LCD
Display Size: 17" diagonal
Aspect Ratio: 5 x 4
Optimal Resolution: 1280 x 1024
Brightness: 250 cd/m² (230 cd/m² with touchscreen)
Weight: 15.2 lb (6.9 kg)
Power Supply: 100-240 VAC, 50/60 Hz
Operating Temperature: 0°C to 40°C
Warranty: 3 years in the U.S.
Agency Approvals: UL, FCC, CE, TÜV-GS, and others
Elo E719160 Touchscreen Overview
The 1715L touchmonitor is designed, developed and built to provide the most cost effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.
What touch technology options are available for the Elo E719160 1715L touchscreen?
The Elo 1715L offers three touch technology options to suit your application needs. You can choose between AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave (SAW), or other compatible options. We offer all variants available from us today to match your specific retail or hospitality environment requirements.
Can the Elo 1715L be mounted on a wall, or does it require a desktop stand?
The Elo 1715L provides flexible mounting options for both wall and desktop installation. It supports standard VESA mount patterns for wall- and pole-mounting, and includes a stable desktop stand for tabletop use. This versatility allows you to deploy the touchscreen in any configuration that fits your space and workflow.
What connectivity options does the Elo E719160 provide?
The Elo 1715L features a VGA video interface for display connectivity and a Dual Serial/USB touch controller interface for touch input. It is ready for integration into retail and hospitality systems with these standard connectivity options. Contact us today if you need assistance selecting the right cable configuration for your setup.
Is the Elo 1715L protected against dirt, dust, and liquid exposure?
Yes, the Elo 1715L is factory-sealed against dirt, dust, and liquids, making it suitable for demanding retail and hospitality environments. The side-mounted controls and lock-out capability for public use further enhance its durability and security in high-traffic areas.
What display specifications does the Elo 1715L touchscreen offer?
The Elo 1715L features a 17-inch standard format display with a 5:4 aspect ratio, 1280 x 1024 resolution, and 16.7 million colors. It delivers 225 nits brightness and a 1000:1 contrast ratio (typical) with an anti-glare display, making it suitable for retail and hospitality point-of-sale applications.
What warranty and support does the Elo 1715L include?
The Elo 1715L comes with a 3-year warranty and worldwide support coverage. We include a quick install guide, user manual CD, VGA cable, serial cable, power cord, and USB cable in the box to get you up and running quickly. Visit barcodesinc.com or contact us today for any additional support needs.
The Elo E719160 Touchscreen is also known as
ELO-E719160
or E719160.
Full specifications (PDF)
