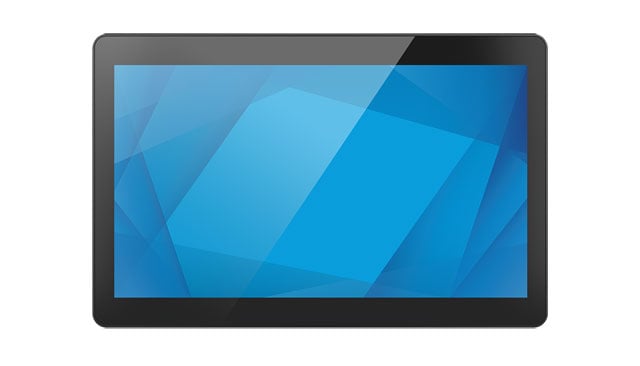

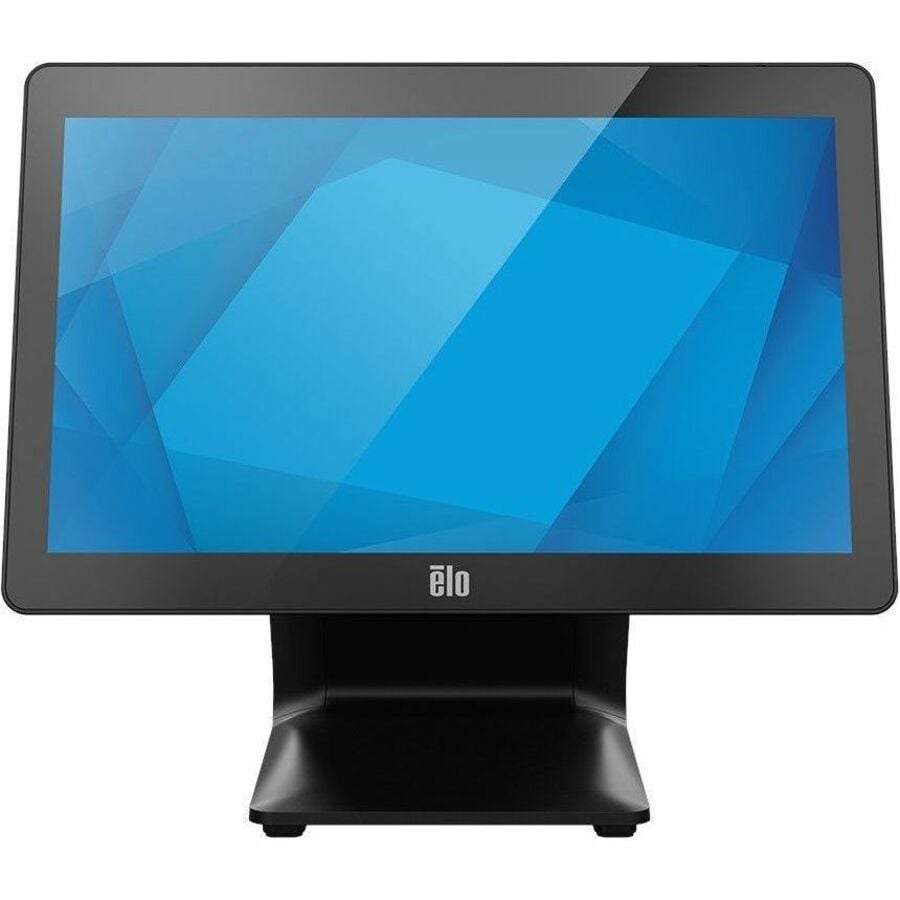

Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal Model Overview
The Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal is a modular, enterprise-grade all-in-one touchscreen platform designed to support a wide range of point-of-sale and self-service applications. Available in both standard POS touch terminal and Slate configurations, the I-Series 3 offers flexible deployment options for countertop, kiosk, or custom-mounted installations. The 15.6-inch Full HD 1920 x 1080 projected capacitive touchscreen delivers responsive, multi-touch performance in a durable design suited for continuous commercial use. With multiple processor, memory, storage, and operating system options, the I-Series 3 can be configured to match varying performance and software requirements.
Key Features
15.6" Full HD Touchscreen: 1920 x 1080 resolution with projected capacitive 10-point touch.
Flexible Form Factors: Available as a standard POS touch terminal with stand or as a Slate unit for kiosk and custom mounting.
Intel® Processor Options: Configurations available with Intel Pentium®, Celeron®, Core™ i3, or Core™ i5 processors.
Operating System Options: Available with Windows 10, Windows 11, or no operating system, depending on configuration.
Enterprise Connectivity: Integrated Wi-Fi, Ethernet, and Bluetooth® support seamless POS peripheral integration.
Commercial-Grade Design: Built for reliability in retail, hospitality, and self-service environments.
Storage: Solid-state drive (SSD) options available
Wireless: Wi-Fi and Bluetooth®
Wired Networking: Ethernet
Form Factor: POS Touch Terminal or Slate (model dependent)
Color: Black or gray (model dependent)
Elo E705831 POS Touch Terminal Overview
Completely redesigned | I-Series 3 with Intel.
Brilliant and beautiful, | interactive platform.
10-touch Touch Pro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF
Modular design.| Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
13.3" Touchscreen Monitor, Elo 1302L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Worldwide. Box Includes HDMI Cable, Touch USB Cable (Part# E710364), Quick Install Guide, EEI Label, Power Brick, NA Power Cable, EU Power Cable, 3x Tie Wraps, 2x Screws for Cable Cover(s).
Webcam, ELO Elo Edge Connect 3D Camera, 3D, 1280 x 800 @ 30fps/640 x 400 @ 60fps, 0.82 ft to 4.92 ft Focus Range, Facial Recognition/Facial Authentication/Gesture Tracking, Self-Service/Access Control/Augmented Reality/Virtual Reality, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
Webcam, ELO Elo Edge Connect Webcam, 2D, 8 MP (3264 x 2448)/Full HD (1920 x 1080)/HD (1280 x 720)/VGA (640 x 480), 3.8 ft to 13 ft Focus Range, Facial Recognition, Self-Service/Virtual Assistant/Augmented Reality, Auto Focus, Micro USB, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
What display specifications does the Elo E705831 I-Series 3 offer?
The Elo E705831 features a 15.6-inch Full HD IPS touchscreen with 1920 x 1080 resolution and a 16:9 aspect ratio. The display includes edge-to-edge glass with an antiglare coating and zero-bezel design for a seamless, easy-to-clean surface ideal for high-touch POS environments.
What processor and memory does this Elo POS terminal include?
The Elo E705831 is powered by Intel's 12th-generation processors with an Intel Core i3, paired with 8GB of RAM and 128GB SSD storage. This configuration delivers responsive performance for retail and hospitality applications while maintaining efficient power consumption.
What connectivity options are available on the Elo E705831?
We offer the Elo E705831 with comprehensive connectivity including USB-C, Gigabit LAN, powered RJ50 Serial, Wi-Fi, and Bluetooth 5.2. These multiple connection options ensure flexibility for integrating with various peripherals, payment systems, and network infrastructure in your POS environment.
What operating systems does the Elo I-Series 3 support?
The Elo E705831 supports multiple operating systems including Windows, Linux, and ChromeOS Flex, providing flexibility to deploy the terminal with your preferred platform and existing software ecosystem. This multi-OS compatibility makes it adaptable to diverse retail and hospitality deployments.
Is the Elo E705831 suitable for demanding environments?
Yes, the Elo E705831 is built with a fanless design and carries an IP54 rating, making it resilient in challenging environments. The modular architecture and edge-to-edge glass design also support easy maintenance and cleaning in high-traffic POS locations.
What security features does the Elo E705831 include?
The Elo E705831 is equipped with Trusted Platform Module (TPM) and Intel vPro technology, providing enterprise-grade security features for protecting payment data and system integrity in retail and hospitality environments. Contact us today to learn how these security capabilities align with your PCI compliance requirements.
The Elo E705831 POS Touch Terminal is also known as
E705831
Full specifications (PDF)
