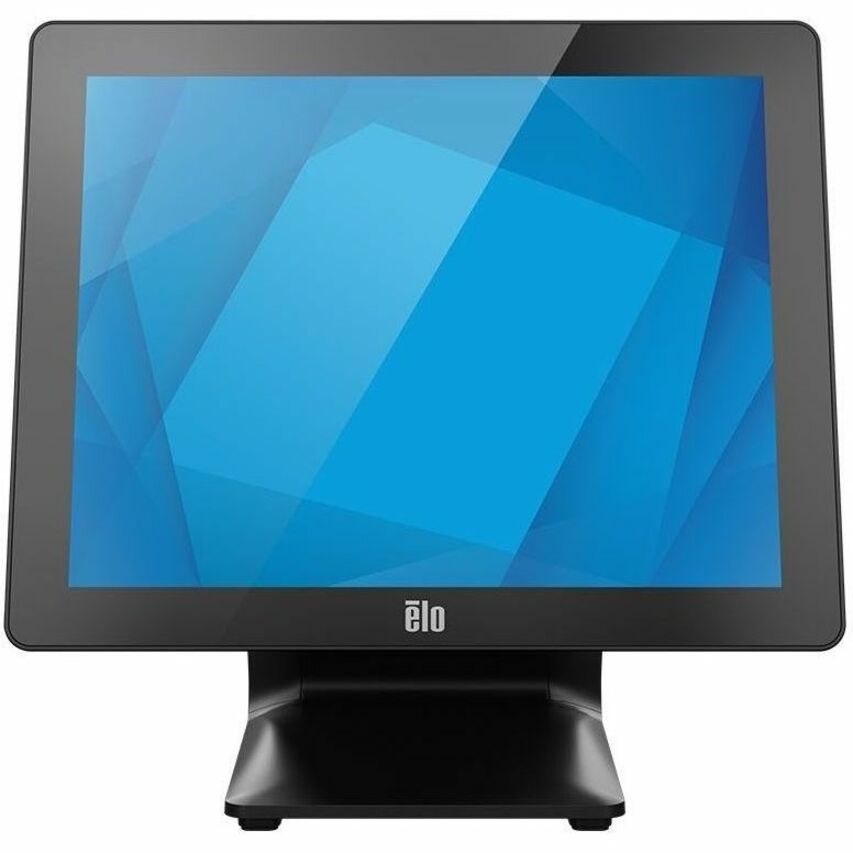

Elo E701737 POS Touch Terminal

Part Number: E701737
Model: 15-Inch (4:3) I-Series 3
Add to My Shopping List Add to Compare
$3,892.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cooling Fan
Fanless
Bluetooth
Yes
Bluetooth Standard
Bluetooth 5.3
Form Factor
All-in-One

Product Description:

  POS Touch Terminal, ELO 15-Inch (4:3) I-Series 3, 15", Windows 10, Intel Core i7, 16GB RAM, 256GB SSD, PCAP 10-Touch, Zero-Bezel, Antiglare, Wi-Fi, Ethernet, Bluetooth, With Stand, Black, Worldwide
Explore all Elo 15-Inch (4:3) I-Series 3 POS Systems
Add to Quote
Elo E701737 POS Touch Terminal
Elo E701737 POS Touch Terminal
Elo E701737 POS Touch Terminal
Elo E701737 POS Touch Terminal Elo E701737 POS Touch Terminal Elo E701737 POS Touch Terminal
Full specifications (PDF)

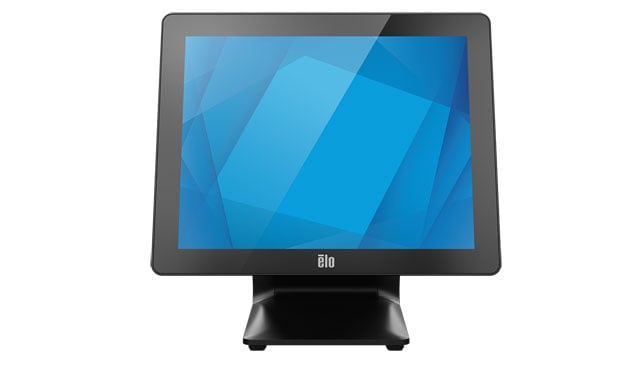

Elo 15-Inch (4:3) I-Series 3 POS System Model Overview

The Elo I-Series 3 with Intel® provides exceptional performance and versatility for a range of applications. With Intel's 12th Gen processors, including options from Celeron to i7, this all-in-one interactive display is designed to meet the demands of any business environment. Its sleek, durable design, available in sizes from 15" to 24", excels in interactive signage, point-of-sale, self-service, and automation controls, making it an ideal choice for modern enterprises.


Key Features:

  • Powerful Intel® 12th Gen Processors: Select from Celeron, Core i3, i5, and i7.
  • Robust Touchscreen: 10-touch Elo TouchPro® PCAP with edge-to-edge glass.
  • Modular Design: Supports flexible mounting options in portrait, landscape, and table-top orientations.
  • Wide OS Compatibility: Works with Windows, ChromeOS Flex, and Linux.
  • IP54 Rated: Ensures high reliability in demanding environments.

Specifications:

  • Display Size: 15", 17", 22", and 24" options available.
  • Resolution: Up to 1920 x 1080 pixels.
  • Touch Technology: 10-touch TouchPro® PCAP.
  • Brightness: 250 nits to 400 nits (varies by model).
  • Processor Options: Intel Celeron 7305L, Core i3-1215UL, i5-1245UL, i7-1265UL.
  • Memory: 8GB DDR5 expandable up to 32GB.
  • Storage: M.2 PCIe NVMe SSD options of 128GB and 256GB.
  • Connectivity: 4x USB 3.0, 1x USB-C, RJ45 LAN port, wireless connectivity (Wi-Fi 6).
  • Warranty: 3-year standard; optional extended warranties available.
Elo E701737 POS Touch Terminal Overview

Completely redesigned | I-Series 3 Slate with Intel

Brilliant and beautiful, interactive platform.

10-touch TouchPro PCAP, Fanless, IP54 rated design, HD IPS Touchscreen, Easy to clean edge-to-edge glass, 50,000 MTBF

Modular design. Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.


Full specifications (PDF)
Technical Information
Cooling Fan:
Fanless
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.3
Form Factor:
All-in-One
Features:
  • Anti-glare
  • Edge-to-Edge Glass Design
Processor & Chipset
Processor Type:
Core i7
Maximum Turbo Speed:
4.80 GHz
Processor Model:
i7-1265UL
Processor Cache:
12 MB
vPro Technology:
Yes
Memory
Standard Memory:
16 GB
Memory Technology:
DDR5 SDRAM
Storage
Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
M.2/PCI Express
Display & Graphics
Screen Size:
15.6"
Active Display Size (Horizontal):
11.97"
Active Display Size (Vertical):
8.98"
Display Screen Type:
LED
Screen Mode:
XGA
Panel Technology:
In-plane Switching Technology (IPS)
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touch Points:
10
Aspect Ratio:
4:3
Contrast Ratio:
800:1
Response Time:
23 ms
Color Supported:
262,000 Colors
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
150°
Graphics Controller Model:
Iris Xe Graphics
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Serial Port:
Yes
RJ-50:
Yes
Number of Micro USB 2.0 Ports:
4
Number of USB 3.0 Ports (Rear):
4
Number of USB Type C Ports:
1
Built-in Devices
Number of Speakers:
2
Speaker Power:
2 W
Software
Operating System:
Windows 10 Enterprise LTSC 2021
Power Description
Power Source:
  • AC Power
  • DC Power
Physical Characteristics
Color Family:
Black
Product Color:
Black
Weight (Approximate):
14.77 lb
Miscellaneous
Package Contents:
  • I-Series 3 POS Terminal
  • North America Power Cord
  • European Power Cord
  • Power Adapter - 180W
  • Cable RJ-50 to DB-9
  • Quick Installation Guide (QIG)
  • Cable Tie
  • CFD Mounting Screw
  • VESA Mounting Screw
  • VESA Cover
  • VESA Cover Mounting Screw
  • Stand
Ingress Protection (IP) Rating:
IP54
Energy Star:
Yes
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173154046
UPC: 843173154046
EAN: 0843173154046
UNSPSC: 43211505
