Elo E686772 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E897317 Touchscreen.

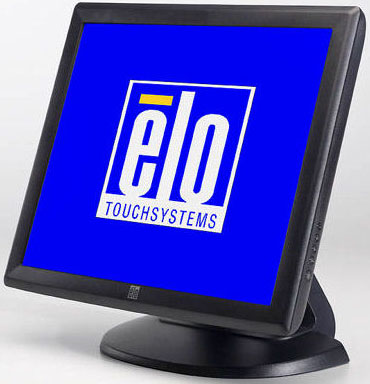

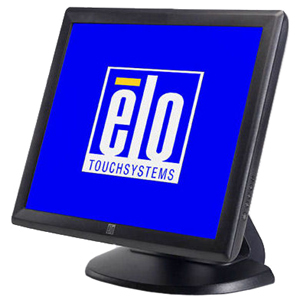

Elo 1928L - Elo 5000 Series 1928L Touch Screen Monitor - 19" - Surface Acoustic Wave - 5:4 - Dark Gray

The SXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
The 1,300:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
The 276 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

Need a different version? See all Elo 1928L Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Elo 1928L Touchscreen Model Overview

Elo's 1928L medical touch-screen monitor features industry's leading IntelliTouch surface acoustical wave and AccuTouch five-wire resistive touch technologies. The 1928L also incorporates touch controller, DVI, VGA and built-in speakers, making it an ideal choice for non-medical applications as well. The 1928L carries worldwide medical certifications, is RoHS compliant and includes an innovative IPX1 enclosure design which ensures that the entire touch-monitor is drip-proof. The five-second power-down delay prevents accidental power shut down. It is an ideal solution for nurse stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration applications and more.

Elo E686772 Touchscreen Overview

The fully featured 1928L touchmonitor offers best in class optical performance. The 1928L is an excellent fit for any application benefiting from DVI-D input, speakers and best in class image performance.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

SXGA

Screen Surface:

Anti-glare

Response Time:

20 ms

Aspect Ratio:

5:4

Mount Type:

Desk Mountable

Video

Maximum Resolution:

1280 x 1024

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,300:1

Brightness:

276 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

Physical Characteristics

Product Color:

Dark Gray

Height:

15.2"

Width:

16.9"

Depth:

8.2"

Weight (Approximate):

17.66 lb

Miscellaneous

Additional Information:

OSD lockouts for power and user controls
Speakers located in display head

Platform Supported:

Item Numbers

GTIN: 7411493016028

EAN: 7411493016028

UNSPSC: 43211903
