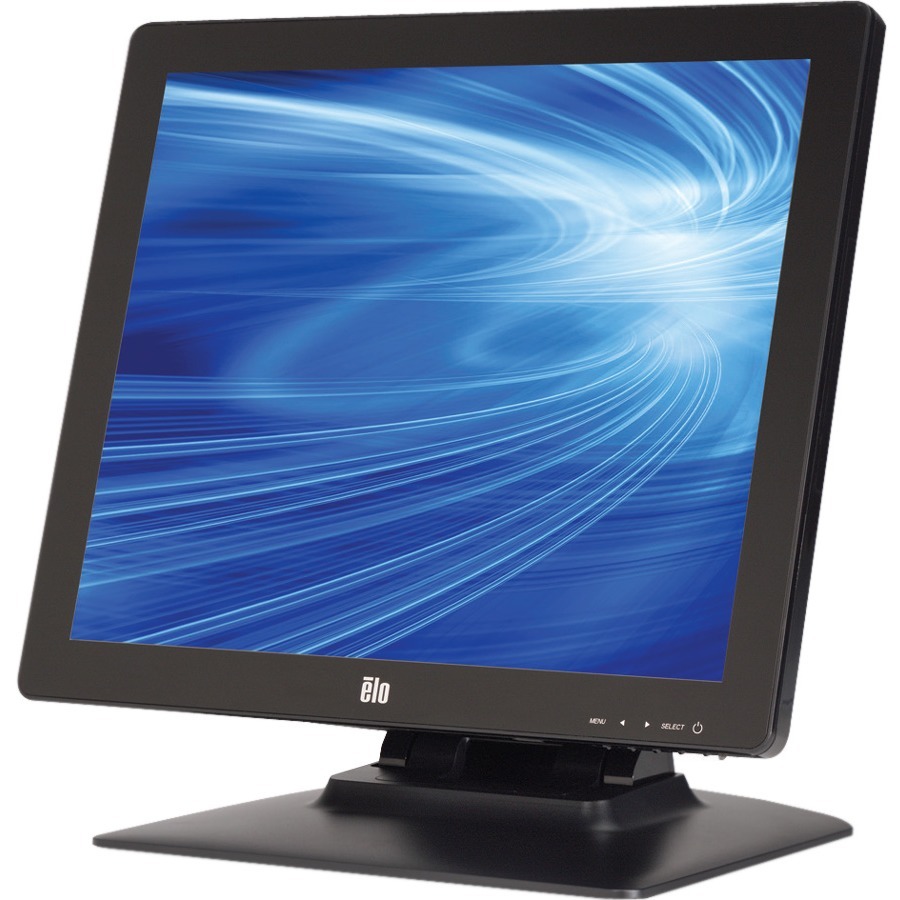

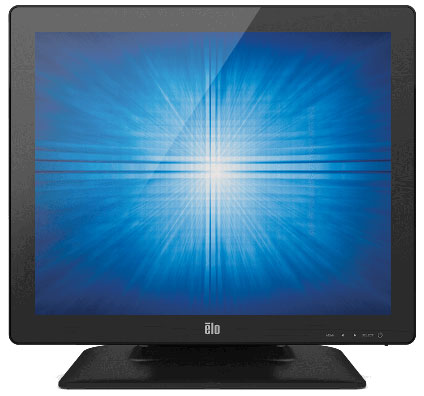

The Elo 1723L 17-inch LED Desktop Touchmonitor is designed for interactive environments such as retail and hospitality. With its sleek, edge-to-edge flat glass design, this touchmonitor combines modern aesthetics with exceptional performance. Utilizing advanced touch technologies, it supports a remarkable 10-touch interaction and boasts spill-resistant features, making it durable and user-friendly in high-traffic areas. Its energy-efficient LED technology ensures up to 55% energy savings, along with a robust warranty for peace of mind.
Key Features:
Zero-Bezel Style designed for touch reliability
55% Energy Savings through LED technology

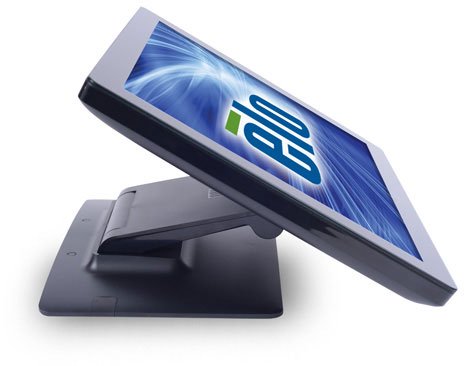

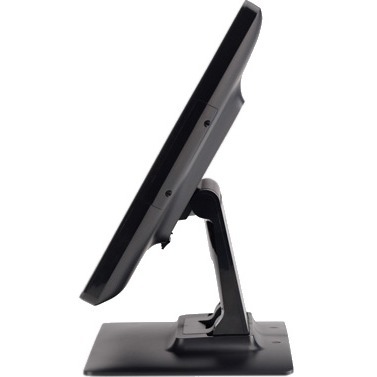

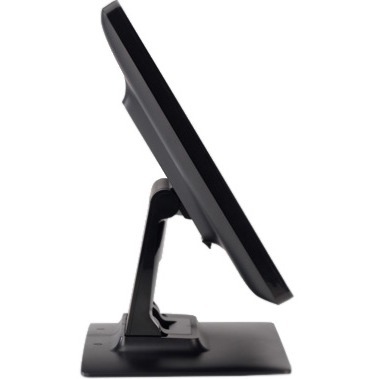

Dual-position Stand with tilt functionality
Integrated Peripheral Options for enhanced interactivity
Flexible Mounting Options: desktop, wall, or VESA
3-Year Standard Warranty for added assurance
Specifications:
Model: 1723L
Color: Black or White
Active Display Area: 13.30" x 10.64"
Dimensions: 15.42" x 8.24" x 14.2"
Diagonal Size: 17"
Native Resolution: 1280 x 1024
Brightness: 250 nits (typical)
Response Time: 30 ms (typical)
Viewing Angle: 170° horizontal; 160° vertical
Weight: 11.46 lbs (unpackaged)
Power Consumption: 22W (typically on)
Operating Temperature: 32°F to 104°F
Warranty: 3 years
Elo E683457 Touchscreen Overview
The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

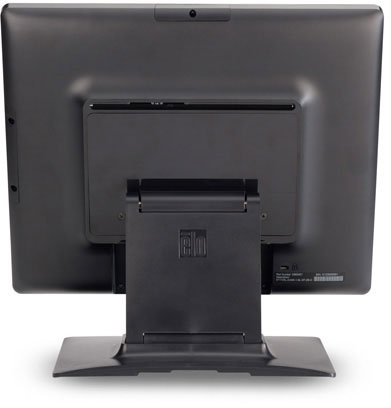

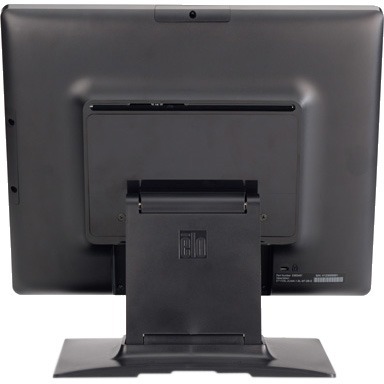

The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
What touch technologies does the Elo 1723L touchscreen monitor support?
The Elo 1723L offers a choice of two industry-leading touch technologies: IntelliTouch surface acoustic wave (SAW) for optimal optical quality in dry retail and hospitality applications, and TouchPro PCAP for a 10-touch tablet-like experience with fast and extremely sensitive responses. Both technologies enable multi-touch functionality with seamless zero-bezel display and drift-free operation.
Is the Elo 1723L suitable for high-traffic retail and hospitality environments?
Yes, the Elo 1723L is specifically designed to meet the durability and aesthetic requirements for high-traffic retail and hospitality interactive solutions. It features spill-resistant sealing, a sleek edge-to-edge glass zero-bezel design, and is backed by a three-year standard warranty for reliable long-term performance.
What video and connectivity interfaces are available on the Elo 1723L?
The Elo 1723L provides VGA and DVI video interfaces for display connectivity, along with a USB touch controller interface for touch input. The monitor also includes built-in connectivity that reduces the number of power bricks needed, and features side controls with lockout capability for secure operation.
What are the display specifications of the Elo 1723L touchscreen monitor?
The Elo 1723L is a 17-inch touchscreen monitor with a 5:4 aspect ratio, 1280 x 1024 SXGA resolution, 16.7 million colors, 215 nits brightness (typical), LED backlight, and 1000:1 contrast ratio (typical). It features an anti-glare display with outstanding image clarity and vivid images.
What mounting and stand options does the Elo 1723L offer?
The Elo 1723L includes an adjustable height stand with tilting functionality as standard, and also supports VESA mounting for flexible installation options. This allows you to customize the monitor positioning to suit your specific retail or hospitality application needs.
What cables and accessories are included with the Elo 1723L?
The Elo 1723L comes with a 50W power brick, power cable, DVI-D cable, VGA cable, USB cable, audio cable, stand base assembly, and filler plate. It also includes a quick install guide, user manual CD, and Japan Class-B TM info sheet to support setup and operation.
The Elo E683457 Touchscreen is also known as
ELO-E683457
or E683457.
Full specifications (PDF)
