Elo E683204 Touchscreen

Elo 1302L - 13.3" Touchscreen Monitor, Elo 1302L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, Speakers, Worldwide. Box Includes Stand (Part# E307788), HDMI Cable, Touch USB Cable (Part# E710364), Quick Install Guide, EEI Label, Power Brick, NA Power Cable, EU Power Cable, 3x Tie Wraps, 2x Screws for Cable Cover(s).
  • Experience an energetic display of colors, contrast and pictures with the full hd lcd touchscreen monitor
  • Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • Enjoy crisp content and energetic hues with the 300 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$535.00
In Stock
Add to Quote

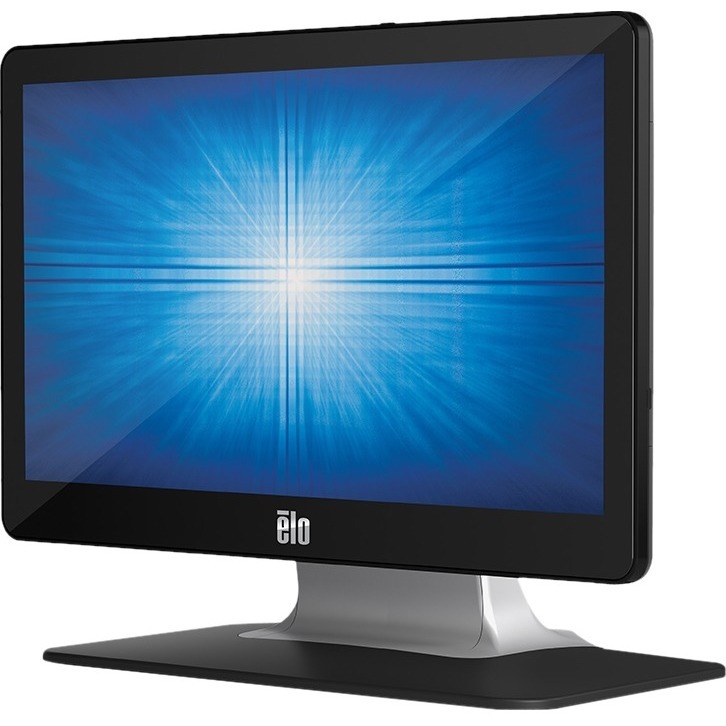

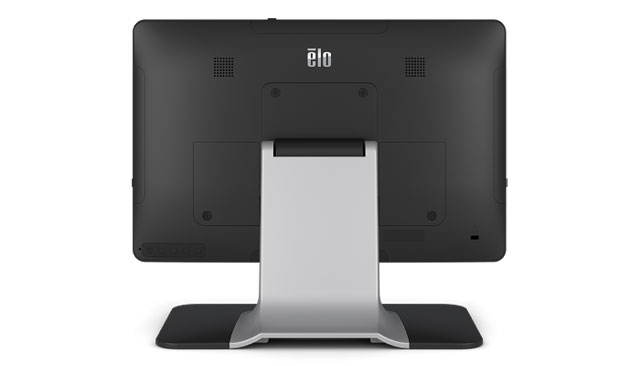

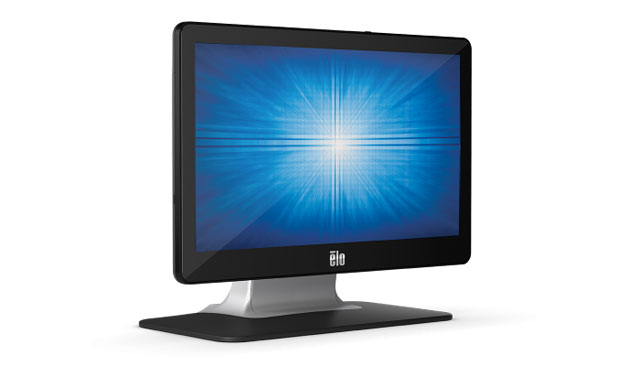

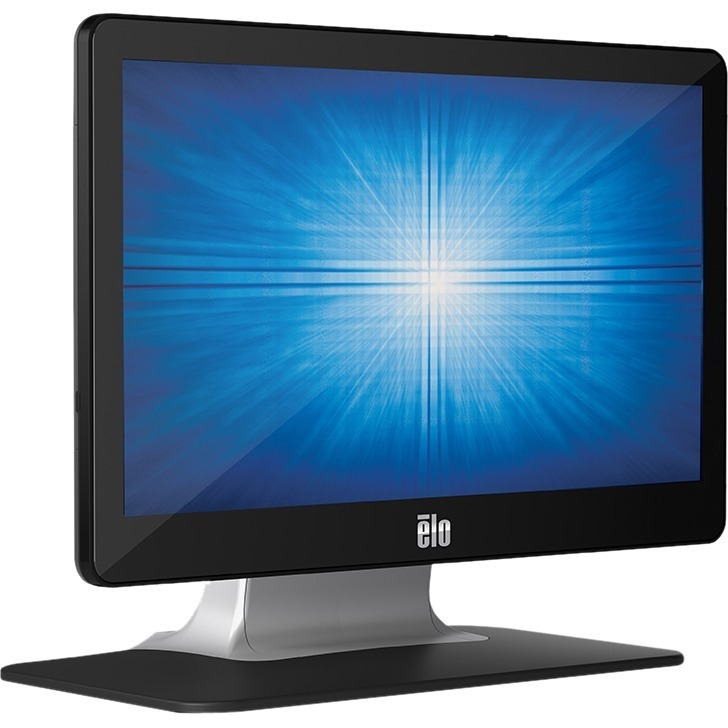

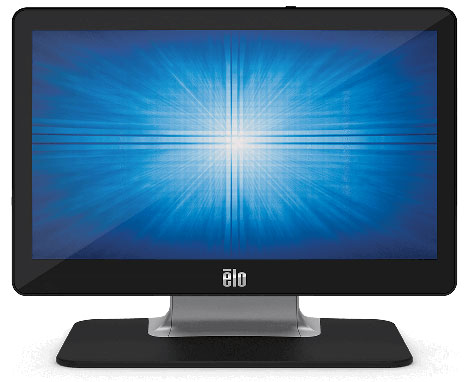

Elo 1302L Touchscreen Model Overview
The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor, clean design aesthetic and flexible mounting options, Elo's 1302L is well-suited for POS, self-service, signage and customer-facing point of interaction. With a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint. The Elo 1302L 13-inch touchscreen monitor delivers a professional-grade interactive solution with Elo's industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and USB Type C, VGA and HDMI video connectors. Designed for commercial use, the 1302L simplifies business operations by delivering energy efficiency and versatile accessory options - from EMV and MSR payment devices to a barcode scanner and customer facing display. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Elo E683204 Touchscreen Overview

Elo's 1302L Touchscreen Monitor

The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

The 1302L is the first of its kind in the commercial market, providing a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.

One for Your Customers.

The 1302L offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

  • Retail
  • Hospitality
  • Government
  • Restaurant
  • Industrial

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

EMV Cradles

The ability to take payment is essential to complete a transaction. The 1302L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Barcode Scanner

Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

MSR

Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Mount with Flexibility

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Brilliant Displays from 10 to 27-inches

The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

Technical Information
Screen Size Class:
13"
Viewable Screen Size:
13.3"
Screen Mode:
Full HD
Response Time:
25 ms
Aspect Ratio:
16:9
Horizontal Frequency:
30 kHz to 75 kHz
Vertical Frequency:
60 Hz to 60 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
800:1
Brightness:
300 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
USB Type-C:
Yes
Total Number of USB Type-C Ports:
1
Built-in Devices
Webcam:
No
Microphone:
Yes
Power Description
Operating Power Consumption:
9.80 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Black
Height:
8.3"
Width:
12.8"
Depth:
1"
Height with Stand:
10.22"
Width with Stand:
12.84"
Depth with Stand:
5.91"
Weight (Approximate):
2.69 lb
Weight with Stand (Approximate):
5.11 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0818263174785, 0818275619267, 0843173109374
UPC: 818263174785, 818275619267, 843173109374
EAN: 0818263174785, 0818275619267, 0843173109374
UNSPSC: 43211903
