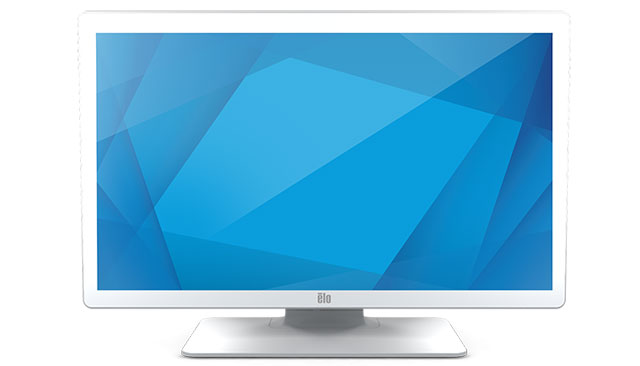

Elo E659793 Touchscreen

Part Number: E659793
Model: 2703LM
Add to My Shopping List Add to Compare
$1,195.58
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
27"
Viewable Screen Size
27"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  27" Touchscreen Monitor, Elo 2703LM, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 1000:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, White, 3-Year Warranty, DICOM 14, Box Includes Quick Install Guide, 3x Tie Wraps, VGA Cable (Part# E810917), HDMI Cable, Touch USB Cable (Part# E408193), Audio Cable, Power Brick (Part# E323104), NA Power Cable, EU Power Cable, EEI Label, DICOM Calibration Sheet, Stand (Part# E510042)
Explore all Elo 2703LM 27-Inch Medical Grade Touchscreens
Add to Quote
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen
Elo E659793 Touchscreen Elo E659793 Touchscreen Elo E659793 Touchscreen Elo E659793 Touchscreen Elo E659793 Touchscreen Elo E659793 Touchscreen Elo E659793 Touchscreen
Full specifications (PDF)

Elo 2703LM 27-Inch Medical Grade Touchscreen Model Overview

The Elo 2703LM 27" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 03-Series medical monitors comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E659793 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Full specifications (PDF)
Technical Information
Screen Size Class:
27"
Viewable Screen Size:
27"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms
Response Time Details:
14 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
Backlight Technology:
LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
  • Privacy Filter
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Frequency:
  • 60 Hz
  • 50 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
White
Product Color:
White
Height:
15.5"
Width:
25.5"
Depth:
1.8"
Height with Stand:
17.75"
Width with Stand:
25.50"
Depth with Stand:
9.17"
Weight (Approximate):
15.72 lb
Weight with Stand (Approximate):
22.64 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0843173135496
UPC: 843173135496
EAN: 0843173135496
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • POS Monitor Accessories (7)
  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (4)

Recommended Accessories for Model: Elo E659793 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E659793

Top POS Monitor Accessories Purchased With Elo E659793

  • Elo E352392 Accessory
    Elo E352392 Accessory
    Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White
    Item on backorder — chat for lead time
    $189.47
    Add to Quote
  • Elo E353170 Accessory
    Elo E353170 Accessory
    Carrying and Protective Accessories, ELO, 27-Inch Privacy Screen, Compatible with the 02-/03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $403.00
    Add to Quote
  • Elo E593253 Accessory
    Elo E593253 Accessory
    Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $202.73
    Add to Quote
See All POS Monitor Accessories for Elo E659793 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E659793

Top Touchscreen Accessories Purchased With Elo E659793

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E043382 Accessory
    Elo E043382 Accessory
    Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series
    Item on backorder — chat for lead time
    $133.83
    Add to Quote
  • Elo E810917 Accessory
    Elo E810917 Accessory
    Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens
    Item on backorder — chat for lead time
    $29.89
    Add to Quote
See All Touchscreen Accessories for Elo E659793 Touchscreen >

Frequently Asked Questions

Yes, the Elo 2703LM is purpose-built for healthcare and fully complies with IEC60601-1 4th edition requirements. It is IP54 certified to support healthcare environments and features DICOM Part 14 functionality to enhance clinical review. The monitor is well-suited for deployment in operating rooms, patient rooms, laboratories, pharmacies, and integration into medical devices.

The Elo 2703LM features projected capacitive 10-touch technology, which provides consistent and responsive touch performance. This technology is designed for long-lasting quality and reliability in demanding healthcare and clinical settings where accurate touch input is critical.

The Elo 2703LM is a 27-inch LCD touchscreen monitor with a 16:9 aspect ratio and Full HD resolution (1920 x 1080). It delivers 270 nits brightness and a 1000:1 contrast ratio with 16.7 million colors, providing clear visibility for EMR documentation and medical image viewing.

The Elo 2703LM supports multiple connectivity options including RS232 Serial and USB interfaces for touch control. The monitor includes VGA and HDMI cables for video input, along with a touch USB cable and audio cable, allowing flexible integration with your existing healthcare IT infrastructure.

Yes, the Elo 2703LM is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls, or medical carts. Optional handles can be added to easily move or rotate the display to a comfortable orientation, making it adaptable for different clinical environments and workflows.

We offer the Elo 2703LM with a 3-year warranty to ensure long-lasting quality and peace of mind. The monitor ships with comprehensive documentation including a quick install guide, DICOM calibration sheet, and all necessary cables and accessories. Contact us today at barcodesinc.com for additional support or to discuss your healthcare deployment needs.

The Elo E659793 Touchscreen is also known as ELO-E659793 or E659793.
