Elo E659395 Touchscreen

Part Number: E659395
Model: 2403LM
Add to My Shopping List Add to Compare
$1,174.79
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
24"
Viewable Screen Size
23.8"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

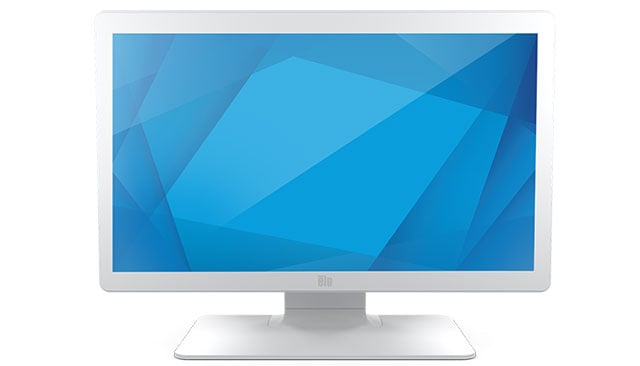

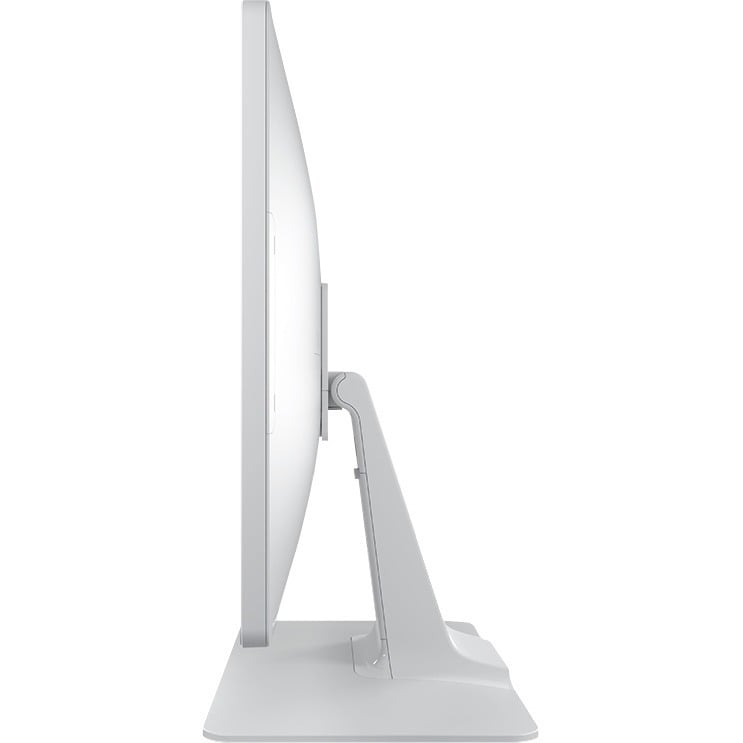

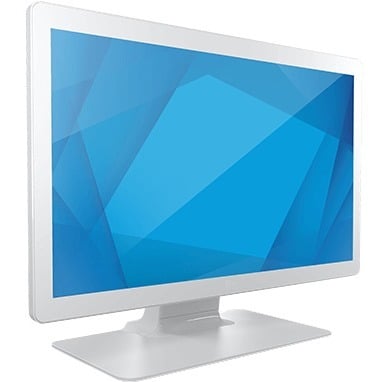

  24" Touchscreen Monitor, Elo 2403LM, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 225 nits Brightness (typical), 1000:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, White, 3-Year Warranty, DICOM 14, Box Includes Quick Install Guide, 3x Tie Wraps, VGA Cable (Part# E810917), HDMI Cable, Touch USB Cable (Part# E408193), Audio Cable, Power Brick (Part# E593253), NA Power Cable (Part# E593865), EU Power Cable (Part# E594264), EEI Label, DICOM Calibration Sheet.
Explore all Elo 2403LM Medical Grade Touchscreens
Add to Quote
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen
Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen Elo E659395 Touchscreen
Full specifications (PDF)

Elo 2403LM Medical Grade Touchscreen Model Overview

The Elo 2403LM 24" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 03-Series medical monitors comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E659395 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Full specifications (PDF)
Technical Information
Screen Size Class:
24"
Viewable Screen Size:
23.8"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
16 ms
Response Time Details:
16 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
Backlight Technology:
LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
  • Privacy Filter
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
White
Product Color:
White
Height:
13.9"
Width:
22.6"
Depth:
1.7"
Height with Stand:
17.04"
Width with Stand:
22.62"
Depth with Stand:
9.17"
Weight (Approximate):
14.75 lb
Weight with Stand (Approximate):
21.61 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0843173135472
UPC: 843173135472
EAN: 0843173135472
UNSPSC: 43211903
