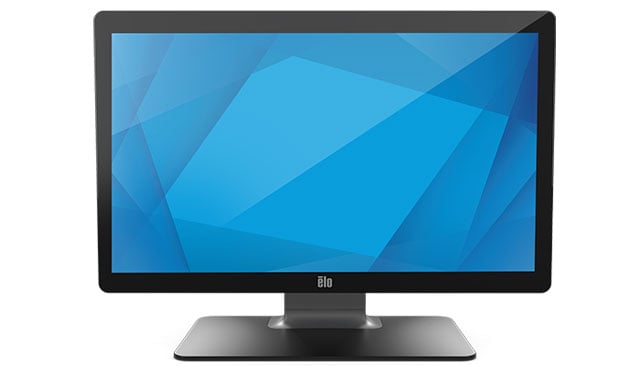

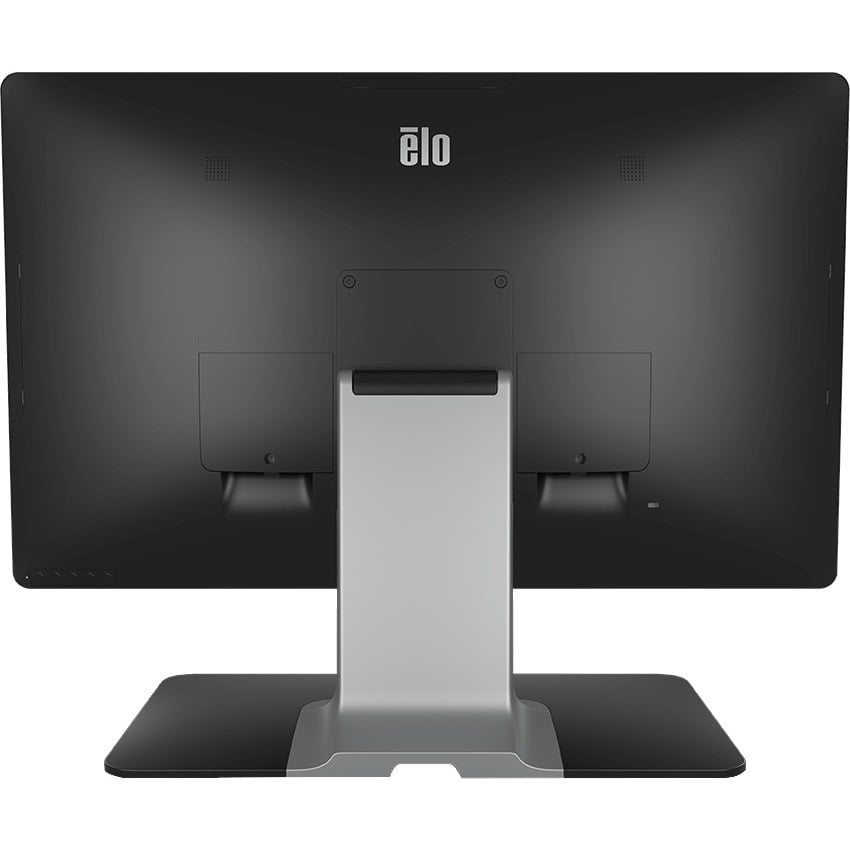

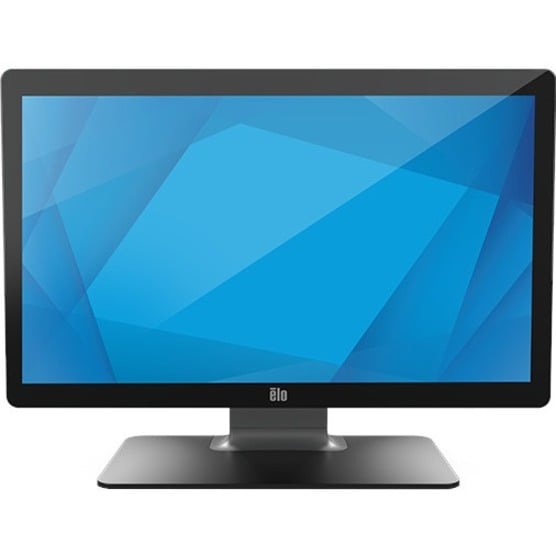

Elo E659195 Touchscreen

Part Number: E659195
Model: 2403LM
Add to My Shopping List Add to Compare
$1,133.50
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
24"
Viewable Screen Size
23.8"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  24" Touchscreen Monitor, Elo 2403LM, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 225 nits Brightness (typical), 1000:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, Stand, Black, 3-Year Warranty, DICOM 14, Box Includes Quick Install Guide, 3x Tie Wraps, VGA Cable (Part# E810917), HDMI Cable, Touch USB Cable (Part# E408193), Audio Cable, Power Brick (Part# E593253), NA Power Cable (Part# E593865), EU Power Cable (Part# E594264), EEI Label, DICOM Calibration Sheet.
Explore all Elo 2403LM Medical Grade Touchscreens
Add to Quote
Elo E659195 Touchscreen
Elo E659195 Touchscreen
Elo E659195 Touchscreen
Elo E659195 Touchscreen Elo E659195 Touchscreen Elo E659195 Touchscreen
Full specifications (PDF)

Elo 2403LM Medical Grade Touchscreen Model Overview

The Elo 2403LM 24" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 03-Series medical monitors comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E659195 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy | Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Full specifications (PDF)
Technical Information
Screen Size Class:
24"
Viewable Screen Size:
23.8"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
16 ms
Response Time Details:
16 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Wall Mountable
  • Shelf Mount
  • Pole Mount
  • Arm-mountable
  • Cart Mountable
Backlight Technology:
LED
Features:
  • Anti-glare
  • OSD/Power Lock
  • On-screen Display (OSD)
  • Dust Resistant
  • Ergonomic Design
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
USB:
Yes
VGA:
Yes
Number of USB Ports:
4
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Operating Power Consumption:
15.68 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
Black
Product Color:
Black
Height with Stand:
17.04"
Width with Stand:
22.62"
Depth with Stand:
9.17"
Miscellaneous
Package Contents:
  • 2403LM 24" Medical Grade Touchscreen Monitor
  • Quick Install Guide
  • 3 x Tie wraps
  • VGA cable
  • HDMI cable
  • Touch USB cable
  • Audio cable
  • Power brick (E323104)
  • NA Power cable
  • EU Power cable
  • EEI Label
  • DICOM calibration sheet
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173135465
UPC: 843173135465
EAN: 0843173135465
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • POS Monitor Accessories (7)
  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (4)

Recommended Accessories for Model: Elo E659195 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E659195

Top POS Monitor Accessories Purchased With Elo E659195

  • Elo E352392 Accessory
    Elo E352392 Accessory
    Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White
    Item on backorder — chat for lead time
    $189.47
    Add to Quote
  • Elo E352977 Accessory
    Elo E352977 Accessory
    Carrying and Protective Accessories, ELO, 24-Inch Privacy Screen, Compatible with the 02-/03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $352.00
    Add to Quote
  • Elo E593253 Accessory
    Elo E593253 Accessory
    Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $202.73
    Add to Quote
See All POS Monitor Accessories for Elo E659195 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E659195

Top Touchscreen Accessories Purchased With Elo E659195

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E043382 Accessory
    Elo E043382 Accessory
    Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series
    Item on backorder — chat for lead time
    $133.83
    Add to Quote
  • Elo E810917 Accessory
    Elo E810917 Accessory
    Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens
    Item on backorder — chat for lead time
    $29.89
    Add to Quote
See All Touchscreen Accessories for Elo E659195 Touchscreen >

Frequently Asked Questions

Yes, the Elo 2403LM is purpose-built for healthcare and complies with IEC60601-1 4th edition requirements. It is IP54 certified to support healthcare environments and features DICOM Part 14 functionality to enhance clinical review for healthcare providers. We offer this medical-grade touchscreen monitor to support EMR documentation, image viewing, clinical collaboration, and integration into medical devices.

The Elo 2403LM features projected capacitive 10-touch technology, which provides responsive and accurate multi-touch input. This best-in-class touchscreen technology is designed to enhance clinical workflows and patient engagement in healthcare settings.

The Elo 2403LM is a 24-inch touchscreen monitor with a 16:9 aspect ratio and Full HD resolution (1920 x 1080). It delivers 225 nits brightness and a 1000:1 contrast ratio, with support for 16.7 million colors and an anti-glare, zero-bezel design for professional clinical environments.

The Elo 2403LM supports multiple connectivity options including RS232 Serial and USB touch controller interfaces. It includes VGA and HDMI cables for video input, along with a touch USB cable and audio cable for comprehensive integration into healthcare IT systems.

The Elo 2403LM is well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy, and integration into medical devices. Its compact form factor and sleek design make it ideal for various healthcare environments and clinical workflows.

The Elo 2403LM comes with a 3-year warranty and includes comprehensive documentation such as a quick install guide and DICOM calibration sheet. Contact us today at barcodesinc.com for additional support, accessories, and deployment assistance for your healthcare touchscreen solution.

The Elo E659195 Touchscreen is also known as ELO-E659195 or E659195.
