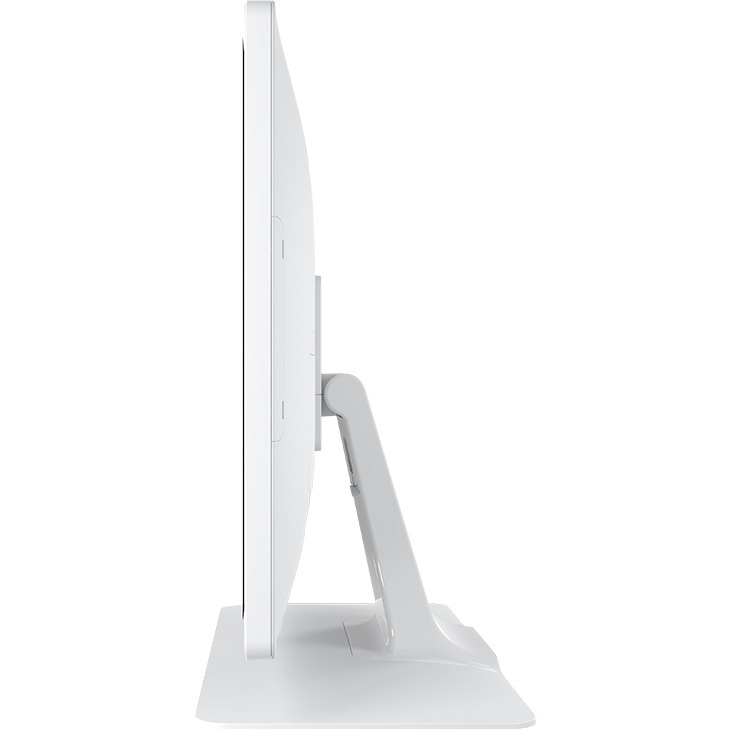

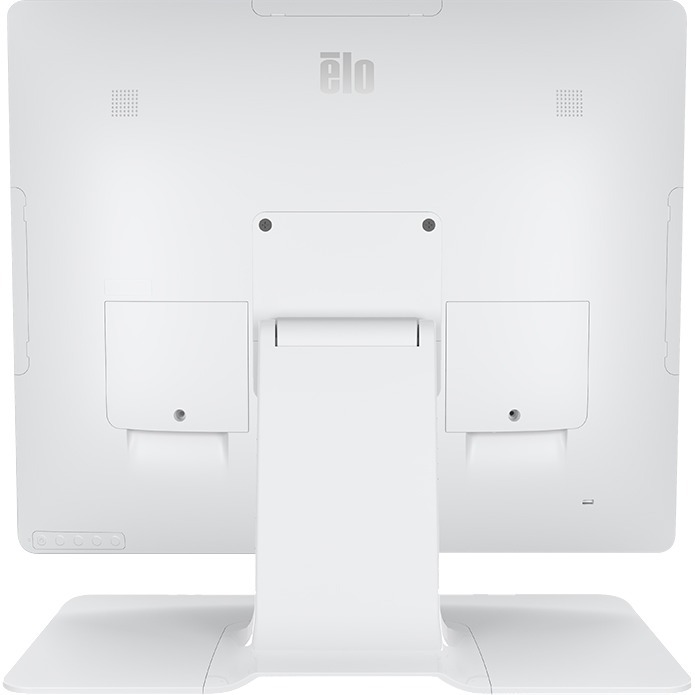

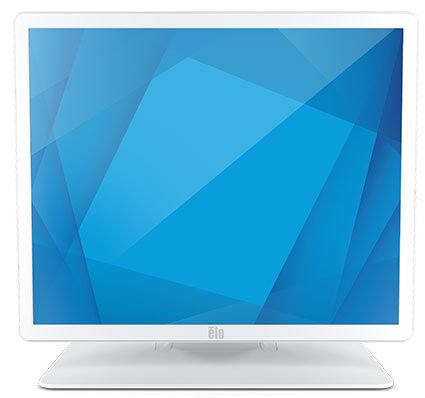

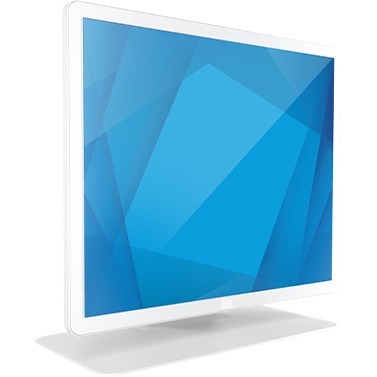

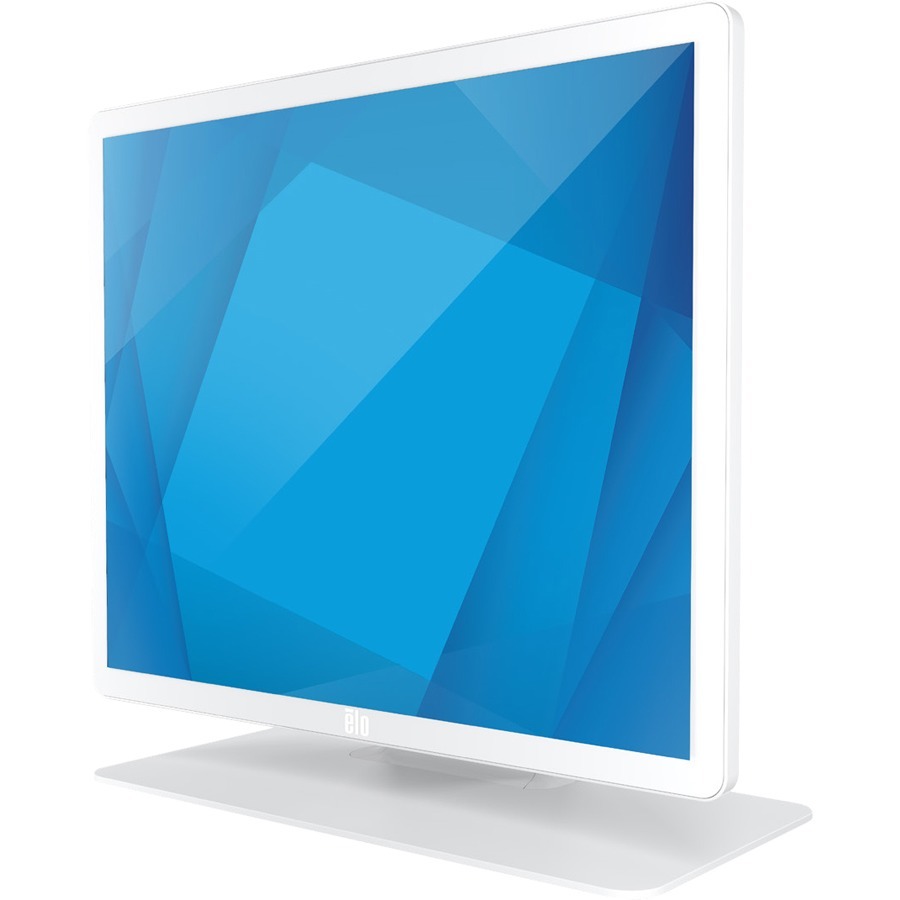

Elo E658586 Touchscreen

Part Number: E658586
Model: 1903LM
Add to My Shopping List Add to Compare
$1,048.83
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
19"
Viewable Screen Size
19"
Panel Technology
Thin Film Transistor (TFT)
Response Time
14 ms

Product Description:

  19" Touchscreen Monitor, Elo 1903LM , Desktop LCD, 5:4 Aspect Ratio, Projected Capacitive 10-Touch, 1280 x 1024, 16.7 million Colors, 225 nits Brightness (typical), 1000:1 Contrast Ratio (typical), RS232 Serial/USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, White, 3-Year Warranty, DICOM 14, Box Includes Quick Install Guide, 3x Tie Wraps, VGA Cable (Part# E810917), HDMI Cable, Touch USB Cable (Part# E408193), Audio Cable, Power Brick (Part# E323104), NA Power Cable, EU Power Cable, EEI Label, DICOM Calibration Sheet.
Explore all Elo 1903LM Medical Grade Touchscreens
Add to Quote
Elo E658586 Touchscreen
Elo E658586 Touchscreen
Elo E658586 Touchscreen
Elo E658586 Touchscreen
Elo E658586 Touchscreen
Elo E658586 Touchscreen Elo E658586 Touchscreen Elo E658586 Touchscreen Elo E658586 Touchscreen Elo E658586 Touchscreen
Full specifications (PDF)

Elo 1903LM Medical Grade Touchscreen Model Overview

The Elo 1903LM 19-inch Medical Grade Touchscreen Monitor is designed to enhance clinical workflows in healthcare settings. Featuring DICOM Part 14 compliance, this monitor ensures consistent image review, making it ideal for EMR documentation, image viewing, and clinical collaboration. Its sleek, compact design suits various environments within laboratories, pharmacies, and medical devices. Certified with IEC60601-1 standards and IP54 rated for protection against moisture and dust, the Elo 1903LM integrates seamlessly into any medical application, ensuring reliability and engagement with patients.


Key Features
  • DICOM Part 14 compliant for reliable image review
  • 10-touch technology supports finger, glove, and stylus usage
  • Available in 19-inch square and larger widescreen displays
  • Multiple mounting options including stand, wall, and pole mounts
  • IP54 certified for healthcare environments

Specifications
  • Color: Black or White
  • Diagonal Size: 19 inches / 482.6 mm
  • Active Touch Area: 14.76" x 11.80" / 374.78 mm x 299.83 mm
  • Touch Technology: TouchPro PCAP
  • Number of Touches: 10
  • Native Resolution: 1280 x 1024
  • Brightness: 250 nits (Panel), 225 nits (with TouchPro PCAP)
  • Response Time: 14 msec
  • Contrast Ratio: 1000:1
  • Operating Temperature: 0°C to 40°C
  • Warranty: 3 years standard, with extended options available
  • Weight: 13.9 lbs with stand / 9.48 lbs without stand
Elo E658586 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Unified Style Across Sizes

This product is not an FDA-approved "medical device" or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.

Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Number of USB Ports:
4
Power Description
Operating Power Consumption:
16.36 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
White
Product Color:
White
Height with Stand:
15.66"
Width with Stand:
16.91"
Depth with Stand:
7.61"
Weight (Approximate):
9.48 lb
Weight with Stand (Approximate):
13.90 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0843173135434
UPC: 843173135434
EAN: 0843173135434
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • POS Monitor Accessories (7)
  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (5)

Recommended Accessories for Model: Elo E658586 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E658586

Top POS Monitor Accessories Purchased With Elo E658586

  • Elo E804330 Accessory
    Elo E804330 Accessory
    Mounting Hardware & Stands, ELO, 24 and 27-Inch Replacement Stand, 02-/03-Series Desktop Monitors, Color: Black
    Item on backorder — chat for lead time
    $201.50
    Add to Quote
  • Elo E352392 Accessory
    Elo E352392 Accessory
    Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White
    Item on backorder — chat for lead time
    $189.47
    Add to Quote
  • Elo E593253 Accessory
    Elo E593253 Accessory
    Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $202.73
    Add to Quote
See All POS Monitor Accessories for Elo E658586 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E658586

Top Touchscreen Accessories Purchased With Elo E658586

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E043382 Accessory
    Elo E043382 Accessory
    Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series
    Item on backorder — chat for lead time
    $133.83
    Add to Quote
  • Elo E810917 Accessory
    Elo E810917 Accessory
    Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens
    Item on backorder — chat for lead time
    $29.89
    Add to Quote
See All Touchscreen Accessories for Elo E658586 Touchscreen >

Frequently Asked Questions

The Elo 1903LM is purpose-built for healthcare and complies with IEC60601-1 4th edition requirements, ensuring it meets critical medical device safety standards. Additionally, the monitor is IP54 certified, making it suitable for deployment in healthcare environments including laboratories and pharmacies where durability and cleanliness are essential.

The Elo 1903LM features a 19-inch LCD display with a 5:4 aspect ratio and 1280 x 1024 resolution, delivering 16.7 million colors with 225 nits brightness and a 1000:1 contrast ratio. The monitor uses projected capacitive 10-touch technology and includes an anti-glare, zero-bezel design optimized for clinical environments.

Yes, the Elo 1903LM includes DICOM Part 14 functionality, which enhances clinical review capabilities for healthcare providers and supports medical image viewing applications. The monitor comes with a DICOM calibration sheet to ensure accurate color and grayscale representation for diagnostic purposes.

The monitor supports multiple connectivity interfaces including RS232 serial and USB touch controller connections, along with VGA and HDMI video inputs. We include all necessary cables in the box—VGA, HDMI, touch USB, and audio cables—to streamline deployment in your healthcare facility.

The Elo 1903LM is well-suited for EMR documentation, medical image viewing, clinical collaboration, laboratory and pharmacy deployment, and integration into medical devices. Its compact form factor and sleek design make it ideal for healthcare environments where space and aesthetic integration are important considerations.

The Elo 1903LM comes with a 3-year warranty and includes a quick install guide to support rapid deployment. Contact us today to discuss warranty options, technical support, and integration assistance for your healthcare facility's touchscreen needs.

The Elo E658586 Touchscreen is also known as ELO-E658586 or E658586.
