Elo E655204 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

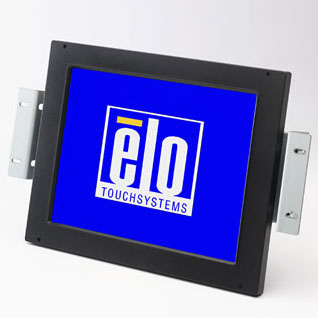

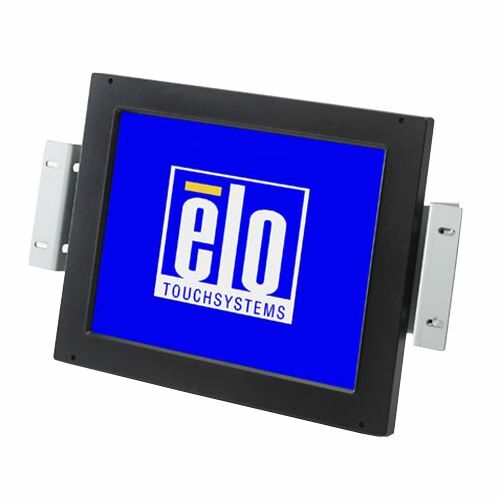

Elo Entuitive 1247L - 12" IntelliTouch (surface wave), with Dual Serial/USB interface, black.
12" Flat Panel Vertical Mount Touch Monitor with Galvanized Sheet Metal and Black Plastic Bezel

Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.

General Information

  • Product Type: LCD Touchscreen Monitor
  • Product Series: 3000
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1247L
  • Product Name: 3000 Series 1247L Touch Screen Monitor

Technical Information

  • Screen Mode: SVGA
  • Mount Type: Desk Mountable
  • Screen Size: 12"
  • Aspect Ratio: 4:3
  • Response Time: 40 ms
  • Screen Surface: Anti-glare

Physical Characteristics

  • Height: 9.5"
  • Width: 11.9"
  • Depth: 2.4"
  • Color: Black
  • Weight (Approximate): 8.80 lb

Interfaces/Ports

  • USB: Yes

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 320 Nit
  • Color Supported: 262,144 (6-bit)
  • Maximum Resolution: 800 x 600
  • Contrast Ratio: 500:1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: Mac

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Power Description

  • Input Voltage: 220 V AC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model Entuitive 1247L
Screen Size 12
Display Type LCD
Touch Technology Surface Wave
Form Factor Rear Mount
Color Black
Interface USB & Serial/RS-232, RS-232 Serial
