Elo E654071 Touchscreen

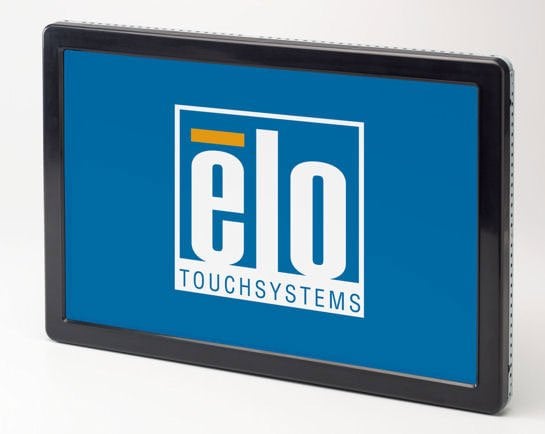

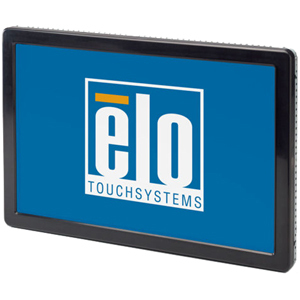

Elo 2239L - 22" LCD Open-Frame Touchmonitor (IntelliTouch (surface wave) Touch Technology, Dual Serial-USB Touch Interface and Anti-glare Surface Treatment)
Pure-glass Acoustic Pulse Recognition technology combines optical quality, durability and drift-free stability, with excellent drag properties.

The ELO 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements Elo's expanded family of touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact 3000-series touchmonitor is "designed for touch, " with Elo's proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2239L
  • Product Name: 2239L Touch Screen Monitor

Physical Characteristics

  • Height: 20.9"
  • Width: 13.9"
  • Depth: 3.1"
  • Color: Black
  • Weight (Approximate): 18.70 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 270 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 2239L
Screen Size 22
Touch Technology Surface Wave
Display Type LCD
Form Factor Wall Mount
Color Black
Interface USB & Serial/RS-232

Recommended Accessories for Model: Elo 2239L Touchscreen
Elo Accessories (E005277)
Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L.
In Stock: Ships Same Day
$43.40
+ Add to Quote
Elo Service Contracts - 2 year (E794114)
Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
$185.00
+ Add to Quote
Elo (E177037)
Magnetic stripe reader, gray, field-installable. Compatible with ELO 1515L.
In Stock: Ships Same Day
$76.00
+ Add to Quote
Elo (D82064-000)
Black, soft tip stylus pen for Intellitouch monitors
In Stock: Ships Same Day
$25.70
+ Add to Quote
Elo (E860319)
Front Mount Bezel (Converts Rear to Front Mount) for the 1739L
In Stock: Ships Same Day
$104.00
+ Add to Quote

The Elo E654071 is also known as Elo Touch Systems ELO-E654071 .
