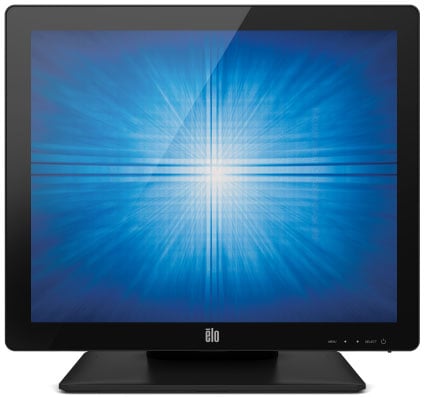

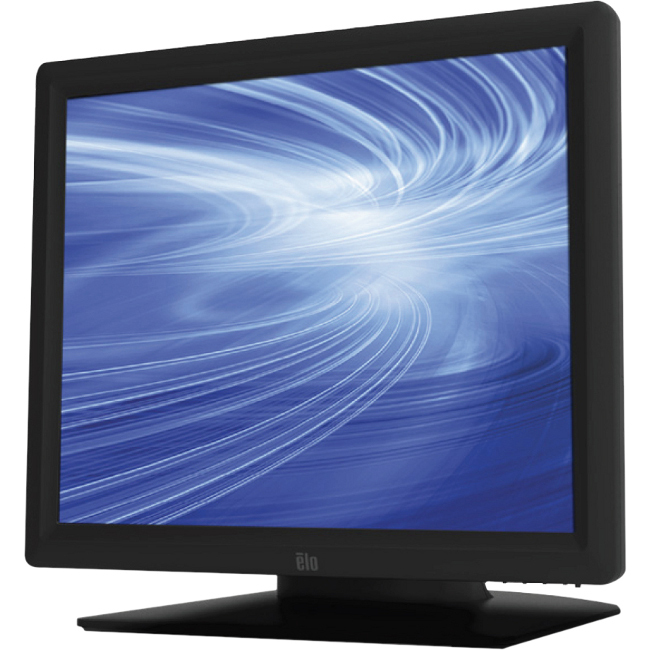

The 1717L 17-inch LED Desktop Touchmonitor is designed for heavy public use, combining a sleek appearance with advanced touch technology. Its rugged, modern form factor makes it an ideal solution for high-traffic environments such as retail outlets and hospitality settings. Equipped with options like AccuTouch resistive and IntelliTouch surface acoustic wave, this touchmonitor not only enhances interaction but also ensures reliability and durability. Enjoy power efficiency with 40% energy savings thanks to LED technology while benefiting from a standard three-year warranty.
Key Features:
Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
Antiglare or Clear glass
Black or White color options
Built for Touch Reliability
40% Energy Savings using LED Technology
Integrated cable management
Space-saving design
Desktop, wall or VESA mounting
Specifications:
Model: 1717L
Color: Black or White
Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
Monitor Thickness: 1.7 inches / 43 mm
Diagonal Size: 17.0"
Native Resolution: 1280 x 1024
Brightness: 250 nits (LCD Panel)
Power Consumption: 20W (Typical ON), 1.8W (Sleep), 1.4W (Off)
Weight: 5.4 kg / 11.9 lb.
Touch Interface: Serial (RS232) and USB
Warranty: 3 years standard
Elo E649473 Touchscreen Overview
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, loyalty systems, and shelf-level and countertop interactive digital signage are found.
The 1717L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the- art LED backlights in the display panels.
What touchscreen technologies are available for the Elo 1717L?
The Elo 1717L offers a choice of four touchscreen technologies to suit different environments. AccuTouch five-wire resistive is ideal for retail and hospitality settings where liquid, food, and grease exposure is common. For dry retail and hospitality applications requiring superior optical quality, both IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel options are available. Contact us today to select the right touch technology for your application.
Can the Elo 1717L be wall-mounted or pole-mounted?
Yes, the Elo 1717L supports multiple mounting options including wall- and pole-mount via standard VESA mount patterns, as well as tabletop placement using the included desktop stand. Capped through-mount holes on the base ensure table-top security. Visit barcodesinc.com to explore all available mounting configurations for your installation needs.
Does the Elo 1717L support magnetic stripe reader integration?
The Elo 1717L offers an optional three-track magnetic stripe reader (MSR) that is easily installed by the user and programmable to either HID or Keyboard Emulation mode via USB. This integrated solution eliminates the need for external brackets or attachments, providing a clean, professional appearance for point-of-sale and loyalty systems. Contact us today for MSR availability and configuration details.
What are the typical use cases for the Elo 1717L touchscreen monitor?
The Elo 1717L is well-suited for point-of-sale, point-of-information, point-of-service, interactive signage, and loyalty systems in retail and hospitality environments. Its rugged built-for-touch design, stylish thin profile, and retail-focused feature set make it an attractive solution for commercial touchscreen applications. We offer the 1717L as a proven solution for continuous public-facing use.
What video and touch controller interfaces does the Elo 1717L support?
The Elo 1717L features a VGA video interface for display connectivity and supports both RS232 Serial and USB touch controller interfaces. This dual-interface design provides flexibility for integration with various point-of-sale systems and legacy equipment. Contact us today to confirm compatibility with your specific system requirements.
Is the Elo 1717L energy-efficient and environmentally friendly?
Yes, the Elo 1717L is designed with environmental responsibility in mind, featuring state-of-the-art LED backlights that reduce power consumption while maintaining excellent display quality. The monitor is lightweight and uses less power than comparable models, and it complies with RoHS, China RoHS, and WEEE environmental standards. We offer this touchscreen as an eco-conscious choice for commercial installations.
The Elo E649473 Touchscreen is also known as
ELO-E649473
or E649473.
Full specifications (PDF)
