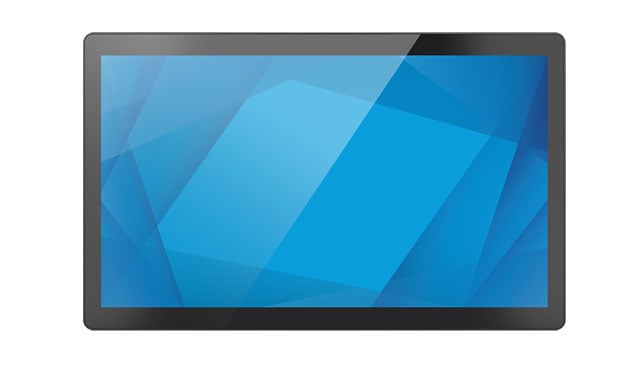

Elo E608662 POS Touch Terminal

Part Number: E608662
Model: 24-Inch I-Series 3
Add to My Shopping List Add to Compare
$3,048.83
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cooling Fan
Fanless
Bluetooth
Yes
Bluetooth Standard
Bluetooth 5.2
Form Factor
All-in-One

Product Description:

  POS Touch Terminal, ELO 24-Inch I-Series 3, 23.8", No OS, Full HD, 1920 X1080 Display, Intel Core i5, 8GB RAM, 128GB SSD, PCAP 10-Touch, Clear, Wi-Fi, Ethernet, Bluetooth, No Stand, Black, Worldwide
Explore all Elo 24-Inch I-Series 3 POS Systems
Add to Quote
Elo E608662 POS Touch Terminal
Elo E608662 POS Touch Terminal
Elo E608662 POS Touch Terminal
Elo E608662 POS Touch Terminal Elo E608662 POS Touch Terminal Elo E608662 POS Touch Terminal
Full specifications (PDF)

Elo 24-Inch I-Series 3 POS System Model Overview

The ELO I-Series 3 with Intel is a completely redesigned, interactive platform that offers brilliant and beautiful visuals. It has a Full HD IPS touchscreen with easy-to-clean edge-to-edge glass. Modularity while having a fanless IP54 rating offerrs endless versatility while using the I-Series 3. It also features Trusted Platform Modules (TPM) and Intel vPro while powered by Intel's 12th-gen processors. The I-Series 3 comes with USB-C, Gigabit LAN, powered RJ50 Serial, Wi-Fi, and Bluetooth 5.2 for maximum connectivity. It also supports multiple operating systems including Windows, Linux, and ChromeOS Flex.
Elo E608662 POS Touch Terminal Overview

Modular design. Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect

Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, securityand performance.

Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.

Enhanced connectivity for all your accessories.

  • USB-C full featured
  • Gigabit LAN
  • Powered RJ50 Serial
  • 4x USB 3.0
  • 4x Micro-USB Edge Connect
  • WiFi & Bluetooth 5.2

Supportfor Linux.

For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

EloBridge the gap between Windows and Android.

Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.

Get peace of mindwith EloCare.

  • Advance Unit Replacement
  • Extended Warranty
  • Professional Services
Full specifications (PDF)
Technical Information
Cooling Fan:
Fanless
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.2
Form Factor:
All-in-One
Features:
Edge-to-Edge Glass Design
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Speed:
4.40 GHz
Processor Model:
i5-1245UL
Processor Cache:
12 MB
Memory
Standard Memory:
8 GB
Memory Technology:
DDR5 SDRAM
Storage
Flash Memory Capacity:
128 GB
Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
M.2
Display & Graphics
Screen Size:
23.8"
Active Display Size (Horizontal):
20.75"
Active Display Size (Vertical):
11.67"
Display Screen Type:
LED
Panel Technology:
In-plane Switching Technology (IPS)
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touch Points:
10
Aspect Ratio:
16:9
Contrast Ratio:
1,000:1
Response Time:
16 ms
Color Supported:
16.7 Million Colors
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Xe Graphics
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Serial Port:
Yes
RJ-50:
Yes
Number of Micro USB 2.0 Ports:
4
Number of USB 3.0 Ports:
4
Number of USB Type C Ports:
1
Built-in Devices
Number of Speakers:
2
Speaker Power:
2 W
Power Description
Power Source:
  • AC Power
  • DC Power
Physical Characteristics
Color Family:
Black
Product Color:
Black
Weight (Approximate):
14.80 lb
Miscellaneous
Ingress Protection (IP) Rating:
IP54
Energy Star:
Yes
Item Numbers
GTIN: 0843173153384
UPC: 843173153384
EAN: 0843173153384

Recommended Accessories

Category

  • 2D Barcode Scanner (2)
  • Best Barcode Scanner (2)
  • Cables, Connectors, and Adapters (1)
  • Elo Point of Sale System (1)
  • LCD Touchscreen (2)
  • Pos Workstation Accessories (1)
  • Power Device (1)
  • Spare Parts (2)
  • Touchscreen Accessories (5)
  • Webcams (2)

Recommended Accessories for Model: Elo E608662 POS Touch Terminal

Top 2D Barcode Scanner Purchased With Elo E608662

  • Elo E384627 Barcode Scanner
    Elo E384627 Barcode Scanner
    Barcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO Touchscreens
    In Stock
    $401.40
    Add to Quote
  • Elo E245047 Barcode Scanner
    Elo E245047 Barcode Scanner
    Barcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO Touchscreens
    In Stock
    $293.33
    Add to Quote

Top Best Barcode Scanner Purchased With Elo E608662

  • Elo E384627 Barcode Scanner
    Elo E384627 Barcode Scanner
    Barcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO Touchscreens
    In Stock
    $401.40
    Add to Quote
  • Elo E245047 Barcode Scanner
    Elo E245047 Barcode Scanner
    Barcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO Touchscreens
    In Stock
    $293.33
    Add to Quote

Top Cables, Connectors, and Adapters Purchased With Elo E608662

Top Elo Point of Sale System Purchased With Elo E608662

Top LCD Touchscreen Purchased With Elo E608662

  • Elo E683595 Touchscreen
    Elo E683595 Touchscreen
    13.3" Touchscreen Monitor, Elo 1302L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Worldwide. Box Includes HDMI Cable, Touch USB Cable (Part# E710364), Quick Install Guide, EEI Label, Power Brick, NA Power Cable, EU Power Cable, 3x Tie Wraps, 2x Screws for Cable Cover(s).
    Item on backorder — chat for lead time
    $564.55
    Add to Quote
  • Elo E324341 Touchscreen
    Elo E324341 Touchscreen
    10.1" Touchscreen Monitor, Elo 1002L, Desktop LCD, 16:10 Aspect Ratio, Non-Touch 0-Touch, 1280 x 800, 262000 Colors, 350 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB-C, HDMI & VGA Inputs Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year, Requires Display Mount Kit (E835969). Worldwide.
    Item on backorder — chat for lead time
    $331.98
    Add to Quote

Top Pos Workstation Accessories Purchased With Elo E608662

Top Power Device Purchased With Elo E608662

Top Spare Parts Purchased With Elo E608662

Top Touchscreen Accessories Purchased With Elo E608662

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E375343 Accessory
    Elo E375343 Accessory
    Docks & Cradles, ELO, MTO, (NCNR), EMV Cradle for MagTek eDynamo
    Item on backorder — chat for lead time
    $103.76
    Add to Quote
  • Elo E586981 Accessory
    Elo E586981 Accessory
    Docks & Cradles, ELO, EMV Cradle for Ingenico RP457C (with Audio Jack, Bluetooth and USB)
    Item on backorder — chat for lead time
    $89.67
    Add to Quote
See All Touchscreen Accessories for Elo E608662 POS Touch Terminal >

Top Webcams Purchased With Elo E608662

  • Elo E134699 Webcam
    Elo E134699 Webcam
    Webcam, ELO Elo Edge Connect 3D Camera, 3D, 1280 x 800 @ 30fps/640 x 400 @ 60fps, 0.82 ft to 4.92 ft Focus Range, Facial Recognition/Facial Authentication/Gesture Tracking, Self-Service/Access Control/Augmented Reality/Virtual Reality, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
    In Stock
    $545.70
    Add to Quote
  • Elo E201494 Webcam
    Elo E201494 Webcam
    Webcam, ELO Elo Edge Connect Webcam, 2D, 8 MP (3264 x 2448)/Full HD (1920 x 1080)/HD (1280 x 720)/VGA (640 x 480), 3.8 ft to 13 ft Focus Range, Facial Recognition, Self-Service/Virtual Assistant/Augmented Reality, Auto Focus, Micro USB, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.
    In Stock
    $248.11
    Add to Quote

Frequently Asked Questions

The Elo E608662 features a 23.8-inch Full HD IPS touchscreen with 1920 x 1080 resolution and edge-to-edge glass design for easy cleaning. The display uses PCAP 10-touch technology and delivers brilliant visuals ideal for point-of-sale and interactive applications. We offer this terminal as a complete solution for retail and hospitality environments.

The Elo E608662 supports multiple operating systems including Windows, Linux, and ChromeOS Flex, providing flexibility for diverse deployment scenarios. This multi-OS compatibility allows you to choose the platform that best fits your existing infrastructure. Contact us today to discuss which operating system configuration works best for your business needs.

The Elo E608662 is equipped with comprehensive connectivity including USB-C, Gigabit LAN, powered RJ50 Serial, Wi-Fi, and Bluetooth 5.2. These multiple connection options ensure seamless integration with payment systems, peripherals, and network infrastructure in any retail or hospitality setting. Available from us with full technical support for installation and configuration.

Yes, the Elo I-Series 3 E608662 features a fanless design with an IP54 rating, making it durable and reliable in demanding point-of-sale environments. The edge-to-edge glass and sealed construction protect against dust and spills while maintaining easy maintenance. Contact us today to learn more about how this terminal performs in your specific operational conditions.

The Elo E608662 is powered by Intel's 12th-generation processors with an Intel Core i5, paired with 8GB RAM and 128GB SSD storage. It also includes Trusted Platform Modules (TPM) and Intel vPro technology for enhanced security and manageability in enterprise environments. Visit barcodesinc.com to explore configuration options or contact our team for custom specifications.

The Elo I-Series 3 E608662 is a completely redesigned interactive platform offering brilliant visuals, modular architecture, and modern connectivity standards. Its combination of Full HD IPS display, latest Intel processors, fanless IP54-rated design, and support for multiple operating systems represents a significant advancement in POS terminal technology. We offer this next-generation terminal to help modernize your point-of-sale infrastructure.

The Elo E608662 POS Touch Terminal is also known as ELO-E608662 or E608662.
