Elo E607940 Touchscreen


5.0

(1 reviews)

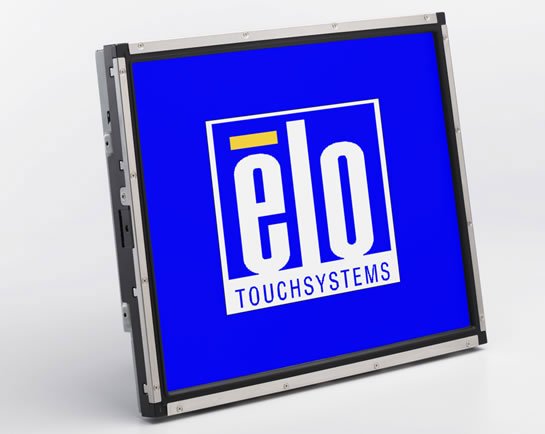

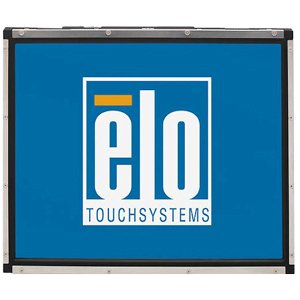

Elo 1739L - 3000 Series 1739L 17 inch LCD Rear-Mount Touchmonitor (AccuTouch Touch Technology, Dual Serial/USB Interface and Anti-glare Surface Treatment). Power supply not included. See accessories.
17" Flat Panel Vertical Mount Touch Monitor in Steel

The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1739L
  • Product Name: 1739L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 12"
  • Width: 14.5"
  • Depth: 1.9"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 8.80 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Power Description

  • Operating Power Consumption: 30 W
  • Input Voltage: 12 V DC

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 1739L
Screen Size 17
Display Type LCD
Touch Technology Resistive
Form Factor Rear Mount
Color Black
Interface USB & Serial/RS-232


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

Overall high quality

By Woody

from Santa Clara

12/17/2013

Verified Buyer

Comments about Elo 1739L E607940:

The VGA cable supplied with the unit was not high enough quality to handle a high resolution picture driven by an amplifier/splitter. The picture smeared and was unacceptable. The purchase of a high quality VGA cable solved the problem. The 1739L itself handled the signal just fine.
