Elo E606958 Touchscreen

The Elo E606958 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 1528L Medical - Elo 1528L 15" LCD Touchscreen Monitor - 4:3 - 8 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.2 Million Colors - 400:1 - 350 Nit - Speakers - DVI - USB - VGA - Dark Gray
  • The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 400:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 350 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

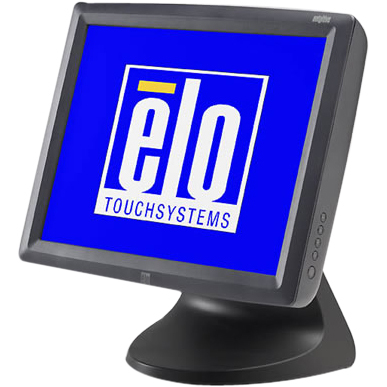

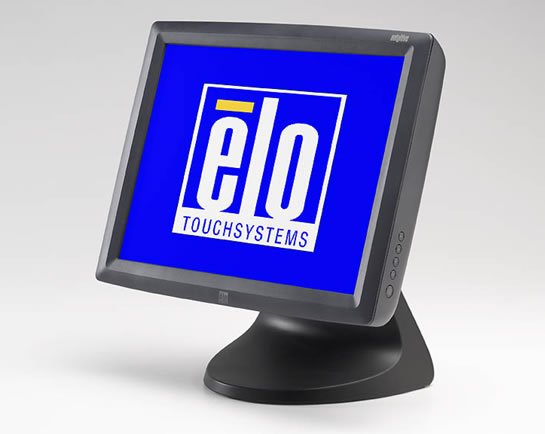

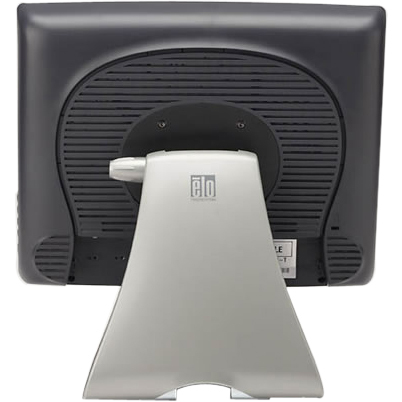

Elo 1528L Medical Touchscreen Model Overview
Elo's 1528L Medical 15" LCD Medical Desktop touchmonitor delivers cost-effective solutions for critical care and patient-centric professionals in the medical and healthcare markets. This compact touch monitor is "designed for touch" with Elo's proven expertise and reliability built in from the start. Simplified worldwide approvals cover the entire monitor that is designed, built, serviced, and supported by Elo, a true single source supplier. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur.
Elo E606958 Touchscreen Overview

The 1528L 15" LCD medical desktop touchmonitor is an integrated solution for medical equipment OEMs and healthcare system integrators seeking a reliable, durable and cost-effective touchmonitor. Typical applications include patient self-service, nurse station and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchmonitor's innovative IPX1 enclosure design, coupled with the addition of a special gasket, sheds water and resists liquid drops and spills.

The 1528L is available with IntelliTouch surface wave touch technology or AccuTouch five-wire resistive touch technology. AccuTouch is the most widely used technology for medical equipment applications. AccuTouch touchscreens can be activated with a gloved hand or any stylus - an important feature for medical applications.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
8 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
150°
Vertical Viewing Angle:
125°
Adjustable Display Angle:
Yes
Features:
Security Lock
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
400:1
Brightness:
350 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Operating Power Consumption:
48 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Dark Gray
Height with Stand:
13.80"
Width with Stand:
14"
Depth with Stand:
8"
Weight (Approximate):
10.58 lb
Weight with Stand (Approximate):
15.21 lb
Item Numbers
GTIN: 7411493314254
EAN: 7411493314254
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E606958 Touchscreen is also known as ELO-E606958 or E606958.
