Elo E606323 POS Touch Terminal
Full specifications (PDF)

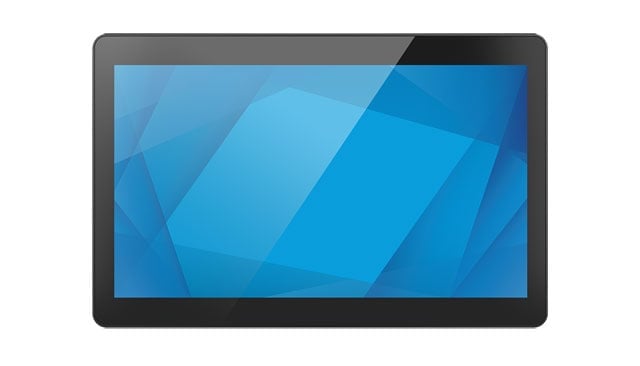

Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal Model Overview
The Elo 15-Inch (16:9) I-Series 3 POS Touch Terminal is a modular, enterprise-grade all-in-one touchscreen platform designed to support a wide range of point-of-sale and self-service applications. Available in both standard POS touch terminal and Slate configurations, the I-Series 3 offers flexible deployment options for countertop, kiosk, or custom-mounted installations. The 15.6-inch Full HD 1920 x 1080 projected capacitive touchscreen delivers responsive, multi-touch performance in a durable design suited for continuous commercial use. With multiple processor, memory, storage, and operating system options, the I-Series 3 can be configured to match varying performance and software requirements.
Key Features
- 15.6" Full HD Touchscreen: 1920 x 1080 resolution with projected capacitive 10-point touch.
- Flexible Form Factors: Available as a standard POS touch terminal with stand or as a Slate unit for kiosk and custom mounting.
- Intel® Processor Options: Configurations available with Intel Pentium®, Celeron®, Core™ i3, or Core™ i5 processors.
- Operating System Options: Available with Windows 10, Windows 11, or no operating system, depending on configuration.
- Enterprise Connectivity: Integrated Wi-Fi, Ethernet, and Bluetooth® support seamless POS peripheral integration.
- Commercial-Grade Design: Built for reliability in retail, hospitality, and self-service environments.
Specifications (Configuration Dependent)
- Display: 15.6" LCD, 16:9 aspect ratio
- Resolution: 1920 x 1080 (Full HD)
- Touch Technology: Projected Capacitive (PCAP), 10-touch
- Processor: Intel Pentium®, or Core™ i5
- Memory: 8 GB or 16 GB RAM options available
- Storage: Solid-state drive (SSD) options available
- Wireless: Wi-Fi and Bluetooth®
- Wired Networking: Ethernet
- Form Factor: POS Touch Terminal or Slate (model dependent)
- Color: Black or gray (model dependent)
Recommended Accessories
Category
- 2D Barcode Scanner (2)
- Best Barcode Scanner (2)
- Cables, Connectors, and Adapters (1)
- Elo Point of Sale System (1)
- LCD Touchscreen (2)
- Mounting Hardware and Stands (1)
- Pos Workstation Accessories (1)
- Power Device (1)
- Spare Parts (2)
- Touchscreen Accessories (5)
- Webcams (2)
Recommended Accessories for Model: Elo E606323 POS Touch Terminal
Top 2D Barcode Scanner Purchased With Elo E606323
-
Elo E384627 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$432.28 -
Elo E245047 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$315.79
Top Best Barcode Scanner Purchased With Elo E606323
-
Elo E384627 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$432.28
-
Elo E245047 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$315.79
Top Cables, Connectors, and Adapters Purchased With Elo E606323
-
Elo E969524 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Elo, 2'' USB-C to USB-C Cable KitIn Stock$33.09
Top Elo Point of Sale System Purchased With Elo E606323
-
$325.59
Top LCD Touchscreen Purchased With Elo E606323
-
Elo E683595 Touchscreen13.3" Touchscreen Monitor, Elo 1302L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 270 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Worldwide. Box Includes HDMI Cable, Touch USB Cable (Part# E710364), Quick Install Guide, EEI Label, Power Brick, NA Power Cable, EU Power Cable, 3x Tie Wraps, 2x Screws for Cable Cover(s).Item on backorder — chat for lead time$564.55 -
Elo E324341 Touchscreen10.1" Touchscreen Monitor, Elo 1002L, Desktop LCD, 16:10 Aspect Ratio, Non-Touch 0-Touch, 1280 x 800, 262000 Colors, 350 nits Brightness (typical), 800:1 Contrast Ratio (typical), USB-C, HDMI & VGA Inputs Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year, Requires Display Mount Kit (E835969). Worldwide.Item on backorder — chat for lead time$331.98
Top Mounting Hardware and Stands Purchased With Elo E606323
-
Elo E767159 Mounting Hardware and StandsMounting Hardware and Stands, ELO, Z10 POS Stand for 15-Inch I-Series 3 Slate with IntelItem on backorder — chat for lead time$135.34
Top Pos Workstation Accessories Purchased With Elo E606323
-
$325.59
Top Power Device Purchased With Elo E606323
-
Elo E845269 Power DevicePower Systems & Supplies, Elo, Backpack® with Intel, Win 11, N97, 8GB RAM, 128GB SSDIn Stock$127.81
Top Spare Parts Purchased With Elo E606323
-
Elo E001003 Spare PartsSpare Parts, Elo, VFD Peripheral Kit for X-Series All-In-OneItem on backorder — chat for lead time$290.23 -
Elo E644767 Spare PartsSpare Parts, Elo, Edge Connect Status Light, Micro USB, RGB LED lights offer various color illuminationIn Stock$88.73
Top Touchscreen Accessories Purchased With Elo E606323
-
Elo E001002 AccessoryCard Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X SeriesIn Stock$169.93 -
Elo E375343 AccessoryDocks & Cradles, ELO, MTO, (NCNR), EMV Cradle for MagTek eDynamoItem on backorder — chat for lead time$112.79 -
Elo E586981 AccessoryDocks & Cradles, ELO, EMV Cradle for Ingenico RP457C (with Audio Jack, Bluetooth and USB)Item on backorder — chat for lead time$97.47
Top Webcams Purchased With Elo E606323
-
Elo E134699 WebcamWebcam, ELO Elo Edge Connect 3D Camera, 3D, 1280 x 800 @ 30fps/640 x 400 @ 60fps, 0.82 ft to 4.92 ft Focus Range, Facial Recognition/Facial Authentication/Gesture Tracking, Self-Service/Access Control/Augmented Reality/Virtual Reality, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.In Stock$585.44 -
Elo E201494 WebcamWebcam, ELO Elo Edge Connect Webcam, 2D, 8 MP (3264 x 2448)/Full HD (1920 x 1080)/HD (1280 x 720)/VGA (640 x 480), 3.8 ft to 13 ft Focus Range, Facial Recognition, Self-Service/Virtual Assistant/Augmented Reality, Auto Focus, Micro USB, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.In Stock$267.67
Frequently Asked Questions
What operating systems does the Elo E606323 POS Touch Terminal support?
The Elo I-Series 3 supports multiple operating systems including Windows, Linux, and ChromeOS Flex, giving you flexibility to choose the platform that best fits your POS environment. This multi-OS compatibility makes it easy to integrate into existing systems or migrate between platforms as needed.
What are the display specifications of the Elo E606323?
The Elo E606323 features a 15.6-inch Full HD IPS touchscreen with 1920 x 1080 resolution and edge-to-edge glass design for easy cleaning. The display uses PCAP 10-touch technology for responsive, accurate input in high-traffic POS environments.
What connectivity options are available on this POS terminal?
The Elo I-Series 3 offers comprehensive connectivity including USB-C, Gigabit LAN, powered RJ50 Serial, Wi-Fi, and Bluetooth 5.2. This range of connection options ensures compatibility with various peripherals and network configurations in retail and hospitality settings.
What processor and memory does the Elo E606323 include?
This POS terminal is powered by Intel's 12th-generation processor with an Intel Core i5, paired with 8GB RAM and 128GB SSD storage. This configuration delivers reliable performance for demanding POS applications and multitasking in busy retail environments.
Is the Elo E606323 suitable for wet or dusty environments?
Yes, the Elo I-Series 3 features a fanless design with an IP54 rating, making it well-suited for environments where moisture, dust, or frequent cleaning may occur. The edge-to-edge glass touchscreen is also designed to be easy to clean without compromising durability.
What security features does the Elo E606323 offer?
The Elo I-Series 3 includes Trusted Platform Module (TPM) and Intel vPro technology, providing enterprise-grade security for sensitive payment and customer data. These features help protect your POS system against unauthorized access and ensure compliance with security standards.
