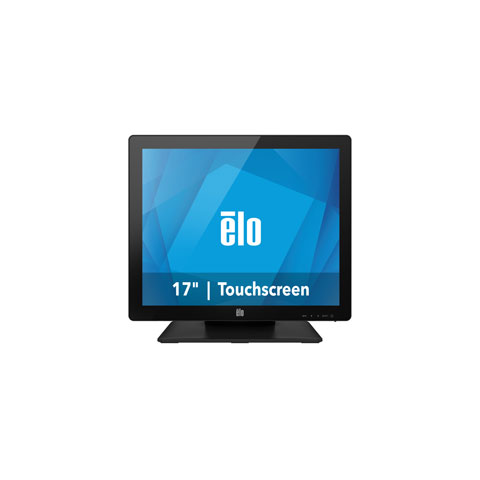

Elo E596951 Touchscreen
Full specifications (PDF)
Elo 1717L Touchscreen Model Overview
The 1717L 17-inch LED Desktop Touchmonitor is designed for heavy public use, combining a sleek appearance with advanced touch technology. Its rugged, modern form factor makes it an ideal solution for high-traffic environments such as retail outlets and hospitality settings. Equipped with options like AccuTouch resistive and IntelliTouch surface acoustic wave, this touchmonitor not only enhances interaction but also ensures reliability and durability. Enjoy power efficiency with 40% energy savings thanks to LED technology while benefiting from a standard three-year warranty.
Key Features:
- Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
- Antiglare or Clear glass
- Black or White color options
- Built for Touch Reliability
- 40% Energy Savings using LED Technology
- Integrated cable management
- Space-saving design
- Desktop, wall or VESA mounting
Specifications:
- Model: 1717L
- Color: Black or White
- Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
- Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
- Monitor Thickness: 1.7 inches / 43 mm
- Diagonal Size: 17.0"
- Native Resolution: 1280 x 1024
- Brightness: 250 nits (LCD Panel)
- Power Consumption: 20W (Typical ON), 1.8W (Sleep), 1.4W (Off)
- Weight: 5.4 kg / 11.9 lb.
- Touch Interface: Serial (RS232) and USB
- Warranty: 3 years standard
Recommended Accessories
Category
- Pos Workstation Accessories (1)
- Touchscreen Accessories (8)
Recommended Accessories for Model: Elo E596951 Touchscreen
Top Pos Workstation Accessories Purchased With Elo E596951
-
$18.56
Top Touchscreen Accessories Purchased With Elo E596951
-
$79.00
-
Elo E005277 AccessoryPower Systems & Supplies, ELO, Power Brick (12V, 4,16A, 50W, US), For the 1517L/1739L/1729L/1939L/2244LIn Stock$67.67 -
Elo E500356 AccessoryCard Reader, ELO, Magnetic Stripe Reader for 1517L and 1717L, Color: BlackItem on backorder — chat for lead time$99.41
Frequently Asked Questions
What touch technology does the Elo E596951 touchscreen use?
The Elo E596951 features projected capacitive 10-touch technology, which provides responsive multi-touch capability ideal for retail and public-facing applications. This technology is designed to deliver reliable performance in high-use environments where durability and accuracy are essential.
What video interface does the Elo 1717L touchmonitor support?
The Elo E596951 includes a VGA video interface for display connectivity. The monitor also features both USB and RS232 controller options, giving you flexibility in how you integrate it with your point-of-sale or information systems.
Is the Elo E596951 suitable for retail point-of-sale applications?
Yes, the Elo E596951 is specifically designed for retail-focused applications including point-of-sale, point-of-information, and point-of-service environments. Its modern, thin design and zero-bezel construction make it an attractive solution for countertop and shelf-level interactive digital signage and loyalty systems in high-use public venues.
What are the display specifications of the Elo 1717L?
The Elo E596951 is a 17-inch LCD touchmonitor with LED backlight technology and an anti-glare surface. The zero-bezel design provides a clean, professional appearance while maximizing usable display area for customer-facing applications.
What makes the Elo E596951 suitable for continuous public use?
The Elo E596951 is built with a rugged "built for touch" design that is engineered to withstand the demands of continuous public use. Its durable construction makes it well-suited for high-traffic retail and hospitality environments where reliability and longevity are critical.
What color and connectivity options are available for the Elo E596951?
The Elo E596951 is available in black and comes equipped with USB and RS232 controller connectivity options. We offer this touchmonitor as part of our comprehensive AIDC product lineup—contact us today for availability and pricing information.
