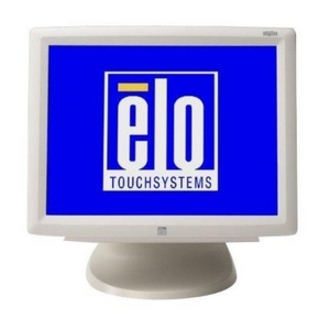

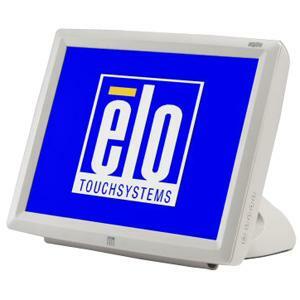

Elo E587776 Touchscreen

The Elo E587776 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo Entuitive 1529L - Elo 3000 Series 1529L Touch Screen Monitor - 15" - 5-wire Resistive - Beige
  • The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 400:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 280 Nit brightness
Read More

Need a different version? See all Elo Entuitive 1529L Touchscreens

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Elo E587776 Touchscreen
Elo E587776 Touchscreen
Elo E587776 Touchscreen
Elo E587776 Touchscreen
Elo E587776 Touchscreen Elo E587776 Touchscreen Elo E587776 Touchscreen Elo E587776 Touchscreen
Full specifications (PDF)
Elo Entuitive 1529L Touchscreen Model Overview
The Elo Entuitive 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a stable tilt base that is removable or reversible for wall mounting, a VESA mounting option, connectivity incorporated within the monitor, reducing the number of power bricks and communication cables, and side controls with lockout for public use. Elo's Entuitive 1529L touchmonitor offers a wide range connectivity, including serial and USB, and a choice of IntelliTouch surface wave, AccuTouch five-wire resistive or CarrollTouch infrared touch technologies. Also available is the Entuitive 1529L TouchComputer, a silent, fanless integrated all-in-one touchcomputer within the footprint of a 15" LCD monitor.
Elo E587776 Touchscreen Overview

Elo's 1529L touch screen monitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with Elo's newest, breakthrough touch technology.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
12 ms
Aspect Ratio:
4:3
Mount Type:
Desk Mountable
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
400:1
Brightness:
280 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
USB:
Yes
Physical Characteristics
Product Color:
Beige
Height with Stand:
11.27"
Width with Stand:
13.99"
Depth with Stand:
10.44"
Weight (Approximate):
14.44 lb
Miscellaneous
Additional Information:
  • Two watt/channel speakers located in display head
  • OSD lockouts for power and user controls
  • Short stand
Platform Supported:
  • PC
  • Mac
Item Numbers
GTIN: 4025125015490, 7411493009266
EAN: 4025125015490, 7411493009266
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E587776 Touchscreen is also known as ELO-E587776 or E587776.
