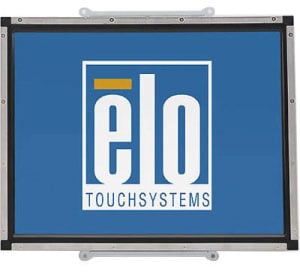

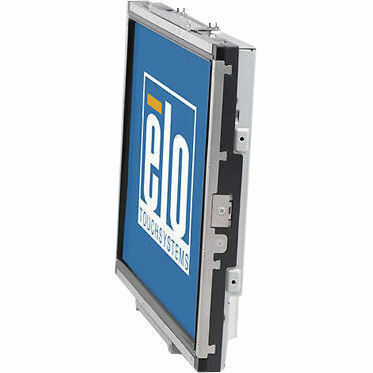

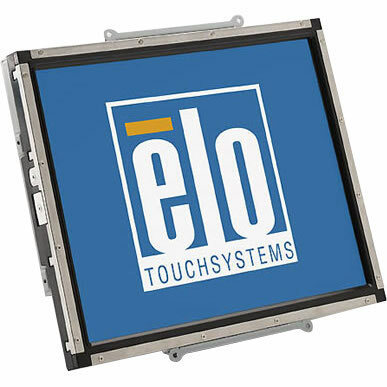

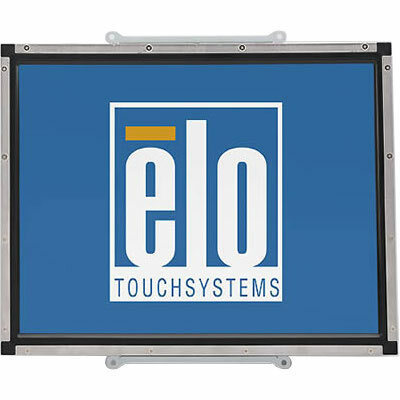

Elo 1739L - 17 INCH LCD, OPEN FRAME, INTELLITOUCH PLUS, USB CONTROLLER
17" Flat Panel Vertical Mount Touch Monitor in Steel

The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Features: Water Proof
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1739L
  • Product Name: 1739L 17-Inch Open-Frame Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 12"
  • Width: 14.5"
  • Depth: 1.9"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 8.82 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Video

  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Other

  • Platform Supported:
    • Mac
    • Sun
    • PC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: IntelliTouch Surface Wave

Power Description

  • Operating Power Consumption: 30 W

Full specifications (PDF)
