Full specifications (PDF)
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0
Elo E574316 POS Touch Terminal
Part Number:
E574316
Model:
Pay 22"

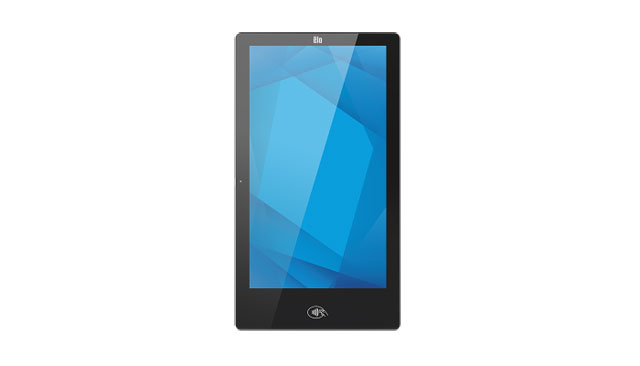

Elo Pay 22" POS Touch Terminal Model Overview
Elo Pay 22" is an innovative integrated payment solution designed to streamline transactions effortlessly. Featuring a 22-inch FHD touch display, this versatile self-service platform supports various applications, from self-ordering to customer check-ins. Operating on Android 12 with a powerful Qualcomm SD660 processor, it allows for seamless integration and instant deployment, removing the need for complex payment certifications. With built-in NFC technology, contactless payments are easier than ever, transforming customer and employee interactions through cutting-edge technology.
Key features:
Specifications:
Key features:
- Seamless Transactions: Integrated NFC for contactless payments.
- User-Friendly Display: 22-inch FHD touch screen.
- Enterprise-Grade Support: Regular security updates and simplified management.
- Universal Mounting Options: VESA mount compatibility for various stands and installations.
- Effortless Provisioning: Manage easily via EloView or preferred management tools.
Specifications:
- Enclosure Color: Black
- Diagonal Size: 21.5" / 546.10mm
- Resolution: 1920 x 1080 @ 60Hz
- Touch Technology: TouchPro® PCAP (up to 10 touches)
- Operating System: Android 12
- Processor: Qualcomm Snapdragon SDA660
- Memory: 4GB
- Storage: 64GB
- Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
- Camera: 8MP, 1920x1080 resolution
- Power Consumption: 19.8W (On), 0.4W (Off)
- Weight: 9.1 lbs / 4.1 kg
- Operating Temperature: 32°F to 104°F / 0°C to 40°C
- Humidity: 20%-80% operating
- Warranty: 2 years standard
Elo E574316 POS Touch Terminal Overview

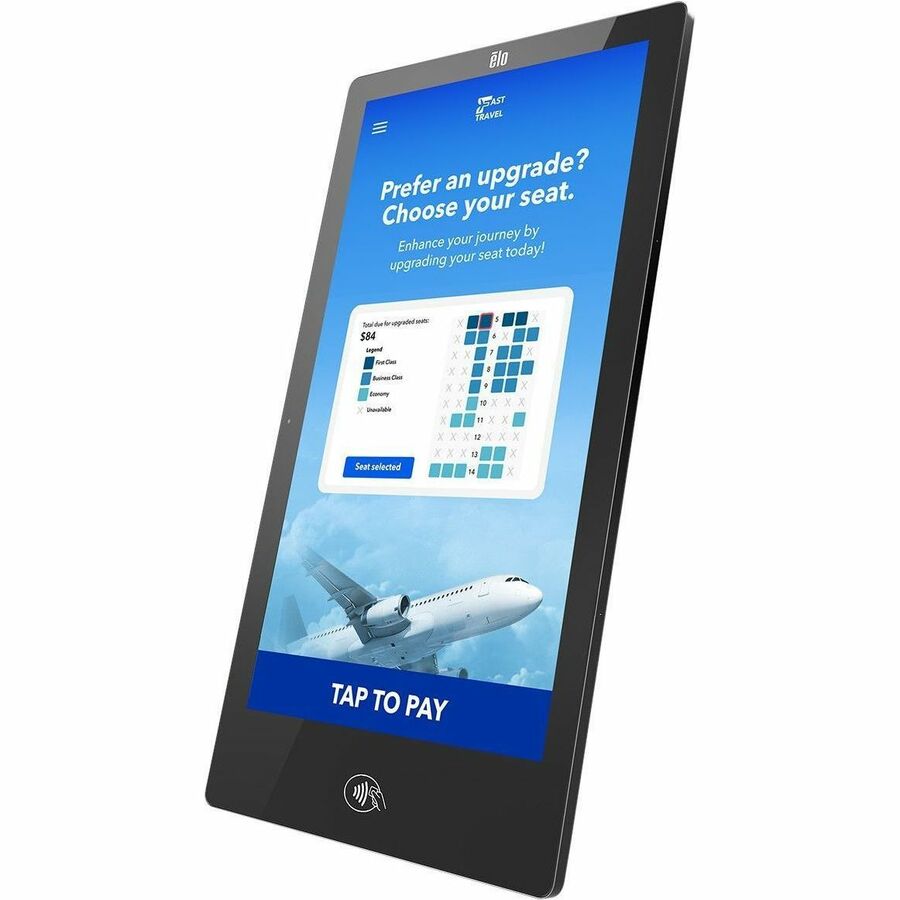

Accept contactless payments with ease
Discover seamless transactions with our Elo Pay 22" integrated payment solution based on the I-Series 4. The user-friendly self-service platform features a FHD touch display, built-in NFC for contactless payment, Android 12 OS, and Qualcomm SD660 processor.
Big & brilliant 22-inch display.
Elevate your customers' payment experience with the Elo Pay 22-inch touchscreen display. Designed for maximum visibility and effortless interaction, transform every transaction into a smooth and engaging encounter.
Create a custom self-service kiosk.
From self-order and ticketing to customer check-in and more, deploying kiosks has never been easier. Pair the Elo Pay 22" with a variety of stands, including the popular Wallaby Pro to create the self serve solution your business needs.
Technical Information
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Snapdragon
Processor Core:
Octa-core (8 Core)
Processor Model:
SDA660
Memory
Standard Memory:
4 GB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Storage
Flash Memory Capacity:
64 GB
Display & Graphics
Screen Size:
22"
Active Display Size (Horizontal):
18.74"
Active Display Size (Vertical):
10.54"
Display Screen Type:
LED
Screen Mode:
Full HD
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touch Points:
10
Aspect Ratio:
16:9
Contrast Ratio:
1,000:1
Response Time:
14 ms
Color Supported:
16.7 Million Colors
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Number of Micro USB 2.0 Ports:
3
Number of USB Type A 3.0 Ports:
1
Number of USB Type C Ports:
1
Built-in Devices
Webcam Frame Rate:
1920 x 1080 @ 30 fps
Number of Speakers:
2
Speaker Power:
800 mW
Software
Operating System:
Android 12
Power Description
Power Source:
- DC Power
- AC Power
Physical Characteristics
Color Family:
Black
Product Color:
Black
Mount Type:
- Pole Mountable
- Wall Mountable
Height:
1.2"
Width:
23.1"
Depth:
12.8"
Weight (Approximate):
9.10 lb
Miscellaneous
Package Contents:
- Elo Pay 22"
- North American Power Cable
- European Power Cable
- 1x Power Brick
- Quick Install Guide
- Screws for cable cover door (located in the power/Ethernet bay)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0843173158945
UPC:
843173158945
EAN:
0843173158945
UNSPSC:
43211505
Recommended Accessories
Category
- 2D Barcode Scanner (2)
- Best Barcode Scanner (2)
- Elo Point of Sale System (1)
- Mounting Hardware and Stands (2)
- Pos Workstation Accessories (6)
- Power Device (1)
- Spare Parts (3)
- Touchscreen Accessories (9)
- Webcams (2)
Recommended Accessories for Model: Elo E574316 POS Touch Terminal
Top 2D Barcode Scanner Purchased With Elo E574316
-
Elo E384627 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$401.40 -
Elo E245047 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$293.33
Top Best Barcode Scanner Purchased With Elo E574316
-
Elo E384627 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Performance Model, Zebra SE4720 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$401.40
-
Elo E245047 Barcode ScannerBarcode Scanner, Elo Edge Connect, 2D Barcode Scanner, Value Model, Zebra SE4107 Scan Engine, Compatible With Various ELO TouchscreensIn Stock$293.33
Top Elo Point of Sale System Purchased With Elo E574316
-
Elo E134286 AccessorySpare Part, ELO, ELO Edge Connect Fingerprint ScannerItem on backorder — chat for lead time$296.24
Top Mounting Hardware and Stands Purchased With Elo E574316
-
Elo E421137 Mounting Hardware and StandsMounting Hardware & Stands, Elo, Wallaby Self-Service Countertop Stand, Compatible with 15" or 22" Android I-Series 4 and Epson or Star PrintersIn Stock$588.37 -
Elo E421325 Mounting Hardware and StandsMounting Hardware & Stands, Elo, Wallaby Self-Service Floor Stand top, Compatible with 15" or 22" Android I-Series 4 and Epson or Star Printers (Note: Complete Self-Service Floor Stand Requires Floor Base (Part# E797162) Sold Separately)In Stock$1,033.09
Top Pos Workstation Accessories Purchased With Elo E574316
-
$39.10 -
Elo E514693 POS Touch TerminalMounting Hardware & Stands, ELO, Slim Self Service Countertop Stand with Support for 15-Inch to 22-Inch I-SeriesItem on backorder — chat for lead time$330.83 -
Elo E514881 POS Touch TerminalMounting Hardware & Stands, ELO, Slim Self Service Floor Stand Top with Support for 15-Inch to 22-Inch I-Series, Requires Floor Stand Base (Part# E515260) for Complete Self-Service Floor StandIn Stock$781.96
Top Power Device Purchased With Elo E574316
-
Elo E512363 Power DevicePower Systems & Supplies, ELO, MTO, NCNR, I-Series For Android (2/3/4) Replacement Power Cable KitItem on backorder — chat for lead time$34.82
Top Spare Parts Purchased With Elo E574316
-
Elo E809509 Spare PartsSpare Parts, Android Expansion Module, Must Use Included Power Brick, Optional I-Series Flip Stand Mounting Option (Part# E924077). Compatible with I-Series 4.In Stock$440.60 -
Elo E413579 Spare PartsSpare Parts, ELO, 90W Power Brick and Cable Kit Replacement, for I-Series for Android 4Item on backorder — chat for lead time$101.13 -
Elo E644767 Spare PartsSpare Parts, Elo, Edge Connect Status Light, Micro USB, RGB LED lights offer various color illuminationIn Stock$82.70
Top Touchscreen Accessories Purchased With Elo E574316
-
Elo E001002 AccessoryCard Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X SeriesIn Stock$172.73 -
Elo E047663 AccessoryMounting Hardware & Stands, ELO, Accessory 12-Inch Pole Mount Kit for I-Series and M-SeriesIn Stock$207.51 -
Elo E047864 AccessoryMounting Hardware & Stands, ELO, Bolt Down 18-Inch Pole Mount Kit for I-Series and M-Series MonitorsItem on backorder — chat for lead time$237.60
Top Webcams Purchased With Elo E574316
-
Elo E134699 WebcamWebcam, ELO Elo Edge Connect 3D Camera, 3D, 1280 x 800 @ 30fps/640 x 400 @ 60fps, 0.82 ft to 4.92 ft Focus Range, Facial Recognition/Facial Authentication/Gesture Tracking, Self-Service/Access Control/Augmented Reality/Virtual Reality, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.In Stock$545.70 -
Elo E201494 WebcamWebcam, ELO Elo Edge Connect Webcam, 2D, 8 MP (3264 x 2448)/Full HD (1920 x 1080)/HD (1280 x 720)/VGA (640 x 480), 3.8 ft to 13 ft Focus Range, Facial Recognition, Self-Service/Virtual Assistant/Augmented Reality, Auto Focus, Micro USB, Black, Box Includes 2 Mounting Screws, 2 Mylar Screw Covers, Quick Install Guide.In Stock$248.11
Frequently Asked Questions
What operating system does the Elo E574316 POS Touch Terminal run?
The Elo E574316 runs Android 12 with Google Mobile Services (GMS), providing a familiar and secure platform for retail and self-service applications. This OS enables seamless integration with modern payment systems and enterprise management tools like EloView.
Does the Elo Pay 22" support contactless payments?
Yes, the Elo E574316 features integrated NFC technology that makes it easy to accept contactless payments without requiring complex payment certifications. This built-in capability simplifies deployment and enables immediate integration into your payment workflows.
What are the display specifications for the Elo E574316?
The Elo Pay 22" features a Full HD (FHD) touch display with a resolution of 1920 x 1080 pixels, delivering crisp visuals for self-order, ticketing, customer check-in, and other interactive applications. The responsive touch interface is designed for high-traffic retail and hospitality environments.
What processor and memory does this POS terminal include?
The Elo E574316 is powered by a Qualcomm SD660 Octa-Core processor paired with 4GB of RAM and 64GB of internal flash storage. This configuration provides reliable performance for multi-tasking POS operations and self-service kiosk deployments.
Can the Elo Pay 22" be mounted on different stands and wall configurations?
Yes, the Elo E574316 features a universal VESA mount that allows it to be deployed on a variety of stands, pole mounts, and wall mounts, including the popular Wallaby Pro stand. This flexibility lets you customize your self-service solution to fit your specific business layout and needs.
What enterprise management and support features are included?
The Elo E574316 offers enterprise-grade support including security updates, seamless provisioning, Elo Home, and OEMConfig compatibility for centralized device management. It is fully compatible with EloView and other preferred management tools, ensuring simplified deployment and ongoing support across your terminal fleet.
