Elo E567145 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E263686 Touchscreen.

Elo 2400LM - Elo 2400LM 24" LCD Touchscreen Monitor - 16:10 - 5 ms - 24" Class - 5-wire Resistive - 1920 x 1200 - WUXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - Speakers - DVI - USB - VGA - White - WEEE, RoHS - 3 Year

The WUXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
WUXGA LED with 1920x1200 resolution to view two A4 pages side-by-side
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
LED backlight technology provides for industry-leading low power consumption and less hazardous materials
Enjoy crisp content and energetic hues with the 250 Nit brightness
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 2400LM Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

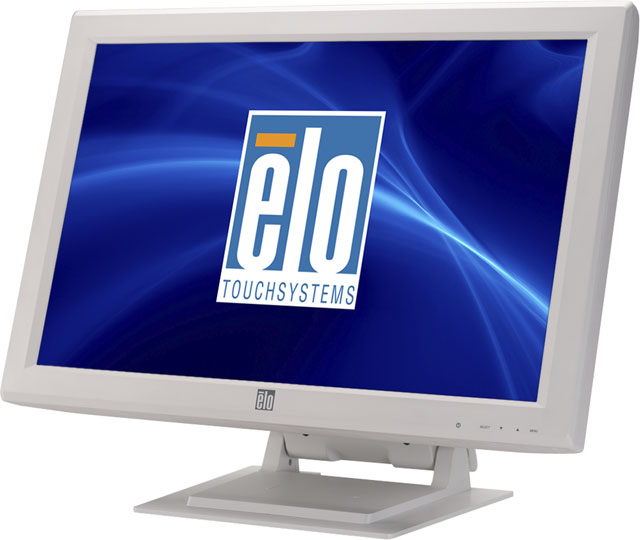

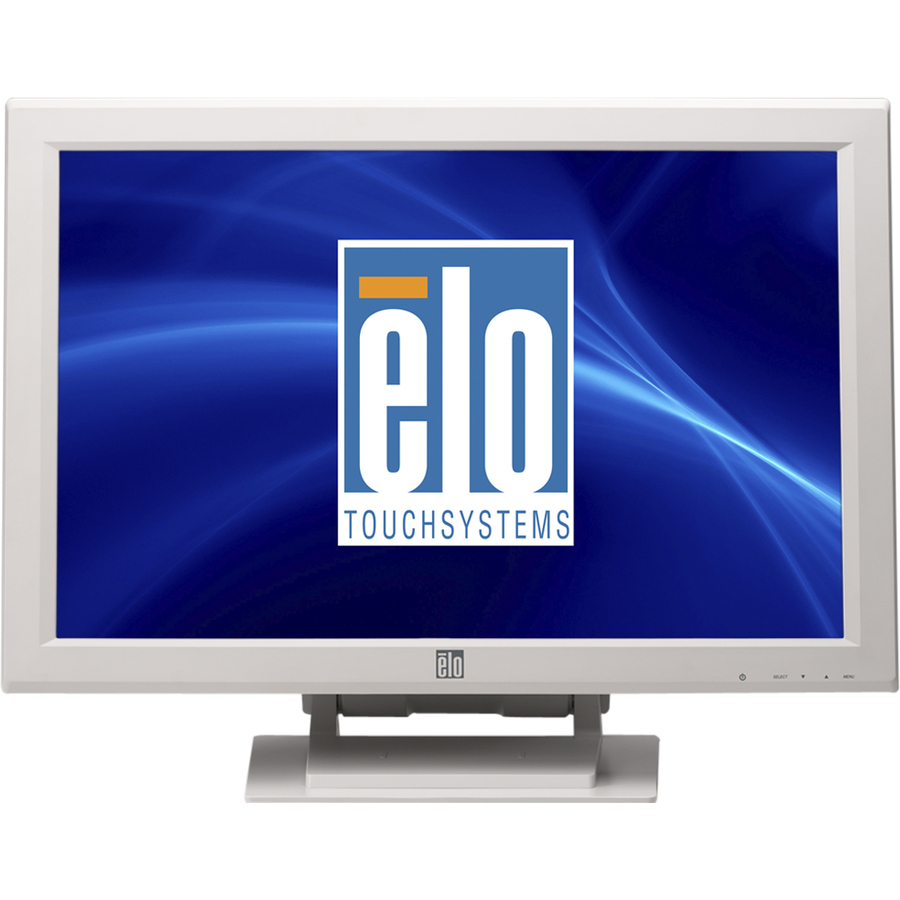

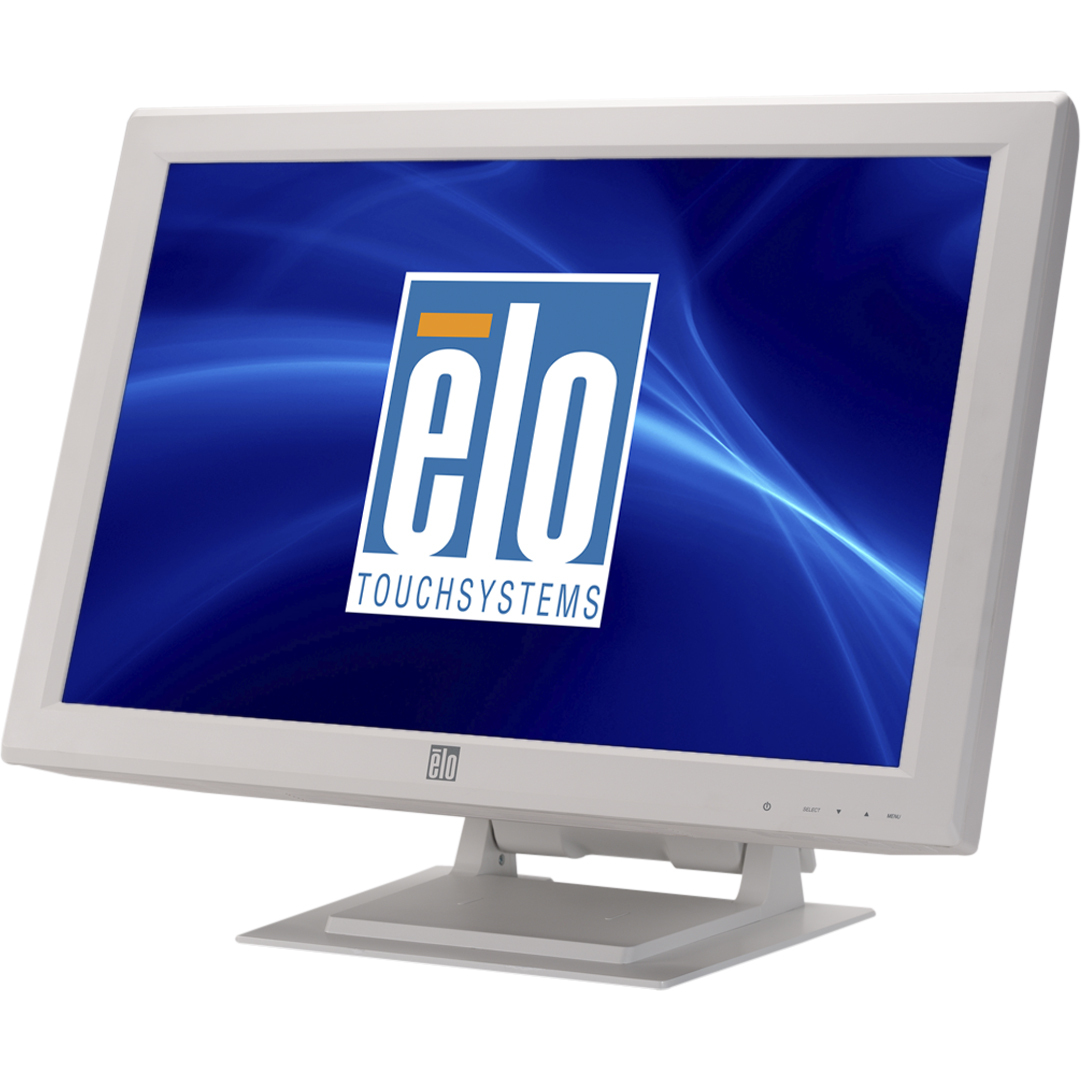

Elo 2400LM Touchscreen Model Overview

The ELO 2400LM 24" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

Elo E567145 Touchscreen Overview

The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies - IntelliTouch surface acoustic wave and AccuTouch five-wire resistive-in addition to a combination touch controller, DVI, VGA and built-in speakers, available in white or gray color. The 2400LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN 60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 2400LM meets RoHS compliance. As a result the 2400LM is an excellent fit for a wide variety of settings, including healthcare.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

24"

Viewable Screen Size:

24"

Screen Mode:

WUXGA

Screen Surface:

Anti-glare

Response Time:

5 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

160°

Vertical Viewing Angle:

160°

Display Orientation:

Landscape

Mount Type:

Rear Mount

Backlight Technology:

LED

Features:

Security Lock

Video

Maximum Resolution:

1920 x 1200

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

50 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

White

Weight (Approximate):

21.61 lb

Weight with Stand (Approximate):

27.78 lb

Miscellaneous

Package Contents:

2400LM 24-Inch Desktop Touchmonitor For Medical And Healthcare Settings
Detachable Touch Cable
Video Cables
Power Cable

Certifications & Standards:

CB
CCC
IMERC
UL/cUL
FCC
CE
VCCI
C-Tick (Class B)
IEC60601-1 (3rd Edition)
EN 60950-1
EN 55011
EN 55024
EN 61000-3-3
EN 60601-1-2

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493315244

EAN: 7411493315244

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E567145 Touchscreen is also known as ELO-E567145 or E567145.
