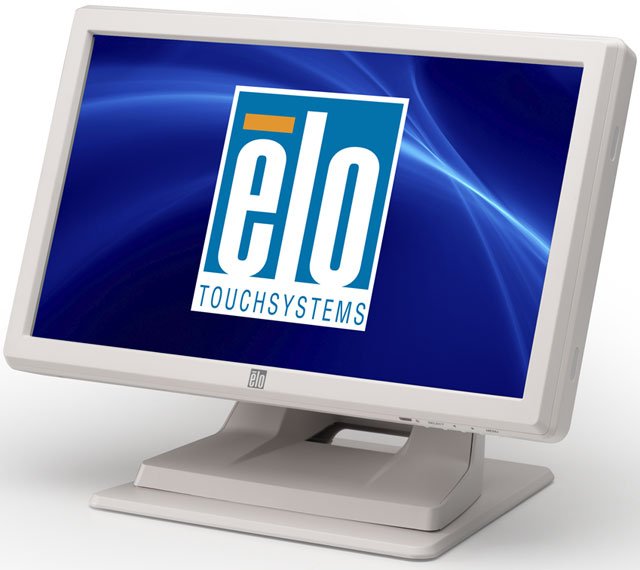

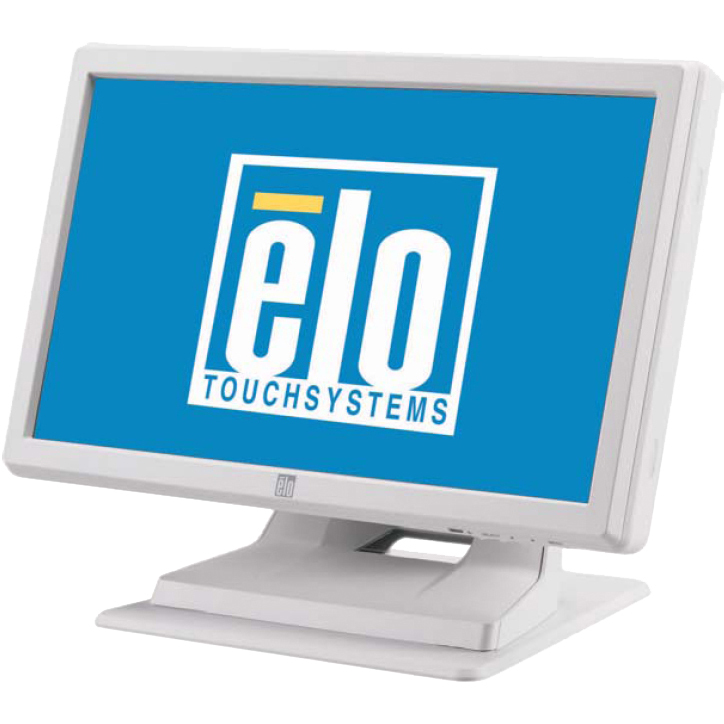

Elo E561587 Touchscreen

Part Number: E561587
Model: 1519LM
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Viewable Screen Size
15.6"
Screen Mode
WXGA
Screen Surface
Anti-glare
Response Time
8 ms

Product Description:

  Elo 1519LM 15.6" LCD Touchscreen Monitor - 16:9 - 8 ms - Surface Acoustic Wave - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 225 Nit - Speakers - DVI - USB - VGA - White - RoHS - 3 Year
Explore all Elo 1519LM Touchscreens
Add to Quote
Elo E561587 Touchscreen
Elo E561587 Touchscreen
Elo E561587 Touchscreen
Elo E561587 Touchscreen Elo E561587 Touchscreen Elo E561587 Touchscreen
Full specifications (PDF)

Elo 1519LM Touchscreen Model Overview

The ELO 1519LM 15" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 1519LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
Elo E561587 Touchscreen Overview

The fully featured 1519LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

Full specifications (PDF)
Technical Information
Viewable Screen Size:
15.6"
Screen Mode:
WXGA
Screen Surface:
Anti-glare
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
90°
Vertical Viewing Angle:
65°
Adjustable Display Angle:
Yes
Mount Type:
Arm-mountable
Features:
Security Lock
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
225 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Headphone:
Yes
Serial Port:
Yes
Power Description
Operating Power Consumption:
18.40 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
White
Height:
13"
Height with Stand:
12.20"
Width with Stand:
13.80"
Depth with Stand:
6.90"
Weight (Approximate):
11.46 lb
Miscellaneous
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E561587 Touchscreen is also known as ELO-E561587 or E561587.
