Elo E554632 Touchscreen

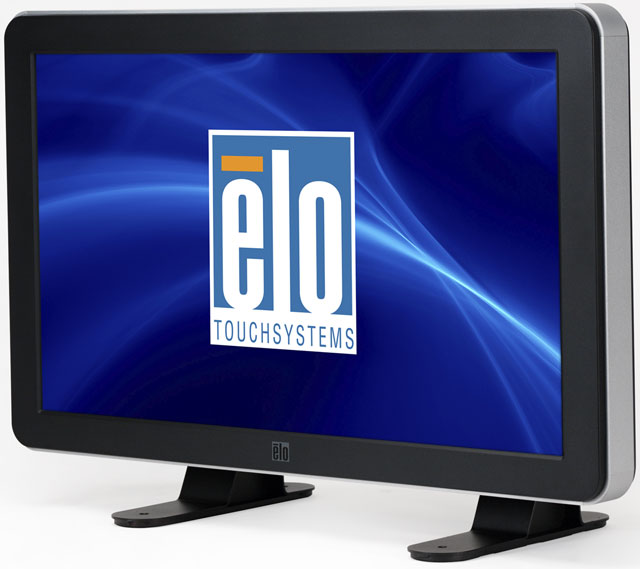

Elo 3200L - 32-Inch Interactive Digital Signage Display (APR Touch Technology, USB Interface, Anti-glare Surface Treatment)
Pure-glass display surface delivers excellent imagery with high light transmissions

The ELO 3200L 32 inch Interactive Digital Signage (IDS) touch display is more than a television and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The 3200L's large-format, professional display is not only attractive, but rugged enough to withstand the constant use inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and health care. Built to last in public access environments, unlike typical consumer televisions or displays, the ELO 3200L offers a long life and a rich digital signage experience.

Technical Information

  • HDCP Supported: Yes
  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Screen Mode: HD 720
  • Mount Type: Wall Mountable
  • Screen Size: 32"
  • Aspect Ratio: 16:9
  • Response Time: 20 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 3200L
  • Product Name: 3200L LCD Touchscreen Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 600 x 200
  • Height: 19.2"
  • Width: 31.4"
  • Depth: 5.4"
  • Weight (Approximate): 46.30 lb


  • USB: Yes
  • HDMI: Yes
  • VGA: Yes
  • Headphone: Yes


  • Standard Refresh Rate: 60 Hz
  • Brightness: 450 Nit
  • Color Supported: 16.7 Million Colors (24-bit)
  • Maximum Resolution: 1366 x 768
  • Contrast Ratio: 3,500:1

Power Description

  • Operating Power Consumption: 111 W
  • Standby Power Consumption: 12 W
  • Off-Mode Power Consumption: 11.50 W

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave


  • Speakers: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 3200L
Touch Technology Acoustic Pulse Recognition
Screen Size 32
Display Type LCD
Form Factor Wall Mount
Color Black
Interface USB
