Elo E521480 Touchscreen

The Elo E521480 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

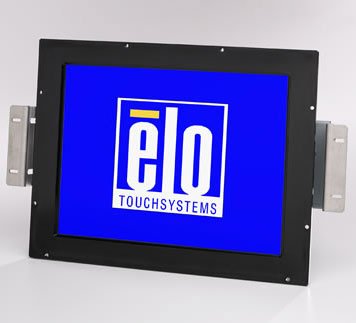

Elo Entuitive 1547L - Elo 1547L Touchscreen LCD Monitor - 15" - 5-wire Resistive - 1024 x 768 - 4:3 - Black
  • The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 400:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 350 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More
Discontinued Need Assistance?
Add to Quote
Elo Entuitive 1547L Touchscreen Model Overview
The Elo Entuitive 1547L ThruTouch model is optimized to operate through customer supplied non-metallic materials, such as a store window or vandal-resistant materials up to 18 mm thick. This allows the Entuitive 1547L to have unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications. Oversized glass may also be used to create a true flat front surface, eliminating the recessed touch surface and bezel typically found in other systems, which can create a trap for dirt and liquids. This makes the Elo Entuitive 1547L ideal for ticketing machines and other outdoor systems as well as tabletop and bartop applications. Furthermore, the sensing technology is unaffected by moisture, heat, rain, snow and ice, operates even with gloves, and is completely unaffected by spills and dirt or harsh cleaning fluids.
Elo E521480 Touchscreen Overview

The 1547L is available with Elo touch technology, which enables touches to be sensed through a protective layer in front of the display, as well as unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
17 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
150°
Vertical Viewing Angle:
125°
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
400:1
Brightness:
350 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Product Color:
Black
Height:
11.6"
Width:
18.1"
Depth:
2.8"
Miscellaneous
Package Contents:
  • 1547L Touchscreen LCD Monitor
  • All Detachable Touch/Video Cables
  • Power cable
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E521480 Touchscreen is also known as ELO-E521480 or E521480.
