Elo E518492 Touchscreen

Elo E523163 Touchscreen A newer version of this item is available.
It is replaced by the Elo E523163 Touchscreen.
Elo 1522L - Elo 3000 Series 1522L Touch Screen Monitor - 15" - 5-wire Resistive - 1024 x 768 - Dark Gray
  • Experience an energetic display of colors, contrast and pictures with the xga lcd touchscreen monitor
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 200 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

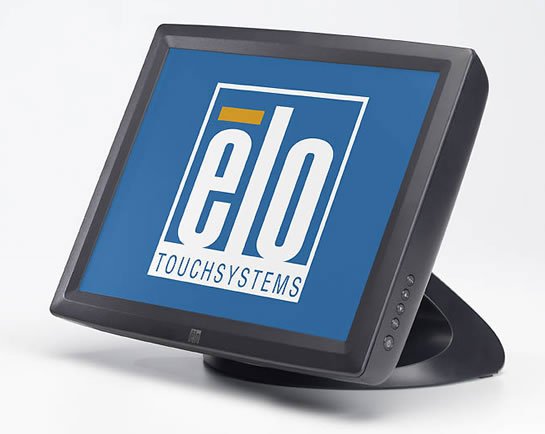

Elo 1522L Touchscreen Model Overview
Elo's 15" 1522L Multifunction LCD Desktop Touchmonitor is a retail terminal designed to present information to the operator and the customer. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications.
Elo E518492 Touchscreen Overview

The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
12 ms
Mount Type:
Desk Mountable
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
500:1
Brightness:
200 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
Physical Characteristics
Product Color:
Dark Gray
Height with Stand:
11.27"
Width with Stand:
13.99"
Depth with Stand:
10.99"
Weight with Stand (Approximate):
14.32 lb
Miscellaneous
Platform Supported:
  • PC
  • Mac
Item Numbers
GTIN: 0132017910314, 7411493006678
UPC: 132017910314
EAN: 0132017910314, 7411493006678
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E518492 Touchscreen is also known as ELO-E518492 or E518492.
