Full specifications (PDF)
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0
Elo E511713 POS System
Part Number:
E511713
Model:
EloPOS Pack

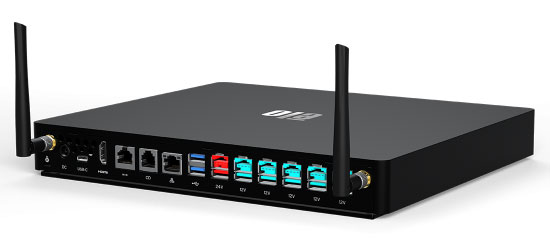

Elo EloPOS Pack POS System Model Overview
Delivering a powerful enterprise-ready compute platform in a sleek, compact form factor the EloPOS Pack is backed by the security and infrastructure of a Windows-based system with Intel's Q370 Chipset and the speed of Intel's 8th gen processors; the EloPOS Pack provides the power you need to run your business. Designed with versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. Provide the flexibility to make upgrades as your business requirements change.
Elo E511713 POS System Overview
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system and the speed of the Intel Q370 Chipset, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change. Whether you want Windows 10 or a no-OS model to run Linux, the enterpriseready EloPOS Pack provides the freedom to adapt to your infrastructure. To get you up and running quicker, the no-OS models have been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Core i7
Processor Speed:
3.80 GHz
Processor Model:
i7-9700TE
Memory
Standard Memory:
32 GB
Memory Technology:
DDR4 SDRAM
Storage
Solid State Drive Capacity:
256 GB
Solid State Drive Interface:
M.2/SATA
Display & Graphics
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
Intel UHD Graphics 630
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
RJ-50:
Yes
Number of USB Type C Ports:
1
Power Description
Power Source:
- AC Power
- DC Power
Miscellaneous
Package Contents:
- EloPOS Pack
- North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
- EU Power Cord (1800+/-50mm),
- Power Adapter - 180W
- Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch),
- USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
- HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
- USB cable (1800+/-50mm), (6 ft +/- 1 inch)
- 2x SMA Antenna
- Quick Installation Guide (QIG)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0843173151984
UPC:
843173151984
EAN:
0843173151984
UNSPSC:
43211505
Frequently Asked Questions
What processor does the Elo E511713 POS System use?
The Elo E511713 EloPOS Pack is powered by Intel's 8th generation processors paired with Intel's Q370 Chipset, delivering the speed and performance needed for enterprise-level point-of-sale operations. This combination provides reliable compute power for running demanding retail and hospitality applications.
How much memory and storage does the Elo E511713 come with?
The Elo E511713 EloPOS Pack includes 32GB of RAM and 256GB SSD storage, providing ample capacity for multitasking and application performance in busy retail environments. This configuration supports smooth operation of multiple POS applications and data management simultaneously.
What connectivity options are available on the Elo E511713 POS System?
The Elo E511713 offers versatile connectivity options designed for modern and legacy equipment integration. It features a single cable USB-C connection for Elo's latest monitors and includes 12V powered-USB ports to support legacy peripherals like older printers, giving you flexibility to upgrade components as your business needs evolve.
Is the Elo E511713 suitable for enterprise retail environments?
Yes, the Elo E511713 EloPOS Pack is specifically designed as an enterprise-ready compute platform backed by Windows-based security and infrastructure. Its compact form factor combined with powerful processing capabilities makes it ideal for retail and hospitality businesses requiring reliable, scalable point-of-sale solutions.
Can I integrate the Elo E511713 with both new and older POS peripherals?
Absolutely. The Elo E511713 is designed with versatile connectivity to support both current and legacy equipment, featuring USB-C for modern Elo monitors and 12V powered-USB ports for older printers and devices. This flexibility allows you to maintain existing hardware investments while upgrading other components as needed.
What operating system does the Elo E511713 run?
The Elo E511713 EloPOS Pack comes with no pre-installed operating system (No OS), allowing you to deploy it with your choice of Windows-based system software. This gives you the flexibility to configure the system according to your specific retail or hospitality requirements.
The Elo E511713 POS System is also known as
ELO-E511713
or E511713.
