Elo E511214 Touchscreen

Elo 2270L - Touchscreen, Elo 2270L, 22-inch wide LCD Monitor, Full HD, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-bezel, Collapsible Stand, VGA, DP and HDMI video interface, Black, Worldwide
  • Experience an energetic display of colors, contrast and pictures with the full hd lcd touchscreen monitor
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$442.11
In Stock
Add to Quote

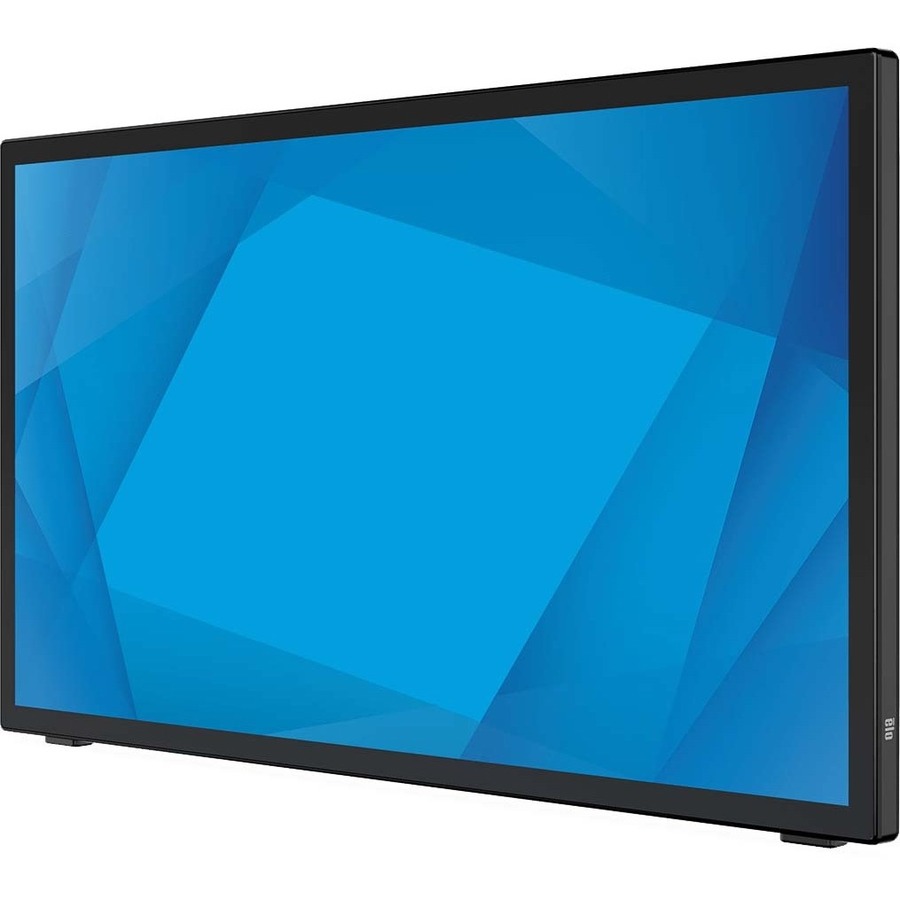

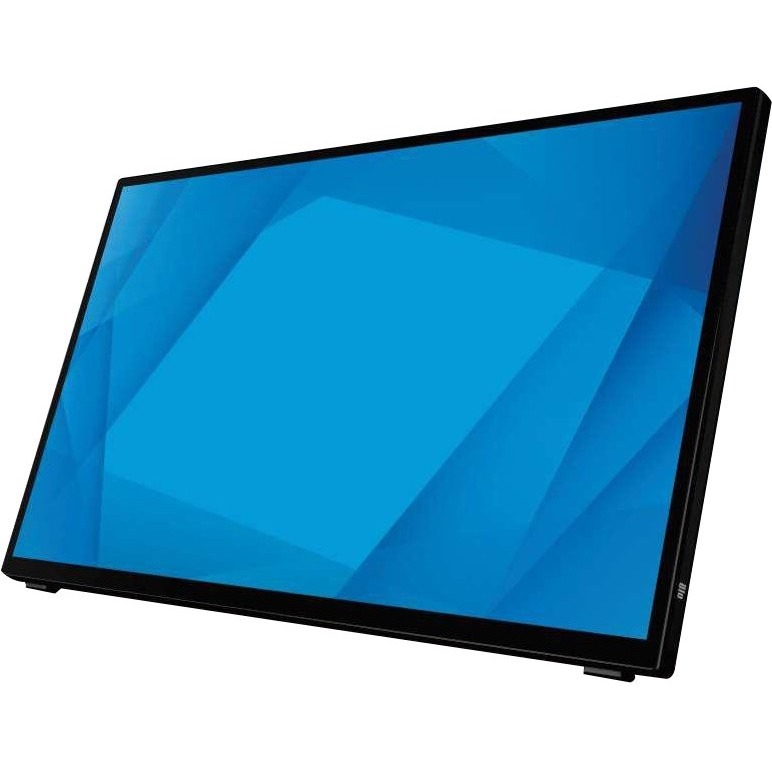

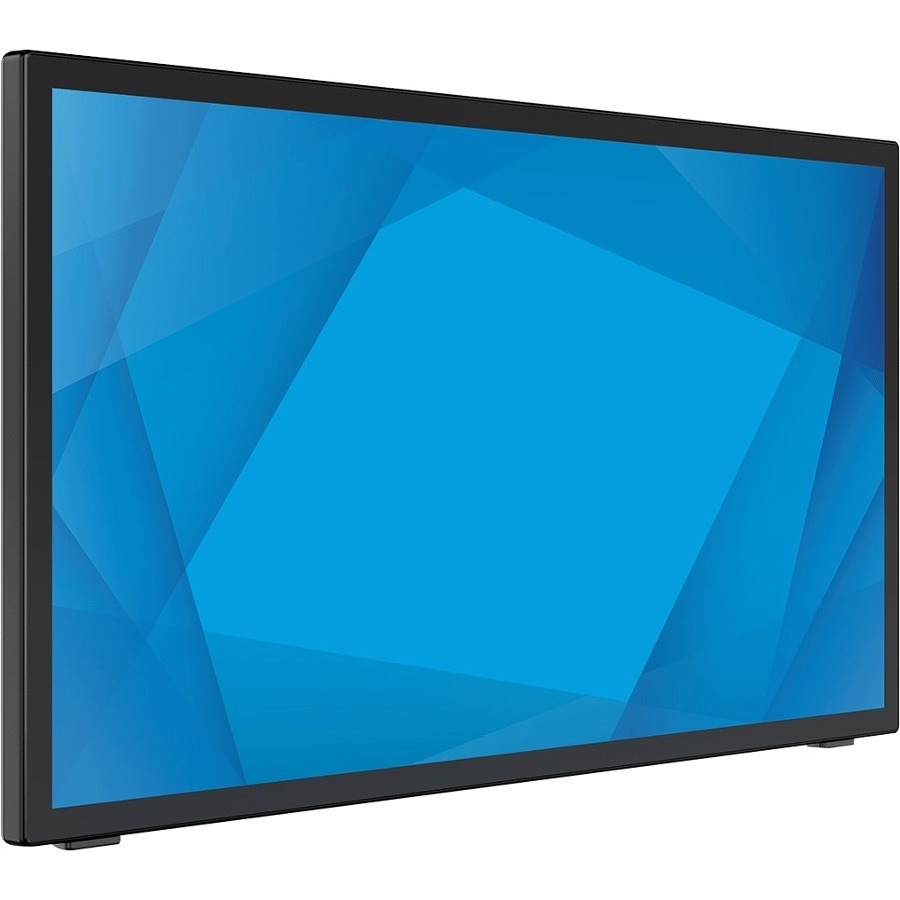

Elo 2270L Touchscreen Model Overview
The Elo 2270L 22-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2270L offers a durable, energy efficient TouchPro? PCAP touchscreen with clear or anti-glare scratch resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors. With a clean design aesthetic available in black and white and flexible mounting options, the 2270L touchscreen is well-suited for POS, interactive digital signage, self-service, document signing and more.
Elo E511214 Touchscreen Overview

The bezel just got smaller.

The 2270L 22" touchscreen offers up to a 70% reduction in the bezel compared to similar models.

Minimalistic design to fit any space.

From 20 degrees to 70 degrees, angle the display where you want it.

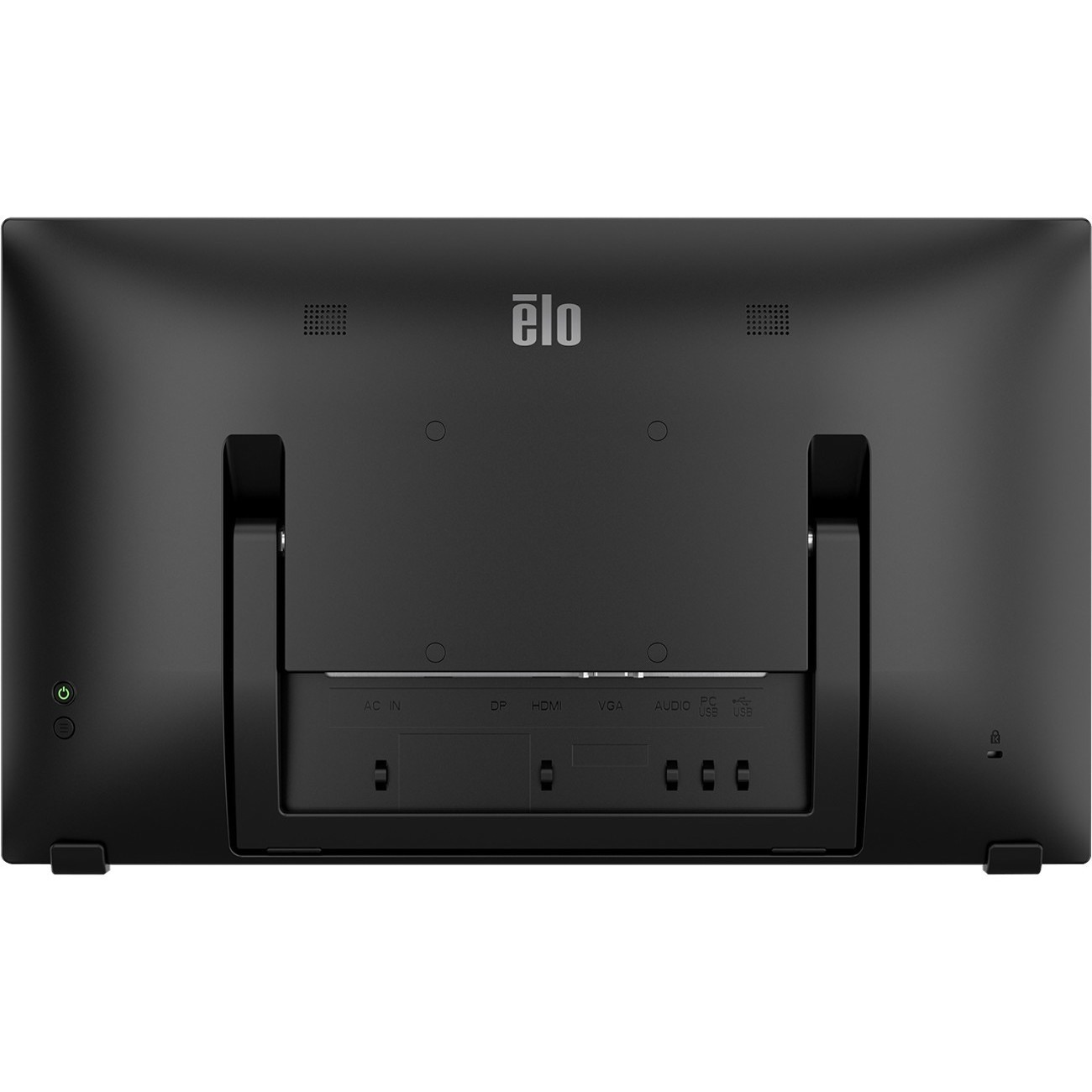

Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA compatibility.

Built-in

Speakers and integrated IO.

Durable, energy efficient touchscreen.

  • Scratch-resistant glass surface.
  • IK07 impact resistant.
  • ES8.0 certified for greater energy efficiency.

Increase viewing comfort with low blue light and flicker free features.

Navigate the OSD directly on the touchscreen.

We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
Placement:
Tabletop
Backlight Technology:
LED
Features:
  • Scratch Resistant
  • ComfortView
  • Low Blue Light
  • Flicker-free
  • On-screen Display (OSD)
  • Anti-glare
  • Power Switch
  • LED Indicator
  • OSD/Power Lock
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Impact Protection (IK) Rating:
IK07
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
11.9"
Width:
19.9"
Depth:
1.6"
Weight (Approximate):
9.04 lb
Item Numbers
GTIN: 0843173131535
UPC: 843173131535
EAN: 0843173131535
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E511214 Touchscreen is also known as ELO-E511214 or E511214.
