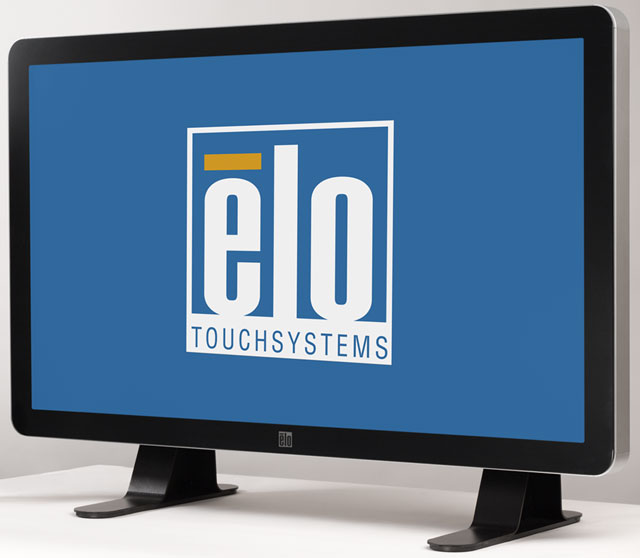

Elo E508680 Touchscreen

The Elo E508680 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 4600L - Elo 4600L 46" LCD Touchscreen Monitor - 16:9 - 16 ms - 46" Class - Surface Acoustic Wave - 1920 x 1080 - Full HD - 16.7 Million Colors - 3,500:1 - 405 Nit - Speakers - HDMI - USB - VGA - RoHS - 3 Year
  • The Full HD lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • View your content easily in well-lit areas with 405 Nit brightness
  • Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
Read More
Discontinued Need Assistance?
Add to Quote
Elo 4600L Touchscreen Model Overview
The ELO 4600L 46 inch Interactive Digital Signage (IDS) touch display is more than a television and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The 4600L's large-format, professional display is not only attractive, but rugged enough to withstand the constant use inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer televisions or displays, the ELO 4600L offers a long life and a rich digital signage experience.
Elo E508680 Touchscreen Overview

The 4600L IDS touch display is more than a media player, more than a television and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The new IDS portfolio offers a unique interactive display platform designed to enhance a customer's experience. The interactive, large-format displays are available with the innovative Elo Zero-bezel APR touch technology which combines the sensing of touch by recognizing the unique pattern of sounds with an elegant, aesthetically-pleasing seamless design. The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer televisions or displays, Elo touch solutions offer a longer life and a richer digital signage experience.

Technical Information
Screen Size Class:
46"
Viewable Screen Size:
46"
Screen Mode:
Full HD
Response Time:
16 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Wall Mountable
HDCP Supported:
Yes
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
3,500:1
Brightness:
405 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Headphone:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
234 W
Standby Power Consumption:
12.50 W
Off-Mode Power Consumption:
11.50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 400
Height:
26.1"
Width:
44.1"
Depth:
5.3"
Weight (Approximate):
82.01 lb
Miscellaneous
Certifications & Standards:
  • UL
  • cUL
  • FCC
  • CE
  • VCCI
  • IC
  • C-TICK
  • S-Mark
  • CCC
  • GOST
  • NOM
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 4923773110775, 5711045416897, 7411493195150
EAN: 4923773110775, 5711045416897, 7411493195150
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E508680 Touchscreen is also known as ELO-E508680 or E508680.
